Frameset
Frame
800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Weight
Weight
8.20 kg / 18.08 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery
SRAM eTap battery pack (with charger)

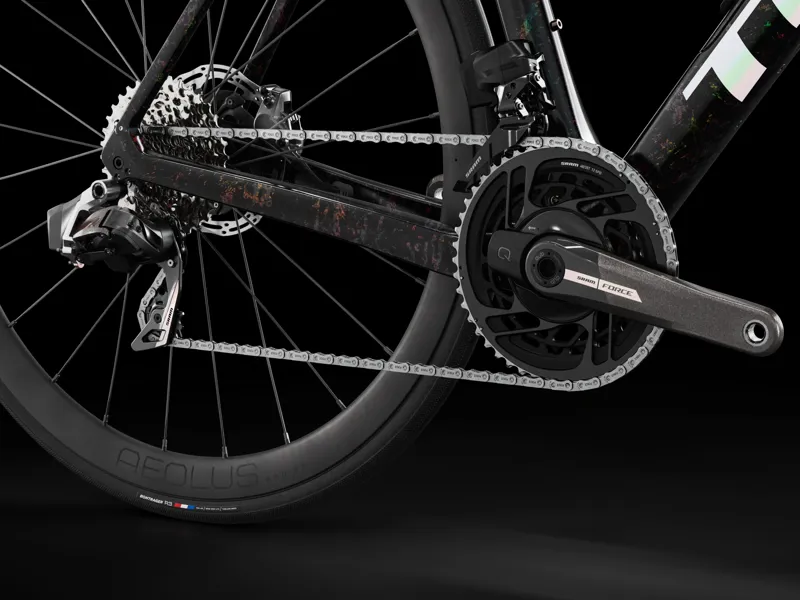

Drivetrain
Shifter
SRAM Force AXS D2, 12-speed
Front derailleur
SRAM Force AXS D2, braze-on
Rear derailleur
SRAM Force AXS D2, 36T max cog
*Crank
Size: 47
SRAM Force AXS D2 w/ power meter, 46/33, DUB, 165 mm length
Size: 50, 52
SRAM Force AXS D2 w/ power meter, 46/33, DUB, 170 mm length
Size: 54, 56
SRAM Force AXS D2 w/ power meter, 46/33, DUB, 172.5 mm length
Size: 58, 60, 62
SRAM Force AXS D2 w/ power meter, 46/33, DUB, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Chain
SRAM Force, 12-speed
Max. chainring size
1x: 48T, 2x: 52/36
Wheels
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
38mm without mudguards, 35mm with mudguards
Components
*Saddle
Size: 47, 50, 52
Verse Short Elite, hollow magnesium rails, 155 mm width
Size: 54, 56, 58, 60, 62
Verse Short Elite, hollow magnesium rails, 145 mm width
*Seatpost
Size: 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size: 58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length

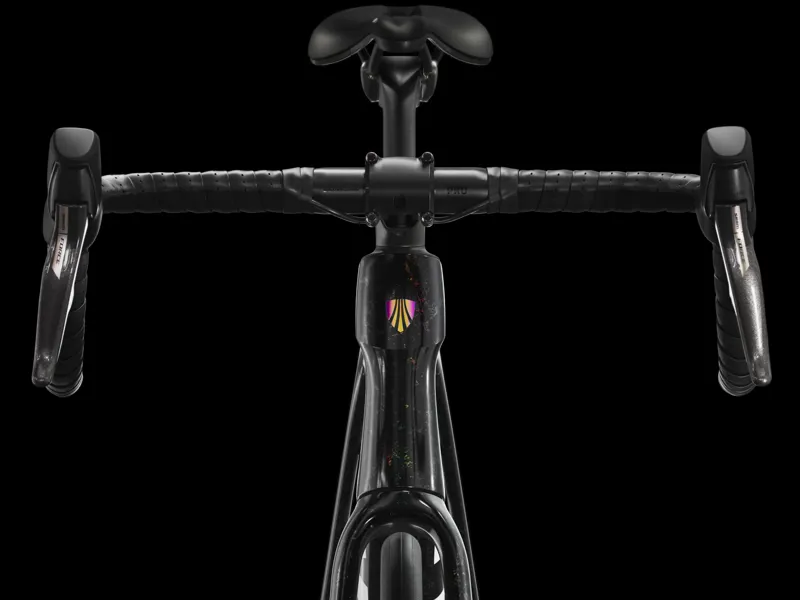

*Handlebar
Size: 47
Bontrager Pro IsoCore VR-SF, 38cm
Size: 50, 52
Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56
Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 47
Trek RCS Pro, -7-degree, 70 mm length
Size: 50
Trek RCS Pro, -7-degree, 80 mm length
Size: 52, 54
Trek RCS Pro, -7-degree, 90 mm length
Size: 56, 58
Trek RCS Pro, -7-degree, 100 mm length
Size: 60, 62
Trek RCS Pro, -7-degree, 110 mm length
Brake
SRAM Force AXS hydraulic disc
Brake rotor
SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Accessories
Bag
Bontrager BITS Internal Frame Storage Bag
