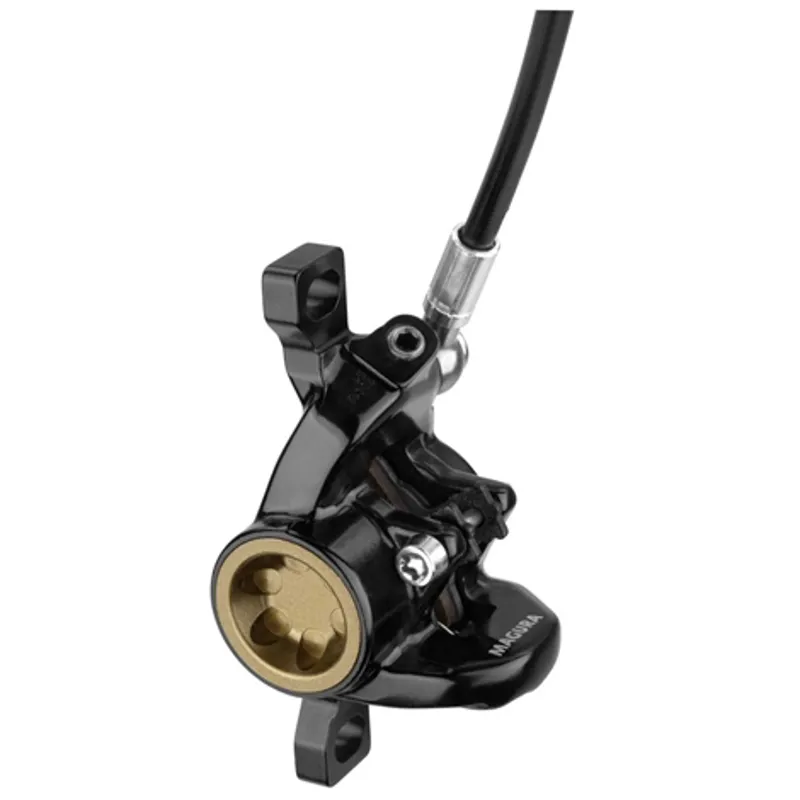

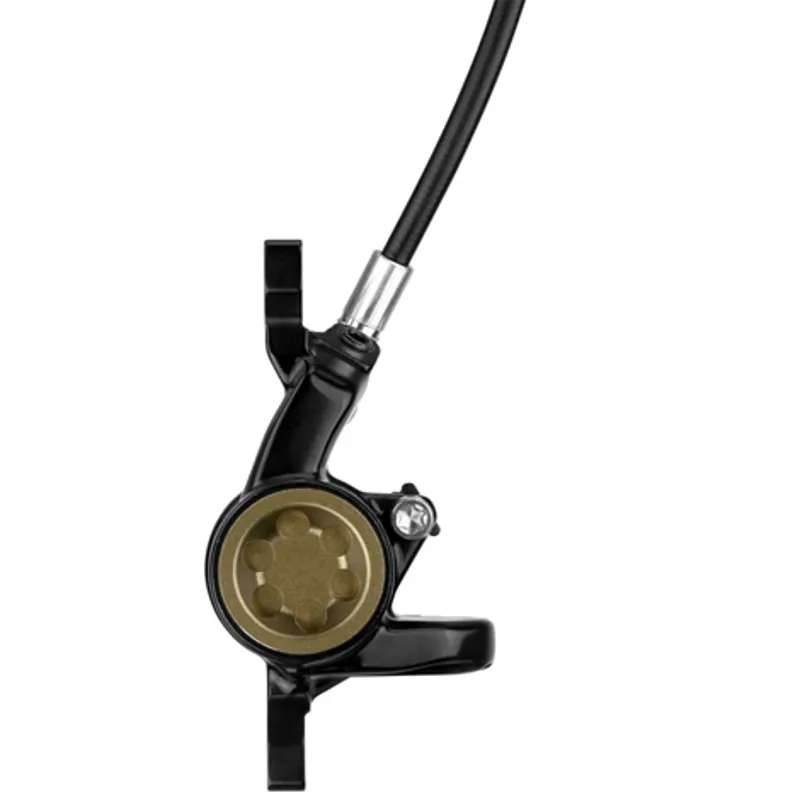

The structure of the brake lever is identical to that of the MT4, but with greater weight saving due the use of hollow pin technology. The MTS also uses the same brake caliper featured on the MT4 and MT6.The open hydraulic disc brake system with a completely integrated reservoir and EBT technology makes for superfast and convenient bleeding. The dual piston fixed calipers with automatic pad wear adjustment in a smart DAD (Double Arch Design) gives maximum stiffness and the pad wear thickness can be checked without removal of the pads.
FEATURES
Weight: 320 g (with 160 mm Storm SL-Rotor)
Technical features: Full hydraulic dual piston floating caliper
Hydraulic system: Open, with expansion chamber
Deceleration (m/s²) according to DIN 79100: 6.2 with 160 mm Storm SL rotor 6.8 with 180 mm Storm SL rotor 7,2 with 203 mm Storm SL rotor
Intern. standard mounting (IS): Yes, adaptor
Pad wear adjustment: Automatic
Disc diameter (mm): Front 203/8, 180/7, 160/6 Rear 203/8, 180/7, 160/6, 140/5 (ONLY Storm SL)
Centerlock compatible: Yes, with adaptor
Transmission medium: MAGURA Royal Blood mineral oil
Brake hose: MAGURA
Hose fitting caliper: RHR - Rotatable House Routing
Brake pads: Organic 7.1 Performance (series) 7.2 Endurance
Material fitting bolts: Steel
Brake lever and caliper: Carbotecture SL (Master), Aluminium forged (Caliper)
Lever blade: Aluminium
Reach adjust: Yes
OPD (caliper in one-piece design): Yes
BAT (bite point adjuster): No, optional MT4-lever blade with BAT
Dual Docking for trigger shifters: Yes
EBT (Easy Bleed Technology): Yes
Quick Fit brake lever fitting: Yes
Heat Eater: Yes
Dual Docking for trigger shifters: Yes
EPR (Easy Pad Replacement): Yes
First full carbon master ever: Yes
ANTI-Drag: Yes
ANTI-Heat: Yes
ANTI-Squeal: Yes
Feel-Safety-Ergonomic: Yes
Colour: Black (lever and caliper) Black (lever blade)
Guarantee: 5-year leak proof warranty after online registration on magura.com
Designed and manufactured in Germany
MAGURA has always been a pioneer of hydraulic brakes for bikes producing the first widely accepted stoppers as early as 1987. The knowledge gained from over 60 years of experience developing brakes for BMW motorcycles made the technology transfer possible.
