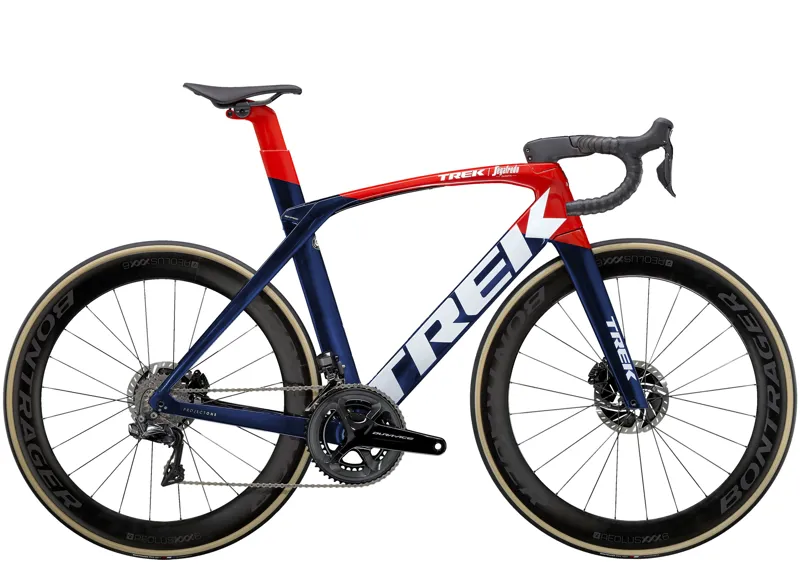

The Madone SLR 9 Disc is the ultimate aero superbike. An all-new ultralight 800 Series OCLV Carbon frame, adjustable compliance and a Shimano Dura-Ace Di2 electronic drive train make it the final stop in your search for an incredibly fast, top-of-the-line aero road bike.
It's right for you if...
You don't settle. The Madone SLR 9 Disc is right for riders who want every performance advantage on the road, including our best and lightest carbon lay-up ever, advanced aerodynamics and superior ride quality.
The tech you get
Our lightest-ever 800 Series OCLV Carbon frame with Kammtail Virtual Foil aerodynamic tube shaping and road-smoothing Adjustable Top Tube IsoSpeed, KVF full carbon disc fork, 12 mm thru axles, an adjustable aero bar and stem, a 2x11 Shimano Dura-Ace Di2 electronic drive train, tubeless-ready Bontrager Aeolus XXX 6 carbon wheels, a micro-adjust Madone seat mast and Dura-Ace flat-mount disc brakes.
The final word
The best. El mejor. Le meilleur. However you say it, this is it. The Madone SLR 9 Disc has the triple threat of aerodynamics, light weight, and ride quality – all finished with parts that are simply… well, the best.
Why you'll love it
800 Series OCLV Carbon is the lightest laminate we’ve ever made, and it makes Madone faster on any terrain, in any conditions
The Shimano Dura-Ace Di2 electronic drivetrain delivers lightning fast precision shifting
Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
A separate bar and stem with an aero carbon faceplate gives you great adjustability without compromising on aerodynamics
Madone Project One ICON paint schemes make the ultimate racing bike a true piece of artwork
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset
Frame: 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork: Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Wheels
Front wheel: Bontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21 mm rim width, 60mm rim depth, 100x12 mm thru axle
Rear wheel: Bontrager Aeolus XXX 6, OCLV Carbon, Tubeless Ready, 21 mm rim width, 60 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Tyre: Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25 c
Drivetrain
Shifter: Shimano Dura-Ace Di2 R9170, 11-speed
Front derailleur: Shimano Dura-Ace Di2 R9150, braze-on
Rear derailleur: Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
*Crank: Size: 47
Shimano Dura-Ace R9100-P Power Meter, 52/36, 165 mm length
Size: 50, 52
Shimano Dura-Ace R9100-P Power Meter, 52/36, 170 mm length
Size: 54, 56
Shimano Dura-Ace R9100-P Power Meter, 52/36, 172.5 mm length
Size: 58, 60, 62
Shimano Dura-Ace R9100-P Power Meter, 52/36, 175 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Dura-Ace R9100, 11-30, 11-speed
Chain: Shimano Dura-Ace 9000, 11-speed
Components
Saddle: Bontrager Aeolus Pro, carbon rails, 145 mm width
*Seatpost: Size: 47, 50, 52, 54, 56
Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, short length
Size: 58, 60, 62
Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, tall length
*Handlebar: Size: 47
Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38 cm width
Size: 50, 52
Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width
Size: 54, 56
Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width
Size: 58, 60, 62
Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size: 47, 50, 52, 54
Trek Madone aero, invisible cable routing, 7-degree, 90 mm length
Size: 56, 58
Trek Madone aero, invisible cable routing, 7-degree, 100 mm length
Size: 60, 62
Trek Madone aero, invisible cable routing, 7-degree, 110 mm length
Brake: Shimano Dura-Ace hydraulic disc
Brake rotor: Shimano RT900, 160 mm, CenterLock
Weight
Weight: 56 - 7.80 kg / 17.19 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
