The Émonda ALR 5 is a race-ready road bike with a top-tier alloy frame that's intensely light, fast and far more pocket-friendly than carbon bikes of its calibre.
The Émonda ALR 5 is a race-ready road bike with a top-tier alloy frame that's intensely light, fast and far more pocket-friendly than carbon bikes of its calibre.
Trek

Trek Emonda Alr 5 Azure to Living Coral

£2,325.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

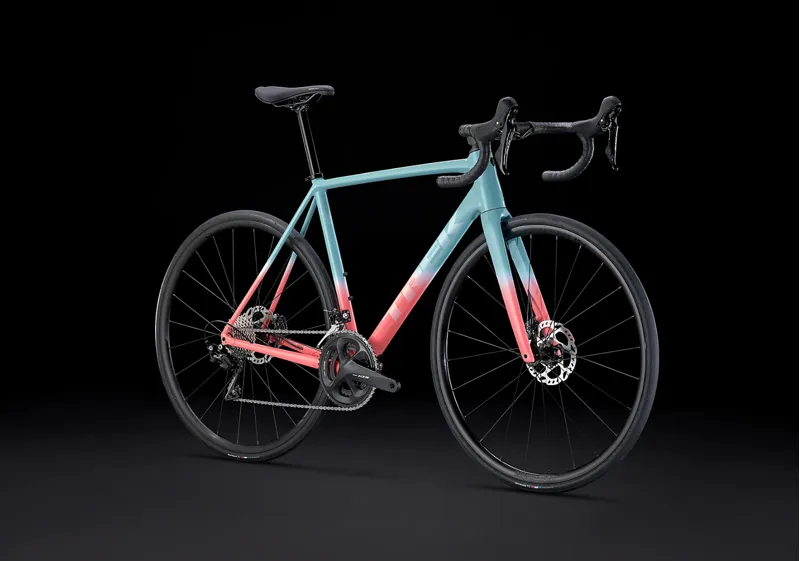

Trek Emonda Alr 5 Azure to Living Coral

Season:2023

Brand:Trek

Code:36100AzuretoLivingWHTFade

The Émonda ALR 5 is a race-ready road bike with a top-tier alloy frame that's intensely light, fast and far more pocket-friendly than carbon bikes of its calibre. Its lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage. It's equipped with a dependable 105 drivetrain and hydraulic disc brakes that stop on a penny whatever the weather, making it the perfect lightweight alloy bike for club rides and race days alike.

It's right for you if...

You want all the advantages of a bike built to be the lightest in its class, with a wallet-friendly alloy frame that has the sleek looks and handling you'd expect only from a carbon frame. You also want the confident stopping power that disc brakes provide.

The tech you get

An ultralight 300 Series Alpha Aluminium frame with aerodynamic Kammtail shaped tubes and Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2x11 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

The final word

The Émonda ALR 5 gives you the sleek looks of carbon without the sticker shock. Its advanced alloy frame is built to perform, and pairs with disc brakes and a reliable Shimano 105 drivetrain to give it the race-ready edge.

Why you'll love it

  1. The all-new frame is lighter and sleeker than previous ALR models and features aerodynamic Kammtail tubes with even cleaner cable routing
  2. It climbs fast, corners on rails, and descends with confidence
  3. Disc brakes offer better braking performance and extra clearance for wider, more comfortable tyres
  4. It shares the race geometry of our highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
  5. Internal cable routing extends the life of your cables and adds to the bike's sleek look
Technical Information
FrameUltralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
ForkÉmonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm thru axle
Frame fitH1.5 Race
Wheels
Hub frontBontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer frontBontrager Switch thru-axle, removable lever
Hub rearBontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rearBontrager Switch thru-axle, removable lever
RimBontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x 25 c
Max tyre size28c

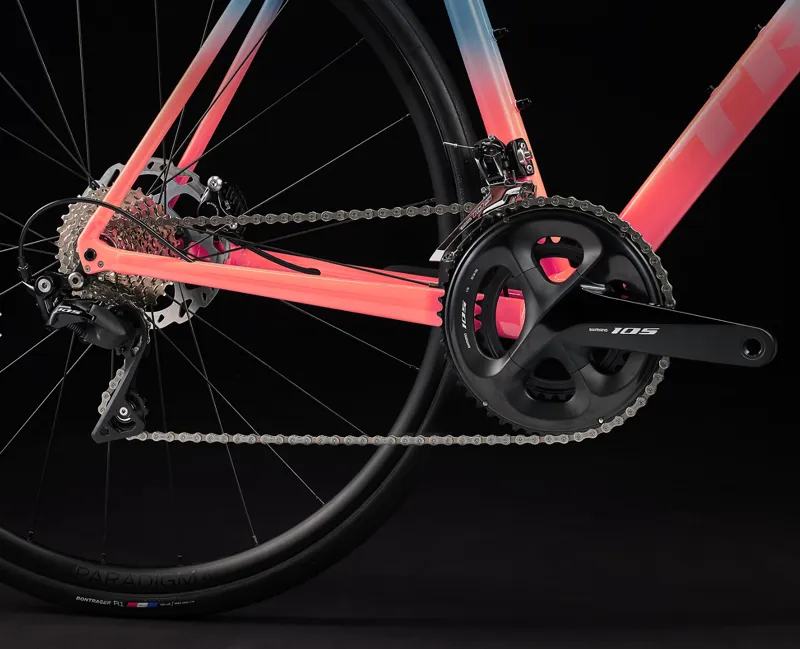

Drivetrain
ShifterShimano 105 R7020, 11-speed
Front derailleurShimano 105 R7000, braze-on
Rear derailleurShimano 105 R7000, short cage, 30T max cog
*CrankSize:47
Shimano 105 R7000, 50/34 (compact), 165 mm length
Size:50, 52
Shimano 105 R7000, 50/34 (compact), 170 mm length
Size:54, 56, 58
Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Size:60, 62
Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracketPraxis, T47 threaded, internal bearing
CassetteShimano 105 R7000, 11-30, 11 speed
ChainShimano 105 HG601, 11-speed
Max. chainring size1x: 48T, 2x: 53/39
Components
*SaddleSize:47, 50, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Comp, steel rails, 145 mm width
*SeatpostSize:47
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size:50, 52, 54, 56, 58, 60, 62
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*HandlebarSize:47, 50
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width
Size:52
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
Size:54, 56, 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size:60, 62
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tapeBontrager Supertack Perf tape
*StemSize:47
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

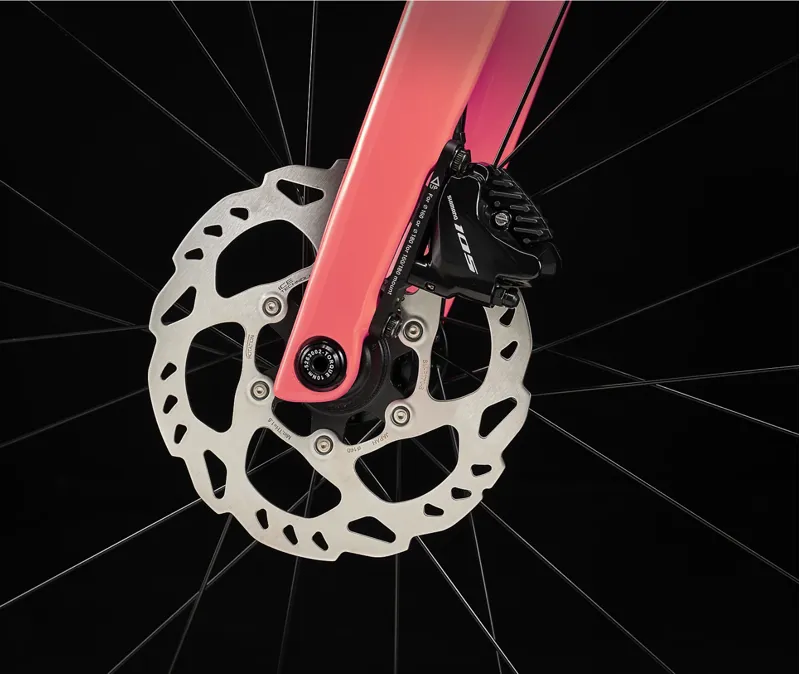

Brake rotorShimano SM-RT70, CenterLock, 160 mm
Rotor sizeMax brake rotor sizes: 160 mm front and rear
Weight
Weight56 – 9.00 kg/19.85 lb
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information
47

152 - 158 cm

5'0" - 5'2"

71 - 75 cm

28" - 30"

50

158 - 163 cm

5'2" - 5'4"

74 - 77 cm

29" - 30"

52

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"

54

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"

56

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"

58

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"

60

185 - 190 cm

6'1" - 6'3"

86 - 90 cm

34" - 35"

62

190 - 195 cm

6'3" - 6'5"

89 - 92 cm

35" - 36"
