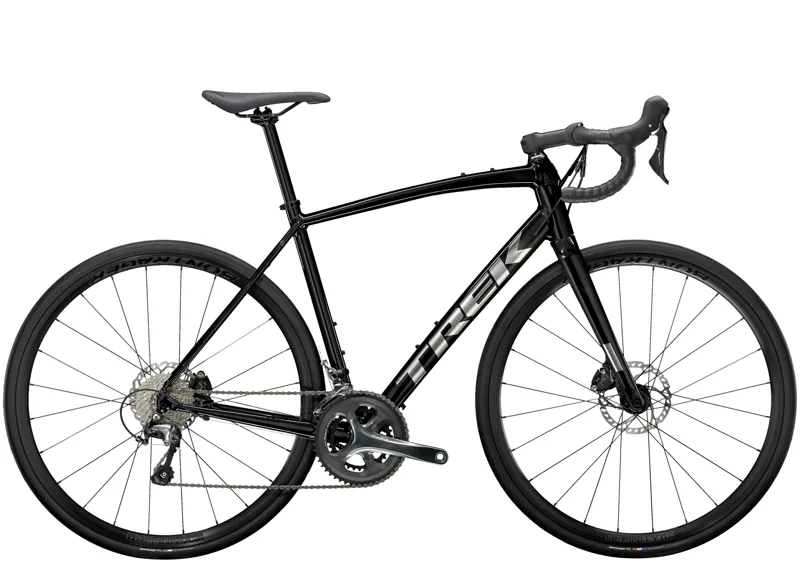

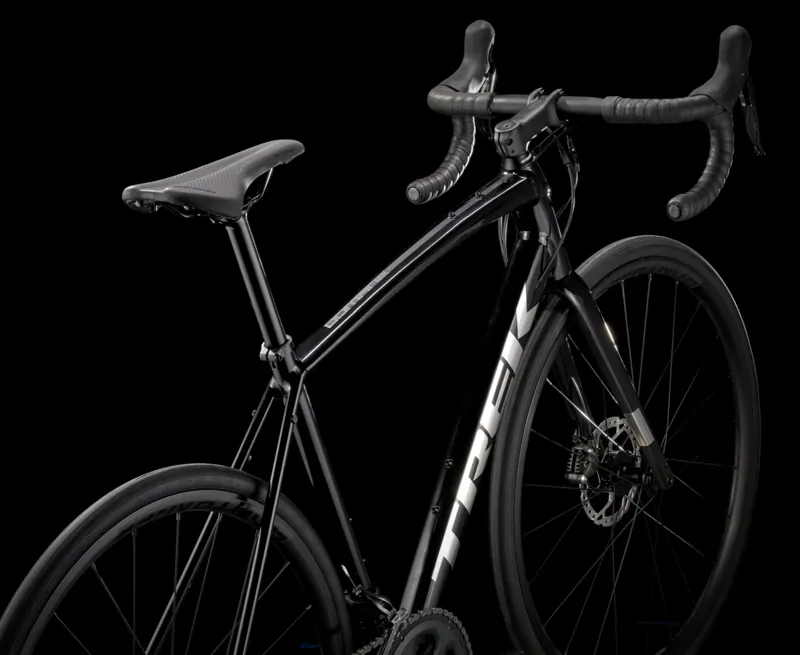

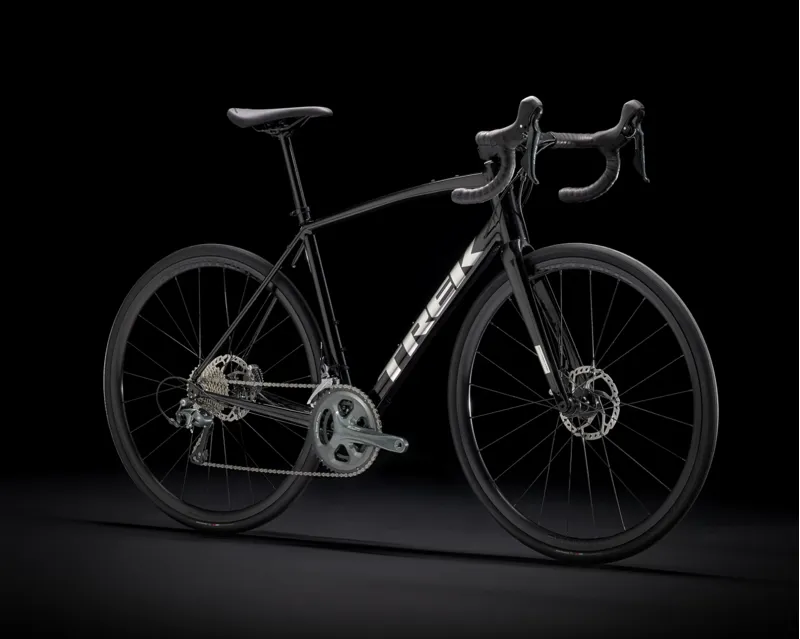

Trek Domane AL 4 Disc Road Bike in Black

Season:2022

Brand:Trek

Code:330852021GLSBLKMATBLK

A light, comfortable frame and quality parts make it an amazing platform for long, fast group rides

The unique isospeed carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly. Hydraulic disc brakes give you more precise and consistent stopping power in any conditions. Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads.
Technical Information

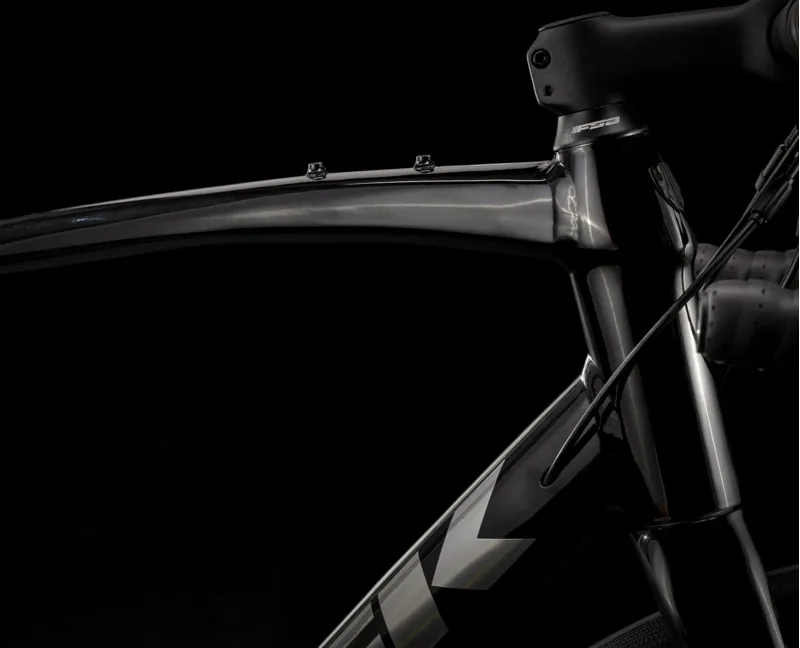

  • Frame

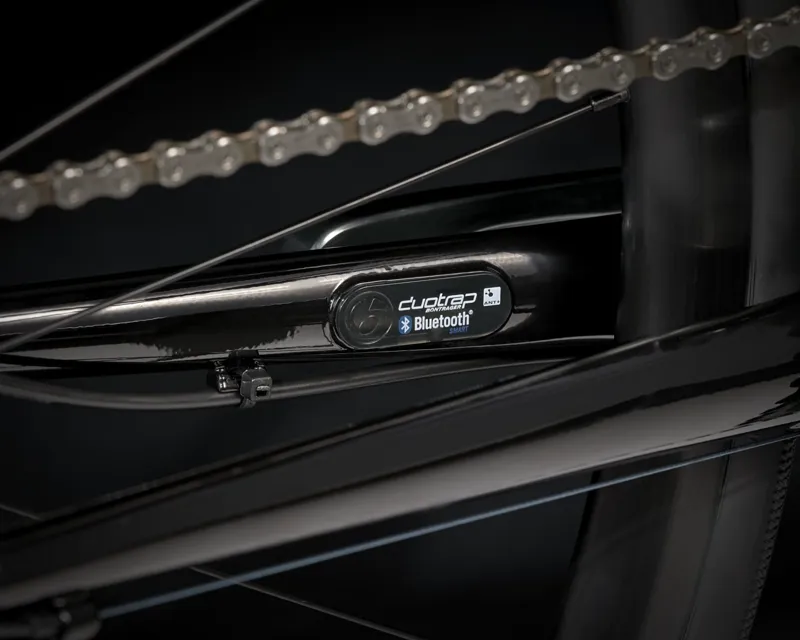

    100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork
    Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Front hub
    Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
  • Rear hub
    Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
  • Rim
    Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel
  • Tyre
    Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Shifter
    Shimano Tiagra R4725, short-reach lever, 10-speed
  • Front derailleur
    Shimano Tiagra 4700, 31.8 mm clamp
  • Rear derailleur
    Shimano Tiagra 4700, long cage, 34T max cog

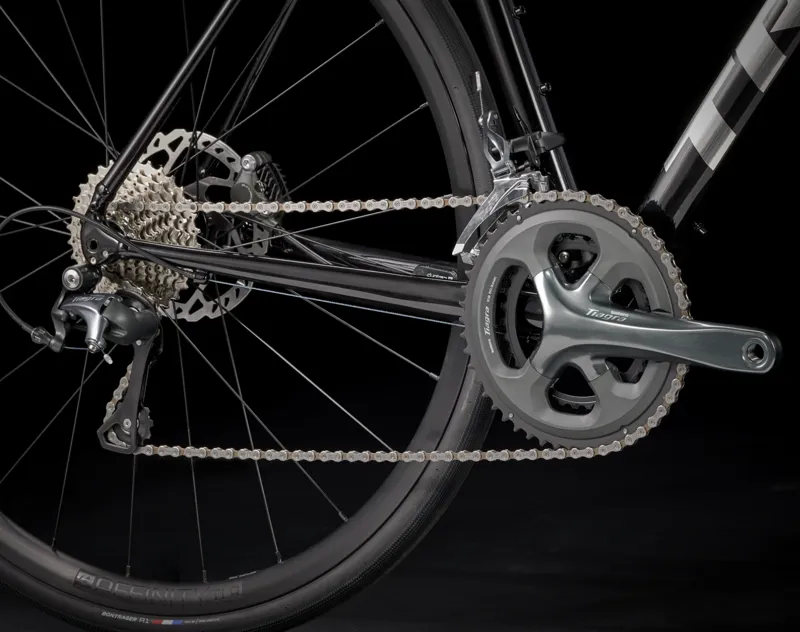

  • Crank
    Size: 44, Shimano Tiagra 4700, 50/34, 165 mm length
    Size: 49/52, Shimano Tiagra 4700, 50/34, 170 mm length
    Size: 54/56, Shimano Tiagra 4700, 50/34, 172.5 mm length
    Size: 58/61, Shimano Tiagra 4700, 50/34, 175 mm length
  • Bottom bracket
    Shimano RS500, 68 mm, threaded external
  • Cassette
    Shimano 10-speed, 11-32T
  • Chain
    Shimano Tiagra HG54, 10-speed
  • Saddle
    Size: 44/49/52, Bontrager P3 Verse Comp, steel rails, 155 mm width
    Size: 54/56/58/61, Bontrager P3 Verse Comp, steel rails, 145 mm width
  • Seatpost
    Size: 44/49, Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
    Size: 52/54/56/58/61, Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

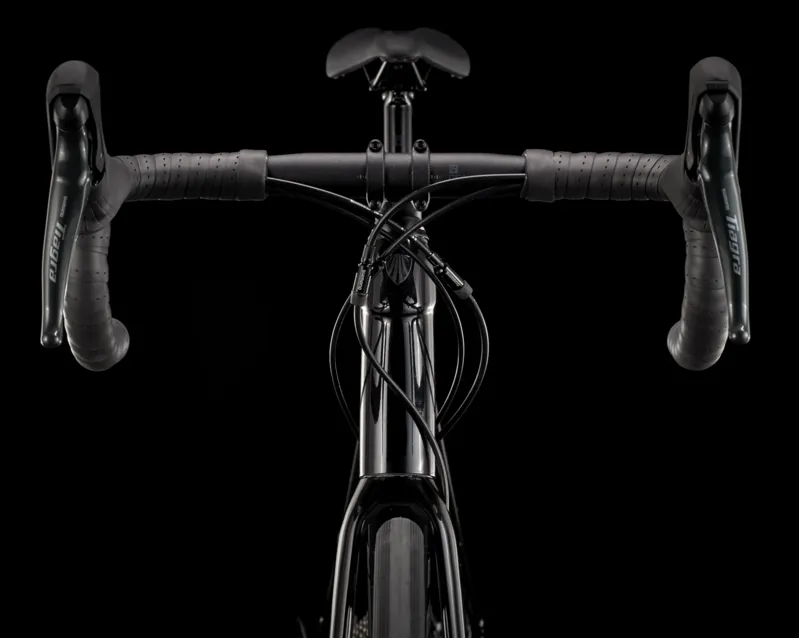

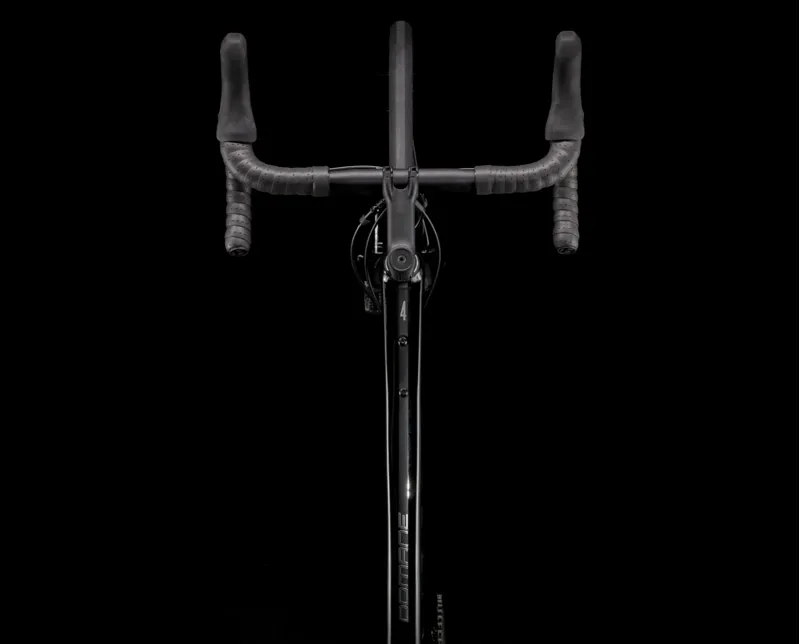

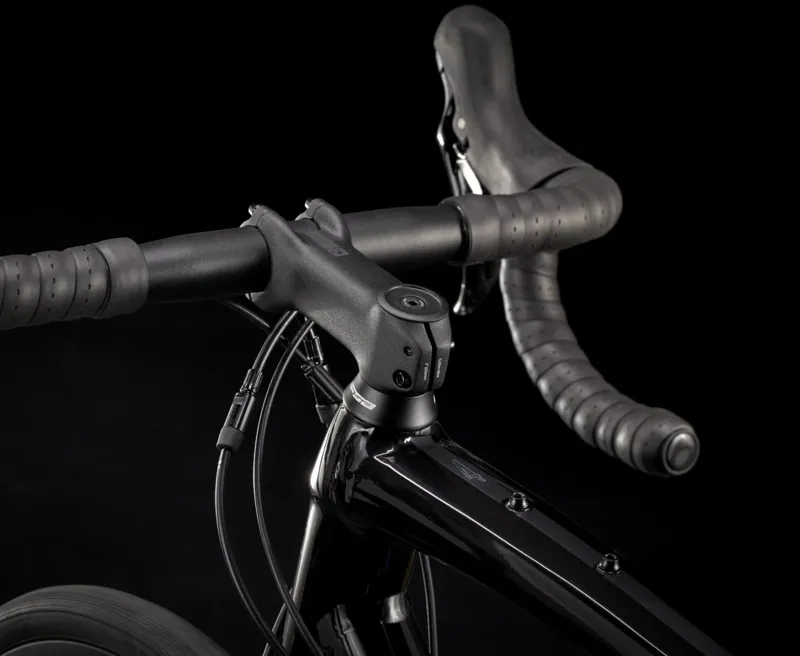

  • Handlebar
    Size: 44/49, Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
    Size: 52, Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
    Size: 54/56, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
    Size: 58/61, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem

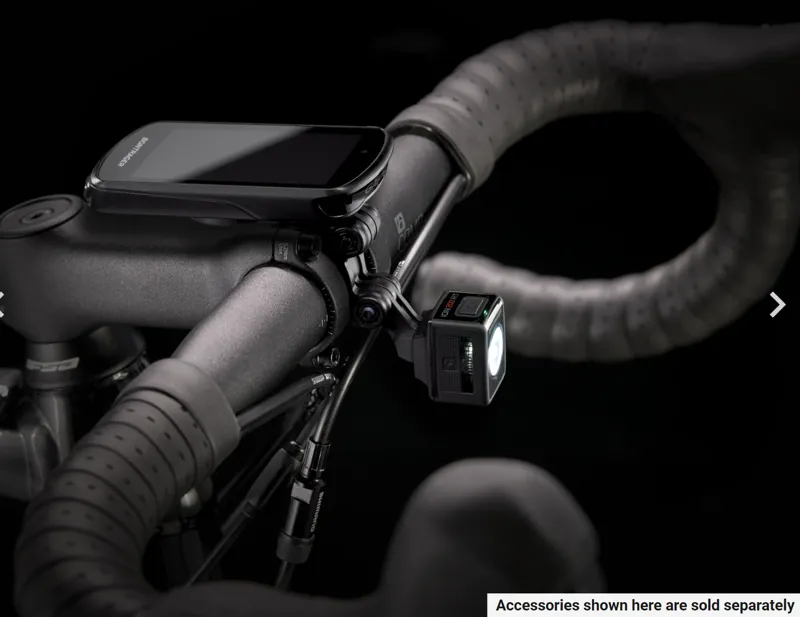

    Size: 44, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
    Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 52/54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 56/58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
    Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
  • Head set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano Tiagra hydraulic disc
  • Brake rotor
    Shimano RT66, 160 mm, 6-bolt
  • Weight
    56 - 10.48 kg / 23.11 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information

 Sizing & fit

Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on pedalrevolution.co.uk are for general comparison purposes only.

All measurements provided in cm unless otherwise stated.

Frame size number Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
44 cm 700c 39.0 74.6° 9.5 70.3° 8.0 42.0 5.3 6.6 98.3 65.7 36.0 51.0
49 700c 44.0 74.6° 12.3 70.8° 8.0 42.5 5.3 6.6 100.1 71.7 36.8 54.0
52 cm 700c 47.5 74.2° 14.5 71.3° 8.0 42.0 5.3 5.9 100.3 73.5 37.1 56.1
54 cm 700c 50.0 73.7° 16.0 71.3° 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5
56 cm 700c 52.5 73.3° 17.5 71.9° 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1
58 cm 700c 54.8 73.0° 19.5 72.0° 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1
61 700c 57.6 72.7° 23.5 72.1° 7.5 42.5 4.8 6.3 103.8 84.2 38.5 64.6
Bike and frame weights are based on Trek pre-production painted frames at the time of publication. Weights may vary in final production
