Checkpoint SL 5 is a carbon gravel bike made for epic all-road adventures. It's built with lightweight OCLV Carbon, terrain-smoothing damped IsoSpeed, nimble-yet-stable progressive geometry, internal storage and loads of mounts
Checkpoint SL 5 is a carbon gravel bike made for epic all-road adventures. It's built with lightweight OCLV Carbon, terrain-smoothing damped IsoSpeed, nimble-yet-stable progressive geometry, internal storage and loads of mounts
Trek

Trek Checkpoint SL 5 2022 Carbon Gravel Bike Satin Mercury/Satin Carbon Smoke

£3,700.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

Trek Checkpoint SL 5 2022 Carbon Gravel Bike Satin Mercury/Satin Carbon Smoke

Season:2023

Brand:Trek

Code:35169SATMercurySATCBNSMK

Checkpoint SL 5 is a carbon gravel bike made for epic all-road adventures. It's built with lightweight OCLV Carbon, terrain-smoothing damped IsoSpeed, nimble-yet-stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

It's right for you if...

Chamois or cut-off shorts, bikepacking trip or brutal day of gravel racing – you're going to ride far, go fast and have a great time. You want a bike that's both fast and comfortable, and you want endless carrying options for gravel races and everyday adventures.

The tech you get

A 500 Series OCLV Carbon frame with damped Rear IsoSpeed and carbon armour, a progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal storage, hidden cables that won't interfere with bags, integrated frame bag mounts and rack and mudguard mounts. Plus, a carbon fork, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, and wide 700x40c gravel tyres for added stability and traction. You can even run a dropper post to get low on long descents.

The final word

Light, fast, comfortable. The Checkpoint SL 5 gives you the unmatched ride quality of an OCLV Carbon frame with IsoSpeed and gravel-specific geometry, plus internal storage and a drivetrain built for rough terrain.

Why you'll love it

  1. The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
  2. All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  3. A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  4. Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
  5. Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
Frame500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle

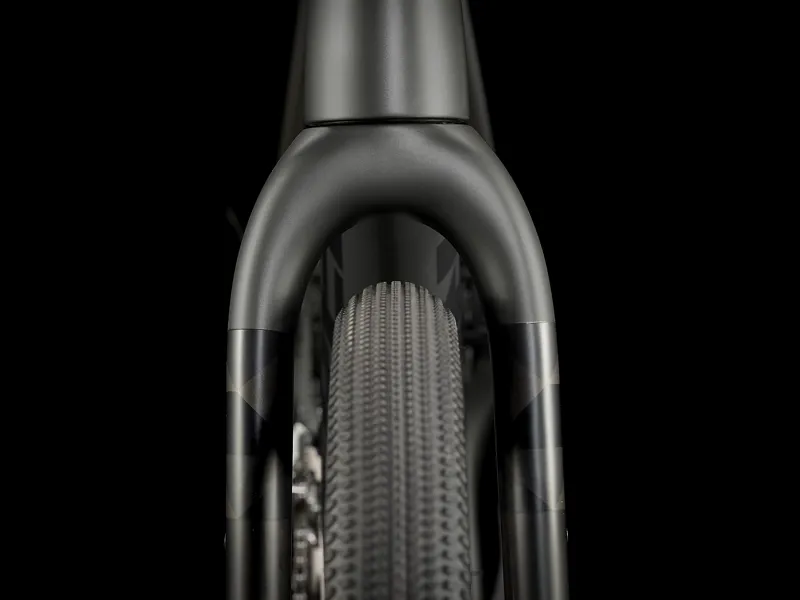

ForkTrek Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru-axle
Wheels
Hub frontBontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer frontBontrager Switch thru axle, removable lever
Hub rearBontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rearBontrager Switch thru-axle, removable lever
RimBontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
TyreBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
Rim stripBontrager Aeolus XXX rim strip

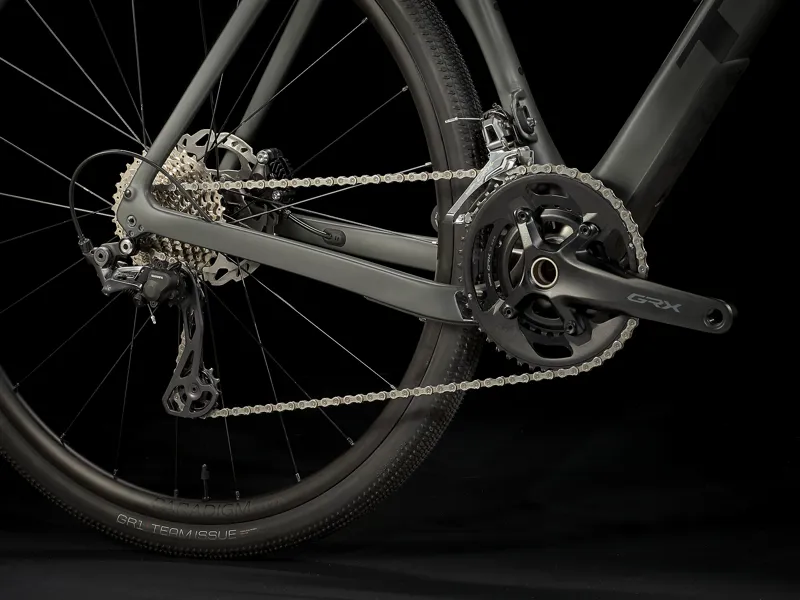

Drivetrain
ShifterShimano GRX RX600, 11-speed
Front derailleurShimano GRX RX810, braze-on
Rear derailleurShimano GRX RX810, long cage, 34T max cog
*CrankSize: 49
Shimano GRX RX600, 46/30, 165 mm length
Size: 52
Shimano GRX RX600, 46/30, 170 mm length
Size: 54, 56
Shimano GRX RX600, 46/30, 172.5 mm length
Size: 58, 61
Shimano GRX RX600, 46/30, 175 mm length
Bottom bracketPraxis, T47 threaded, internal bearing
CassetteShimano 105 HG700-11, 11-34, 11-speed
ChainShimano 105 HG601, 11-speed
Components
*SaddleSize: 49, 52
Bontrager P3 Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager P3 Verse Comp, steel rails, 145 mm width
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*HandlebarSize: 49

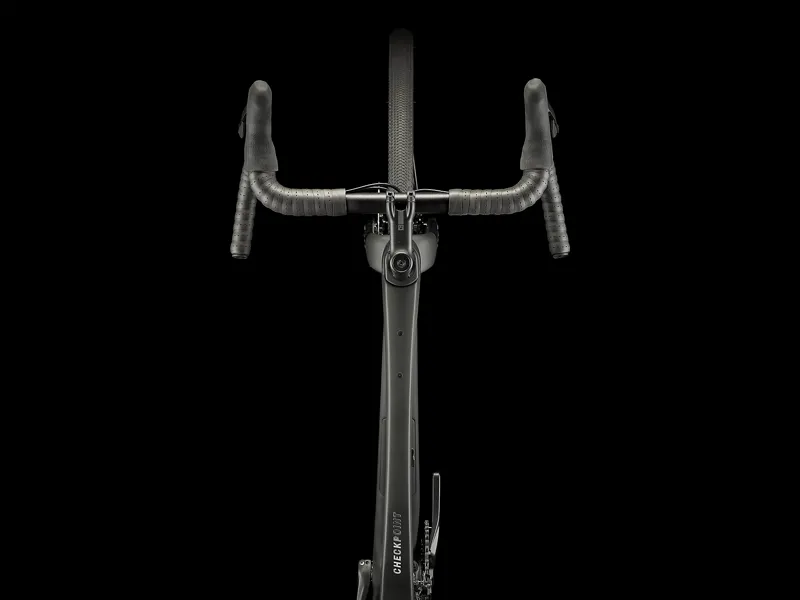

Bontrager Elite Gravel, 38 cm width
Size: 52
Bontrager Elite Gravel, 40 cm width
Size: 54, 56
Bontrager Elite Gravel, 42 cm width
Size: 58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tapeBontrager Supertack Perf tape
*StemSize: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotorShimano SM-RT70, CenterLock, 160 mm
Accessories
BagBontrager BITS Internal Frame Storage Bag
Weight
Weight56 - 21.38 lbs / 9.7 kg
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Technical Information

Features

Tons of mounts

Integrated frame bag and rack and mudguard mounts make it easy to carry gear and water.

IsoSpeed smooth

The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around.

New progressive geometry

For quick, nimble handling that still keeps you stable and in control on rougher descents.

Tyre clearance

Lots of clearance means you can run meatier tyres (700x45 mm or 27.5x2.1") for tackling chunkier gravel and terrain.

Sleek internal storage

A built-in storage compartment in the downtube lets you stow tools and gear.

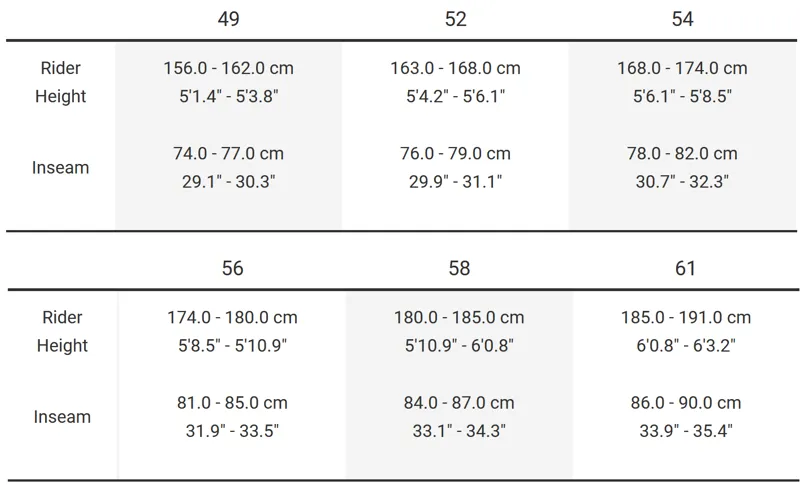

Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size numberWheel sizeA — Seat tubeB — Seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
49 cm700c49.074.1°9.071.2°54.17.843.54.57.4102.573.539.353.8
52 cm700c52.073.7°10.571.6°55.57.843.54.57.1103.376.539.955.3
54 cm700c54.073.2°12.571.8°57.07.643.54.57.0104.178.940.357.1
56 cm700c56.072.8°14.572.2°58.47.643.54.56.7104.880.940.759.2
58 cm700c58.072.5°16.572.3°59.77.443.54.56.6105.882.941.160.9
61 cm700c61.072.1°19.572.6°61.77.443.54.56.5107.085.941.763.9
