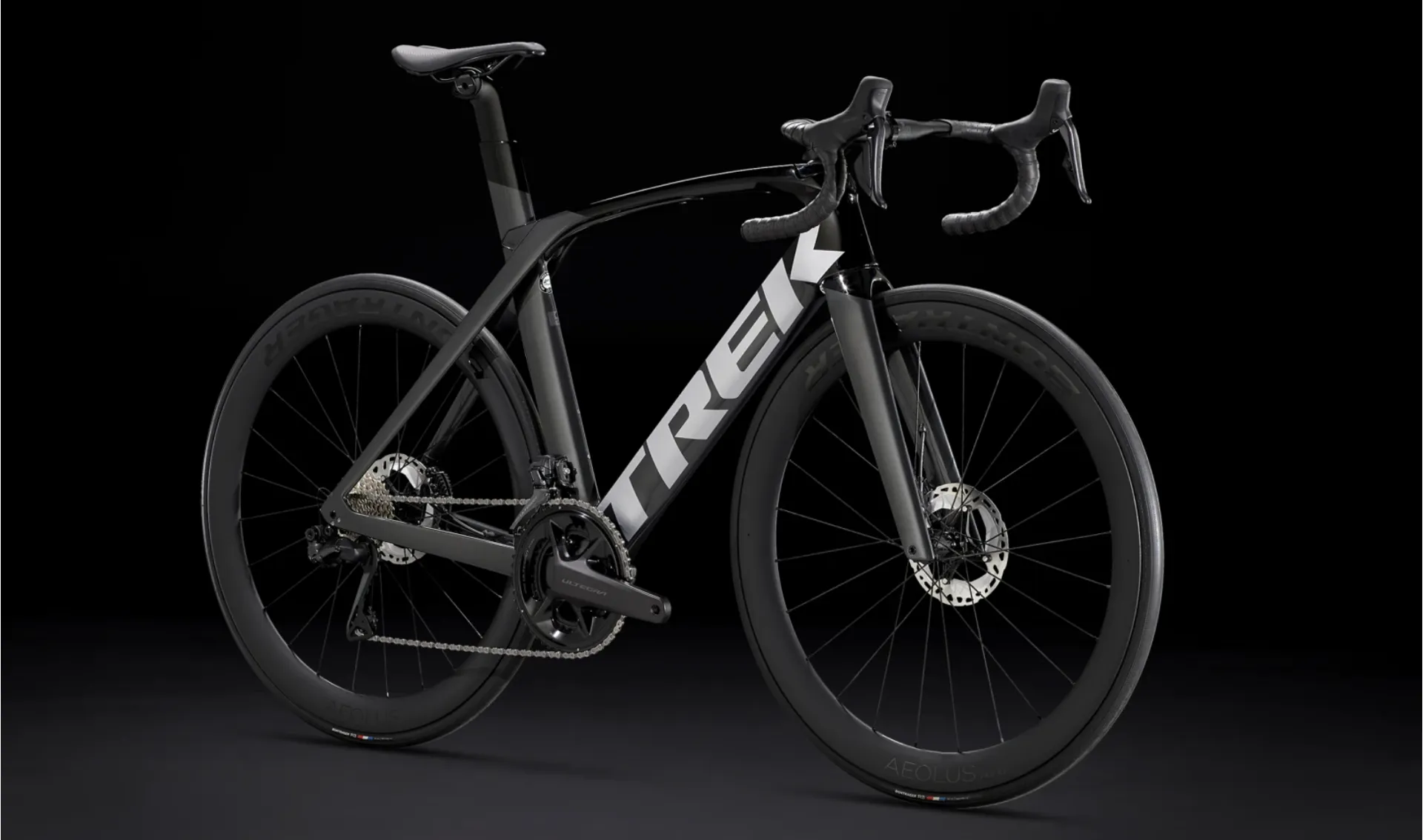

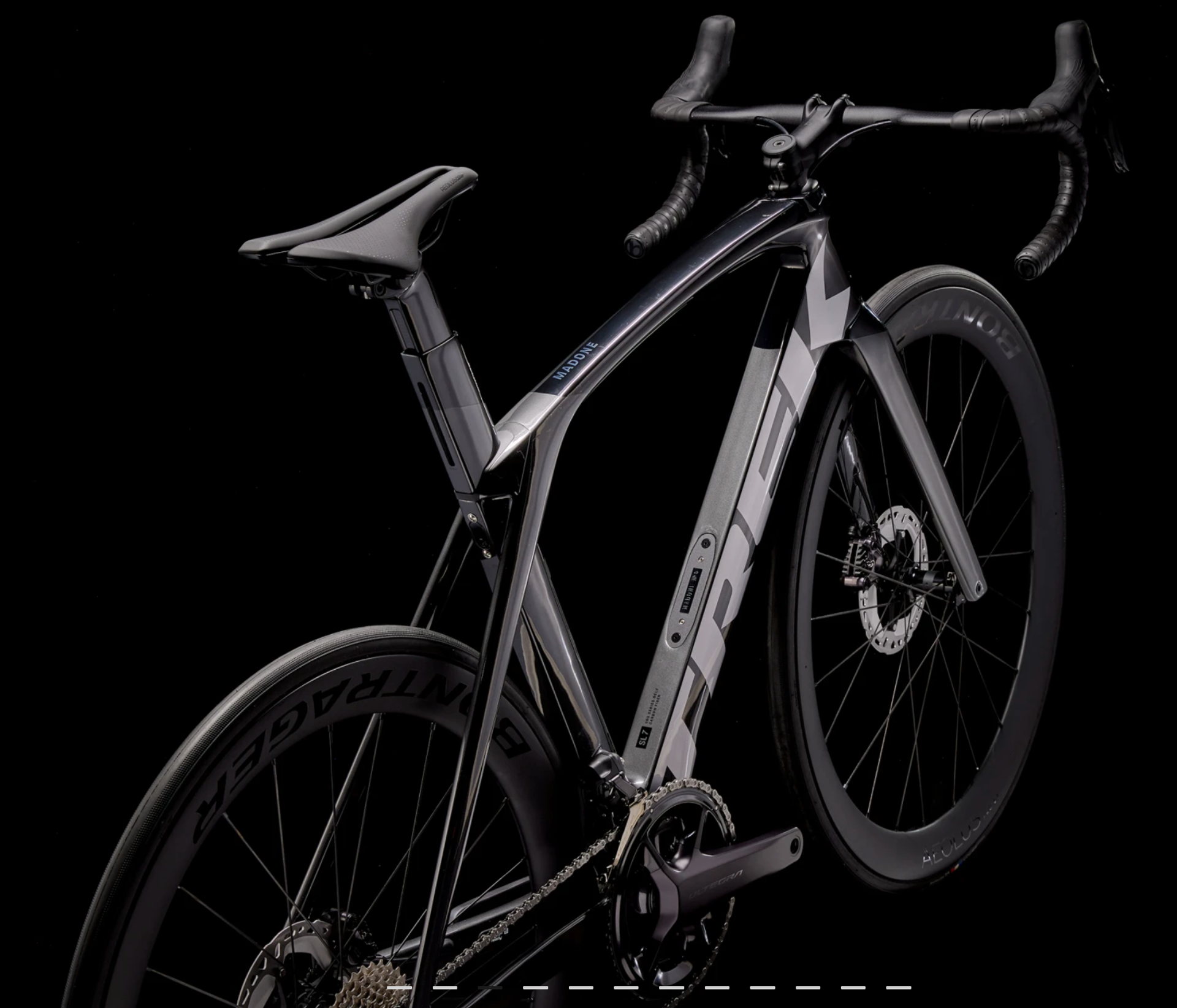

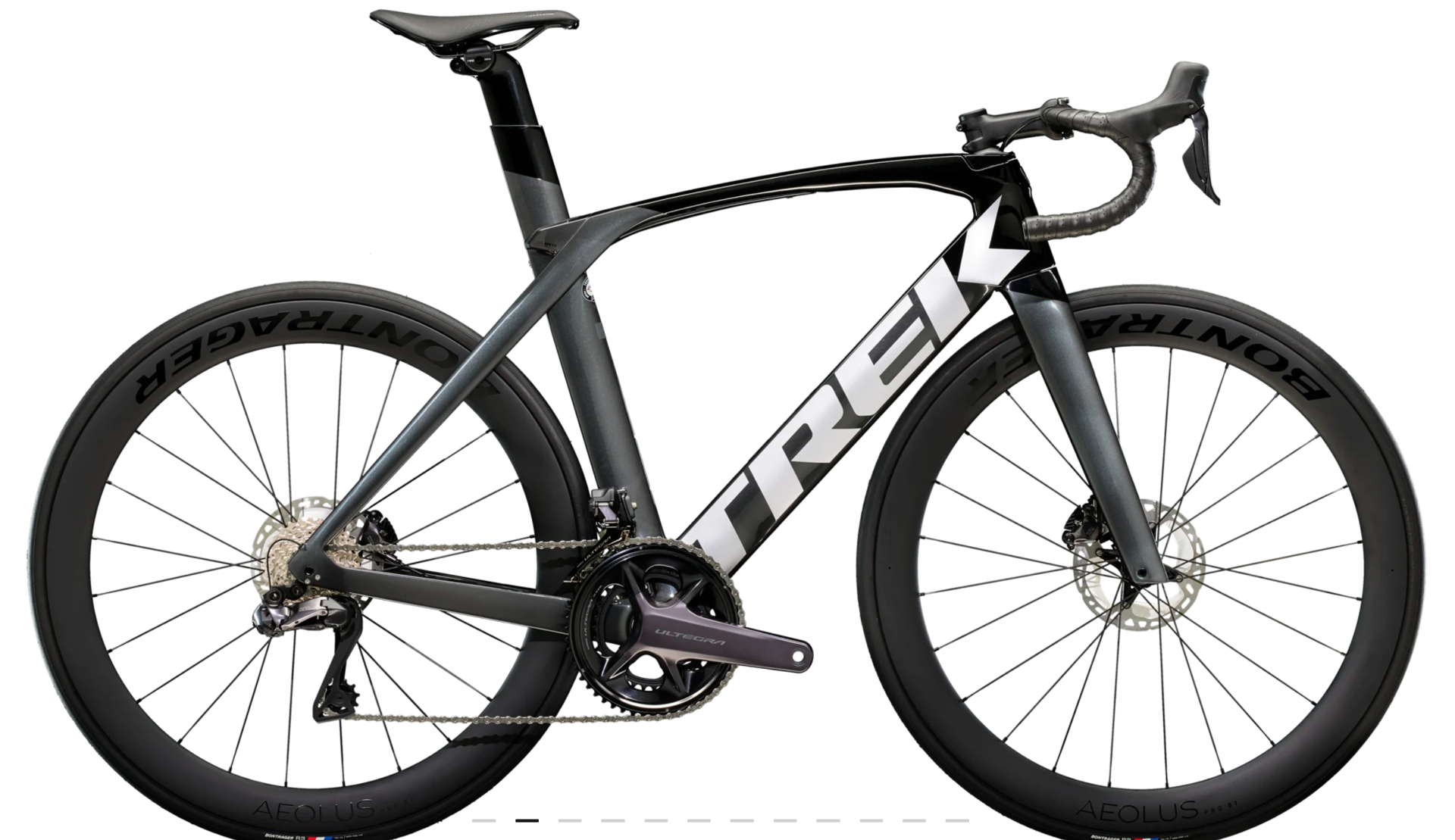

Madone Sl 7 Lithium Grey

Season:2023

Brand:Trek

Code:36979LithiumGRY

You're serious about speed and performance, and you want the advantage of lightweight carbon wheels and a new Di2 wireless electronic drivetrain that's incredibly fast and consistent in all conditions. You also prefer the all-weather stopping power hydraulic disc brakes provide.A lightweight 500 series oclv carbon frame and fork with kammtail virtual foil tubes that cut through the wind, a road-smoothing isospeed decoupler, a wireless Shimano Ultegra Di2 2x12 electronic group set, tubeless-ready bontrager aeolus Pro 51 ocl..

It's right for you if...

You're serious about speed and performance, and you want the advantage of lightweight carbon wheels and a new Di2 wireless electronic drivetrain that's incredibly fast and consistent in all conditions. You also prefer the all-weather stopping power hydraulic disc brakes provide.

The tech you get

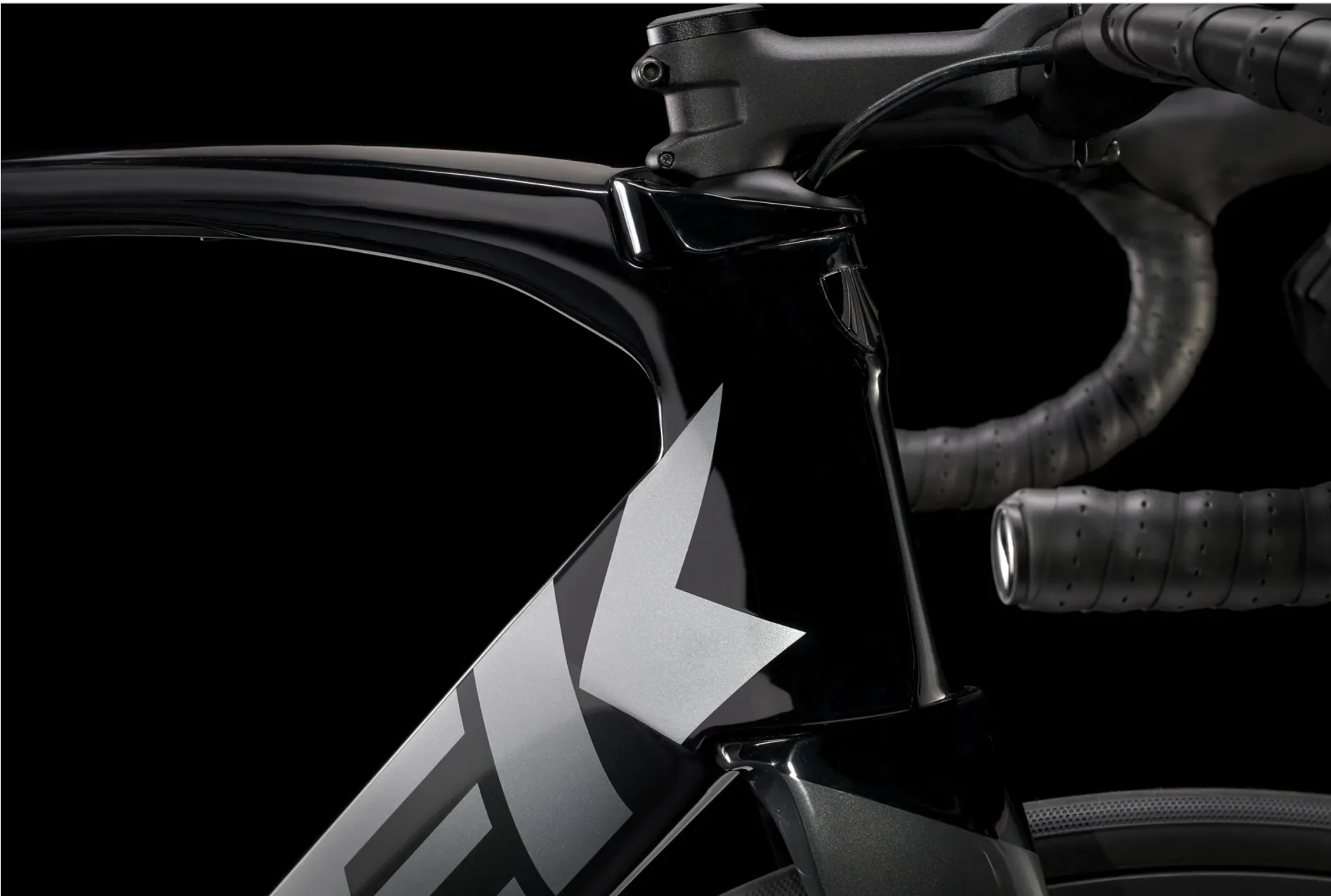

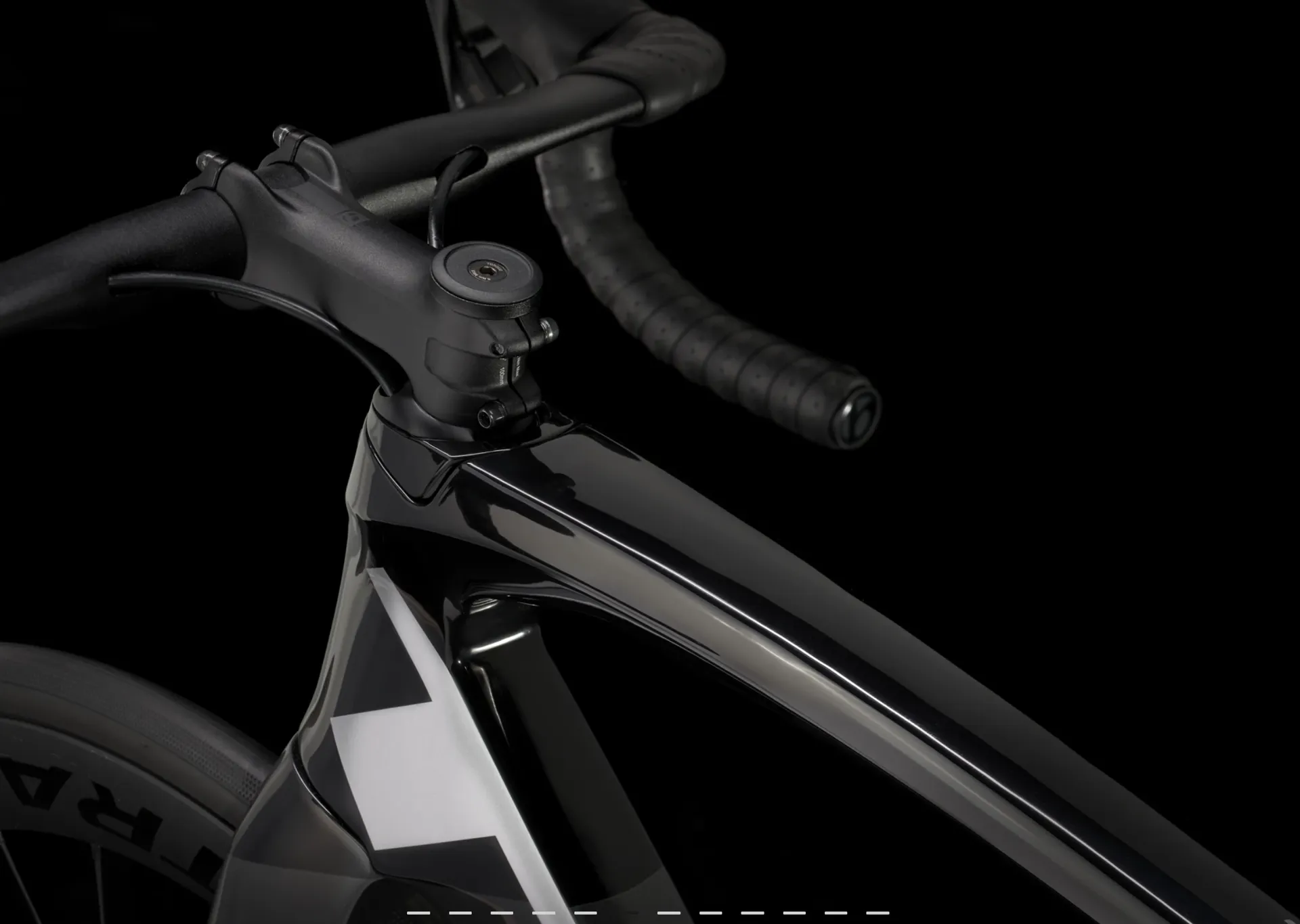

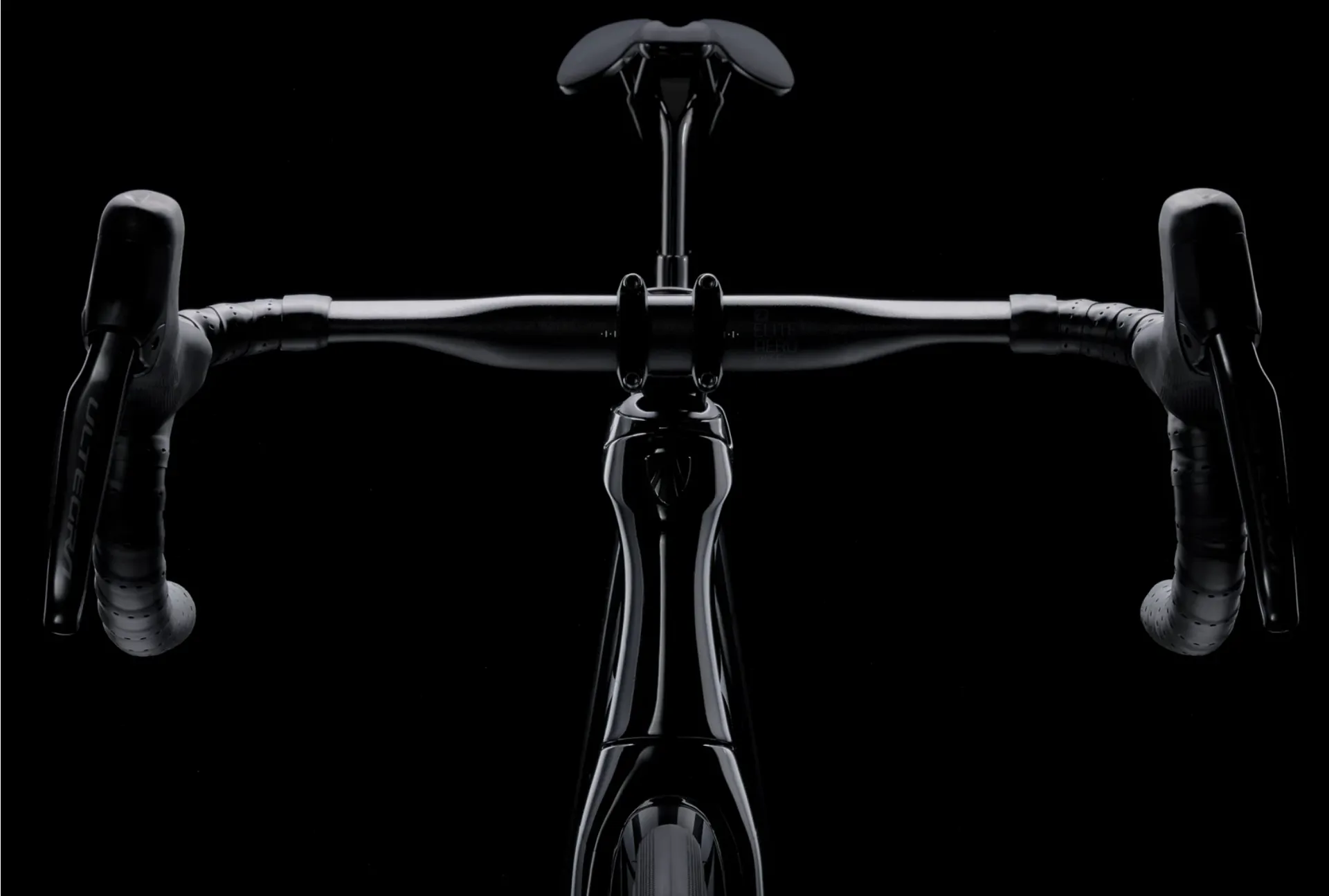

A lightweight 500 Series OCLV Carbon frame and fork with Kammtail Virtual Foil tubes that cut through the wind, a road-smoothing IsoSpeed decoupler, a wireless Shimano Ultegra Di2 2x12 electronic group set, tubeless-ready Bontrager Aeolus Pro 51 OCLV carbon wheels, powerful hydraulic disc brakes and an aero handlebar that's compatible with clip-on aero bars.

The final word

You get the free speed, aerodynamic advantage and superior ride quality of our ultimate racing bike, plus the precision of an electronic drivetrain. The wireless Ultegra Di2 delivers ultra-quick, reliable shifts – and that really matters when you're sprinting for the line.

rite_borderWhy you'll love it

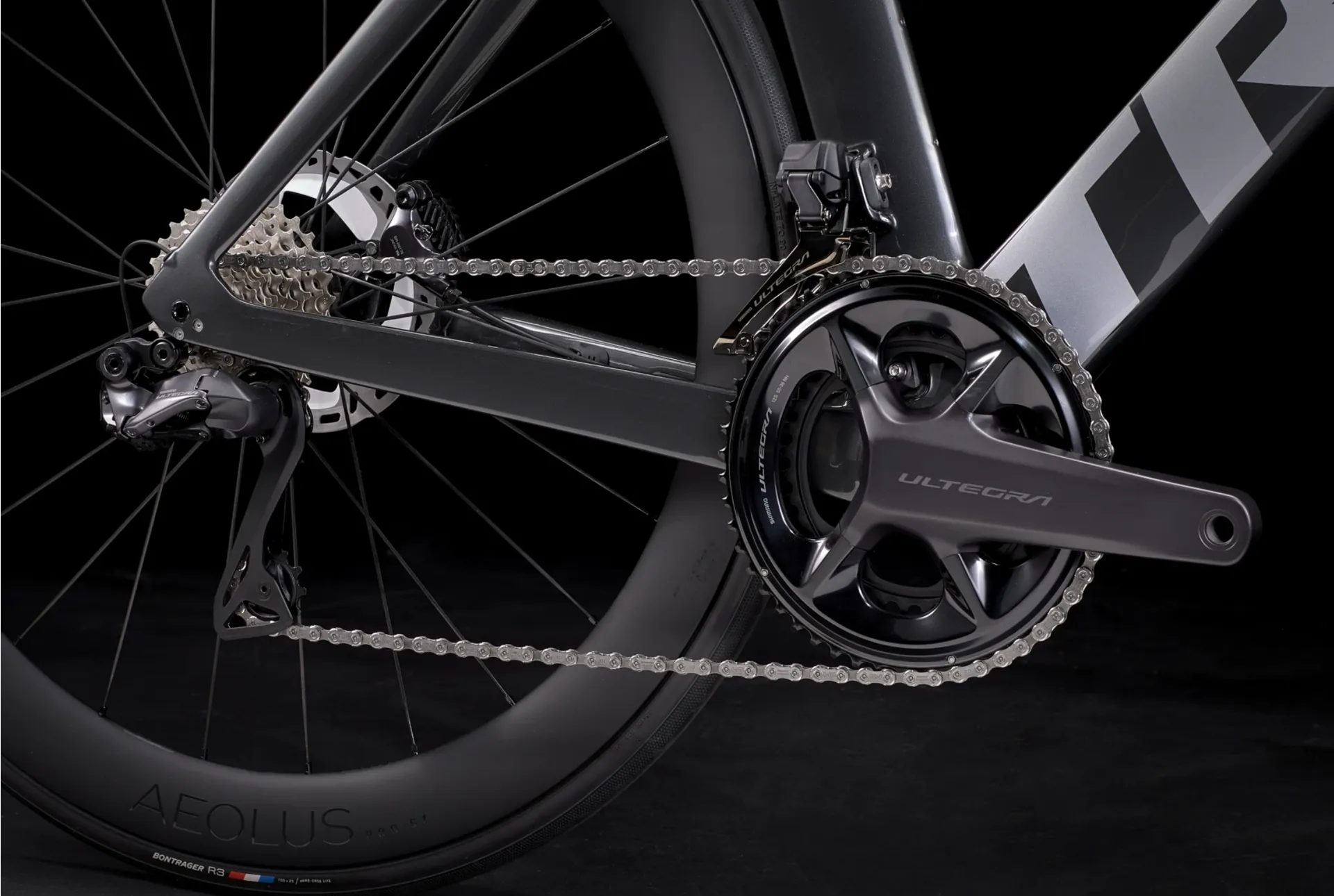

  1. The Wireless Ultegra Di2 delivers faster, smoother and more responsive shifts than ever

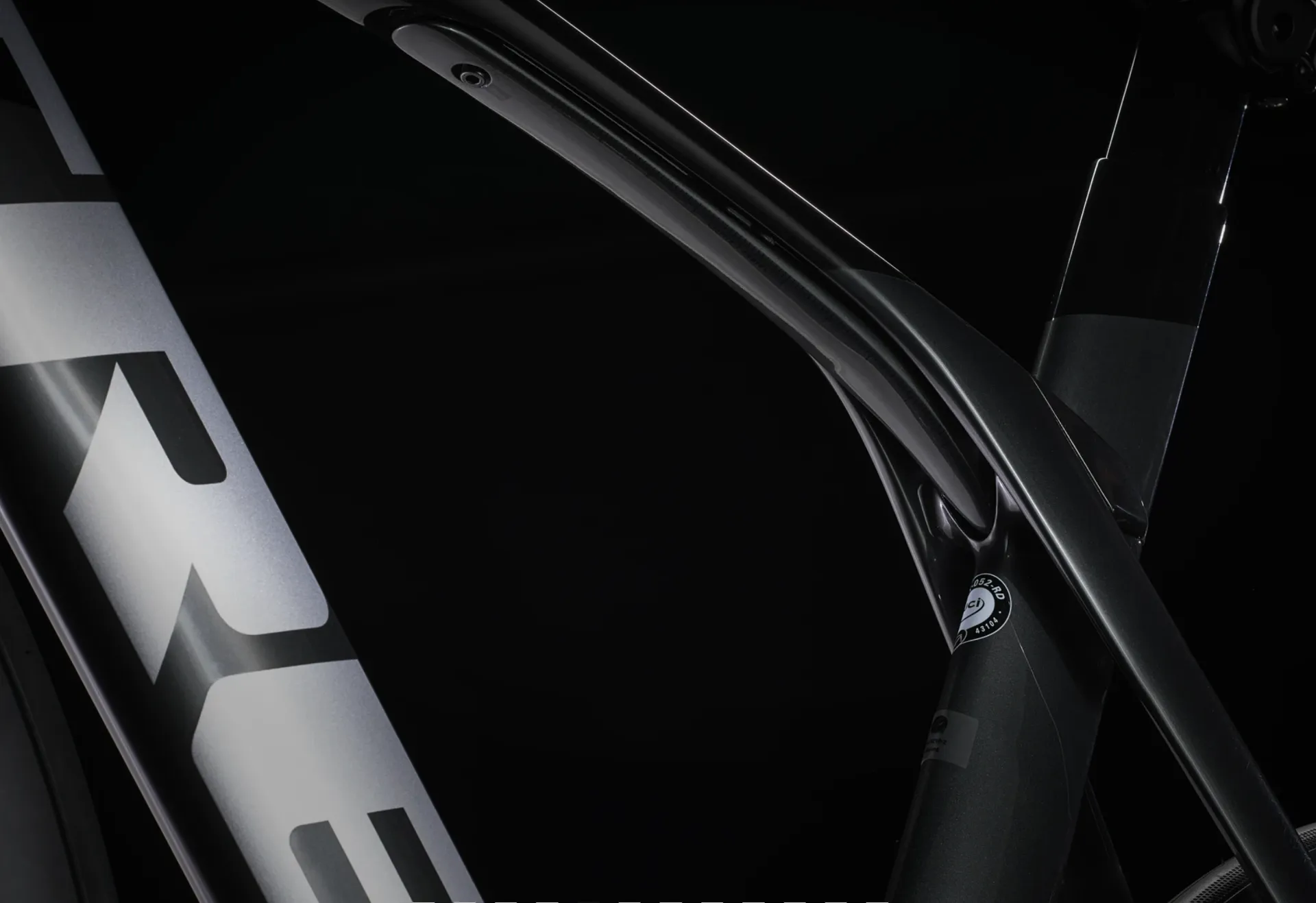

  2. Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
  3. All the aero advantages of Madone, plus the added capability to clip on aero bars for triathlons and time trials
  4. Disc brakes offer better braking performance and extra clearance for wider, more stable tyres

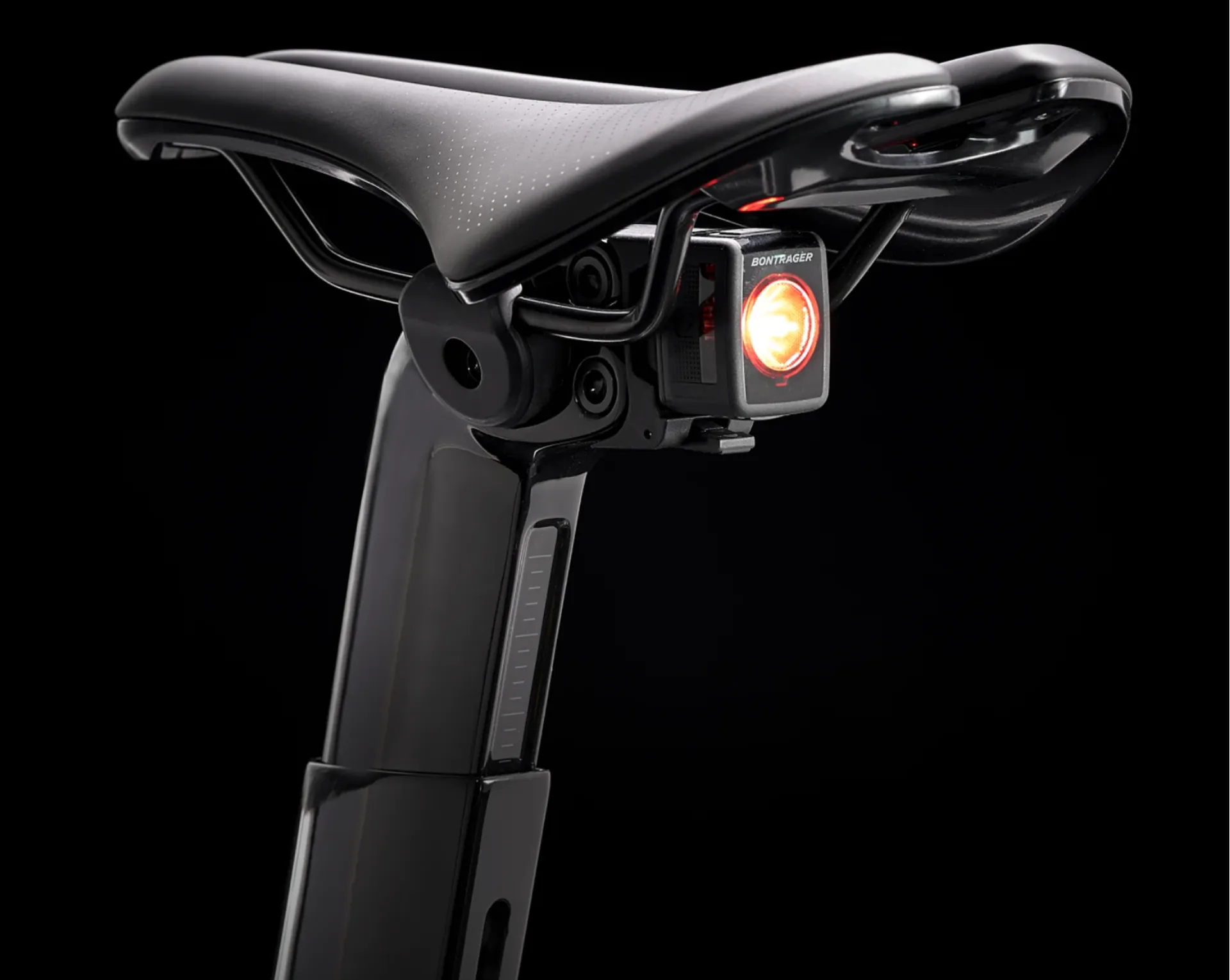

  5. The Madone seat post has an integrated mount for the Bontrager Flare RT tail light
Technical Information
expand_less
Frame500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
Frame fitH1.5 Race
Wheels
expand_less
Wheel frontBontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rearBontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
Skewer frontBontrager Switch thru axle, removable lever
Skewer rearBontrager Switch thru-axle, removable lever
RimBontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
TyreBontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size28c
Drivetrain
expand_less
ShifterShimano Ultegra R8170 Di2, 12-speed
Front derailleurShimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleurShimano Ultegra R8150 Di2
*CrankSize:47
Shimano Ultegra R8100, 52/36, 165 mm length
Size:50, 52
Shimano Ultegra R8100, 52/36, 170 mm length
Size:54, 56
Shimano Ultegra R8100, 52/36, 172.5 mm length
Size:58, 60, 62
Shimano Ultegra R8100, 52/36, 175 mm length
Bottom bracketPraxis, T47 threaded, internal bearing
CassetteShimano Ultegra R8100, 11-30, 12 speed
ChainShimano XT M8100, 12-speed
Max. chainring size1x: 50T, 2x: 54/40
Accessories
expand_less
ChargerCharging cable included
Weight
expand_less
Weight56 - 8.26 kg / 18.22 lbs
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing Information

Sizing

SizeRider HeightInseam
47

152 - 158 cm

5'0" - 5'2"

71 - 75 cm

28" - 30"

50

158 - 163 cm

5'2" - 5'4"

74 - 77 cm

29" - 30"

52

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"

54

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"

56

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"

58

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"

60

185 - 190 cm

6'1" - 6'3"

86 - 90 cm

34" - 35"

62

190 - 195 cm

6'3" - 6'5"

89 - 92 cm

35" - 36"

Geometry

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size numberWheel sizeA —Seat tubeB —Seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stackStem lengthSaddle rail height min (w/short mast)Saddle rail height max (w/short mast)Saddle rail height min (w/tall mast)Saddle rail height max (w/tall mast)
47 cm700c42.474.6°10.072.1°51.27.241.04.56.897.269.237.350.770.055.561.559.065.0
50 cm700c45.374.6°11.172.1°52.17.241.04.56.297.471.137.852.180.058.564.562.068.0
52 cm700c48.374.2°12.172.8°53.47.241.04.55.897.773.238.353.390.061.567.565.071.0
54 cm700c49.673.7°13.173.0°54.37.041.04.55.698.174.438.654.190.064.070.067.573.5
56 cm700c52.573.3°15.173.5°55.97.041.04.05.898.376.839.156.3100.067.073.070.576.5
58 cm700c55.373.0°17.173.8°57.46.841.14.05.799.279.339.658.1100.069.075.072.578.5
60 cm700c57.372.8°19.173.9°58.66.841.14.05.6100.181.139.960.1110.071.077.074.580.5
62 cm700c59.372.5°21.173.9°59.86.841.24.05.6101.082.940.362.0110.073.079.076.582.5
