Cervelo S5 Ultegra Di2 Carnelian

Season:2026

Brand:Cervelo

Code:0L0S5GUI2C

PURE SPEED

The S5 is a sport-wide benchmark for speed and aerodynamic efficiency—with the race results to back it up. From Wout van Aert winning the Green Jersey by the biggest margin of victory in modern history, to Simon Yates riding himself into the maglia rosa, S5’s iconic V-stem and bayonet fork are a fixture at the front of the professional peloton. The new S5 builds on that legacy of speed by getting even faster.

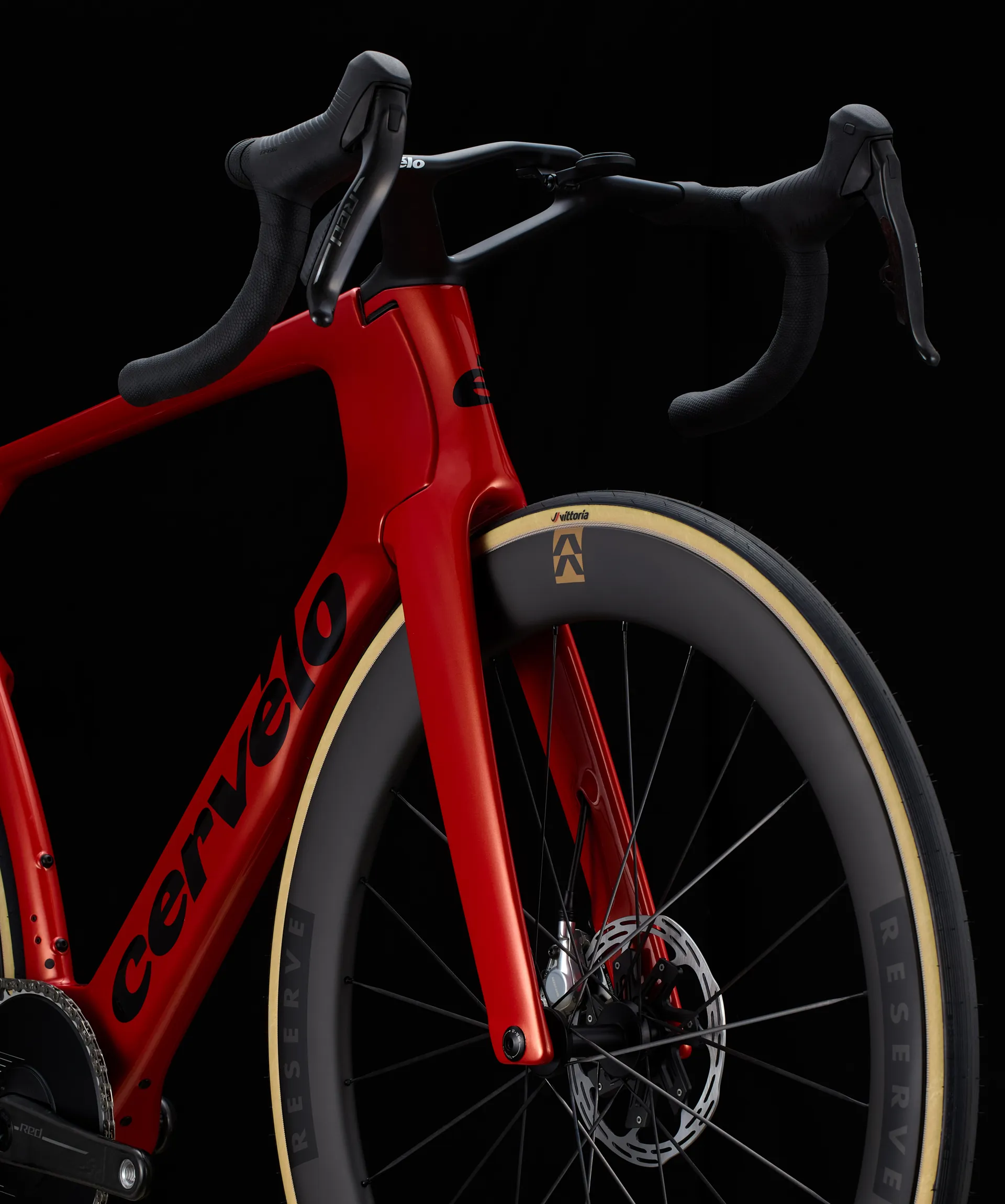

The new bike is over 6 Watts faster than its predecessor, 124 grams lighter, and retains the handling, poise, and stability that riders everywhere love. The biggest changes are at the front of the bike, where the most significant aerodynamic performance comes from. The fork legs and head tube got quite a bit deeper, and the all-new, one-piece handlebar/stem builds on the original V-stem concept—and gets even faster.

Cervélo and Reserve co-developed the new Reserve 57|64 Turbulent Aero wheels specifically for use in the S5 frame, completing the aerodynamic system.

Aero Aero Aero

The new S5 is 6.3 Watts faster than its predecessor. These gains are realized primarily at the front end of the bike, but the integration of the asymmetric profiles of the seat tube and rear wheel are a significant source as well. Cervélo has long been the aerodynamic leader in the peloton, and we’re confident that the new S5 is at least 5 Watts faster than the bikes of our competitors.

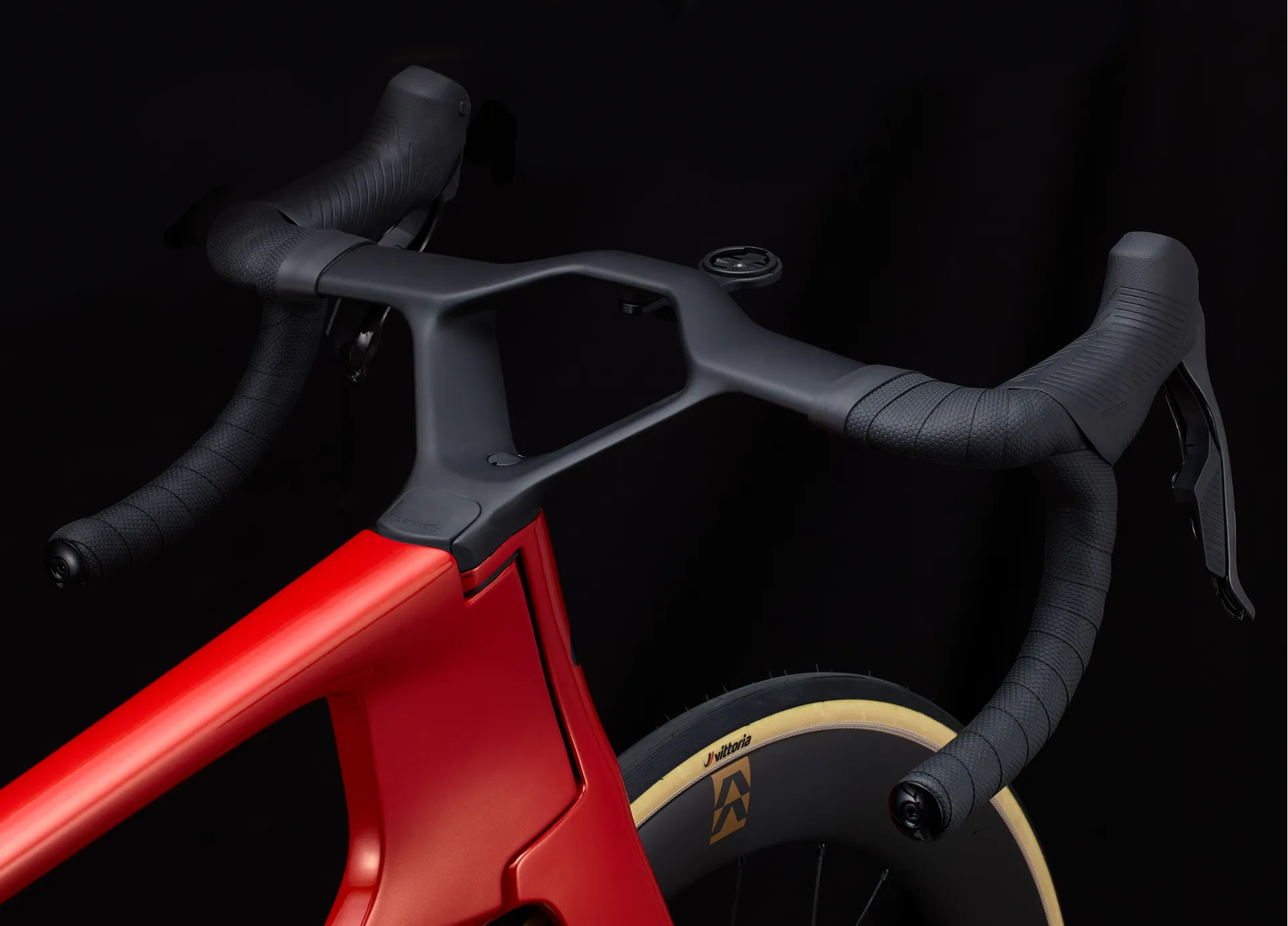

One-Piece Handlebar/Stem

HB19 uses our “Plus-Four” concept, meaning the dimension at the hoods is 4cm narrower than in the drops (e.g. 38cm/42cm). This approach helps riders maintain a more aero body position while their hands are on the hoods, and provides stability in the drops for descending and sprinting. All bar sizes are UCI-legal, even in light of the most recent regulations change.

Not just faster. Lighter, too.

Despite an increase in surface area, the new S5 is 124 grams lighter than its predecessor. While the increase in fork and head tube depth added weight, we optimized the layup and hardware to make the system lighter.

Reserve 57|64 Designed for S5:

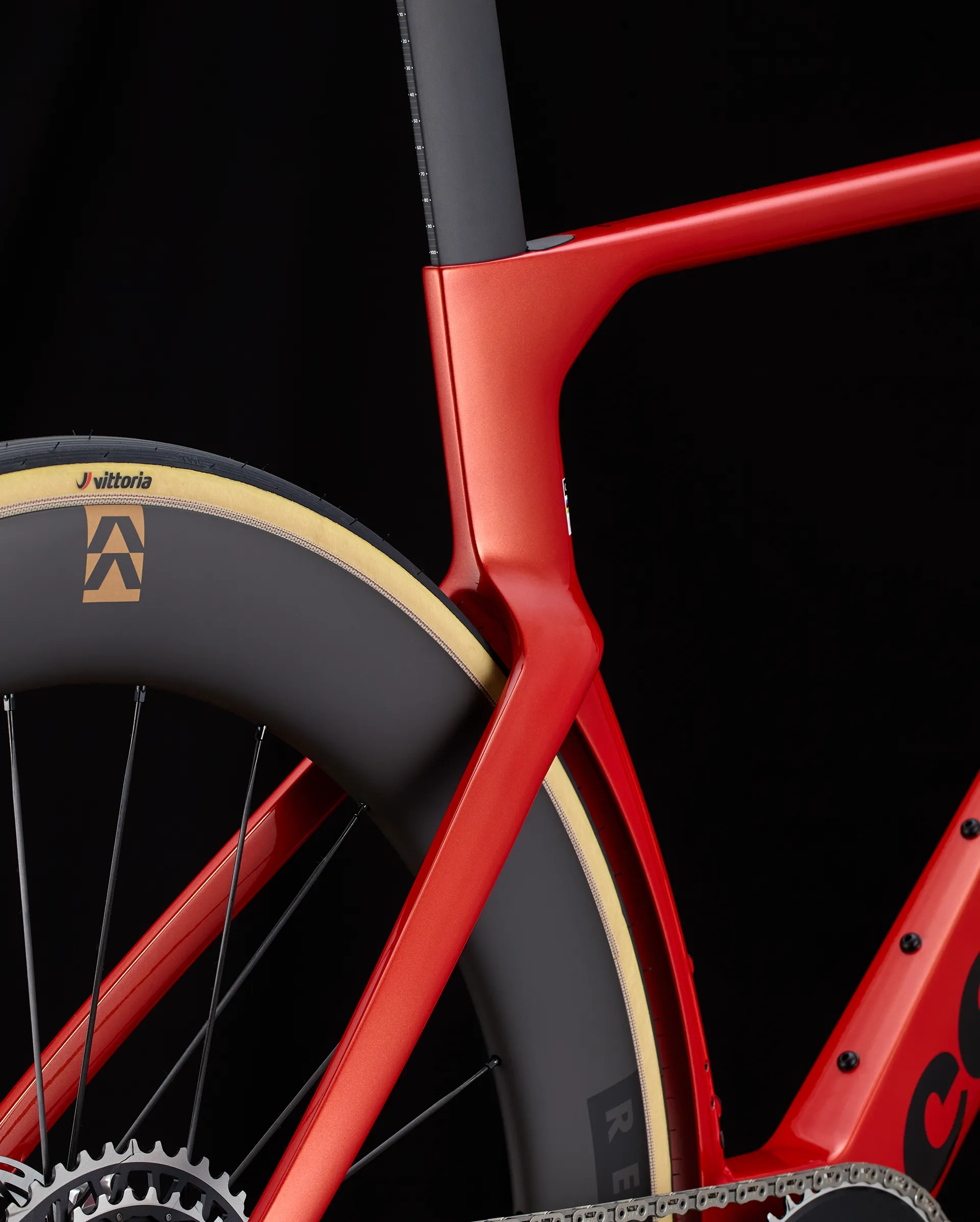

The new Reserve 57|64 wheelset was co-developed by Reserve and Cervélo, and designed for use in the new S5. The rear wheel’s asymmetry matches the seat tube, ensuring air flows smoothly over both. The new wheelset is 3 Watts faster than the 52|63 wheels, and weighs the same.

ONE PEACE OF MIND

The new S5’s one-piece bar and stem is a big part of the bike’s increase in aerodynamic performance, but aerodynamic improvements are limited if the bike doesn’t fit you perfectly. We made nine different size combinations, and when you buy an S5, your Authorized Cervélo Retailer will help you get the right bar/stem combo, for no additional cost.

Technical Information
Sizes48cm, 51cm, 54cm, 56cm, 58cm, 61cm
ForkCervélo All-Carbon, Bayonet S5 Fork
HeadsetFSA IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
Stem
Handlebar
SeatpostCervélo SP34 Carbon
SaddleSelle Italia NOVUS BOOST EVO SuperFlow Ti
Shifters
Brake Calipers
Brake Rotor
Front DerailleurShimano Ultegra, R8150
Rear DerailleurShimano Ultegra, R8150
CassetteShimano Ultegra, R8100, 11-34T, 12-Speed
ChainShimano M8100
CranksetShimano Ultegra, R8100, 52/36T
Bottom BracketFSA, BBright thread together for 24mm spindle
Wheels
Thru Axles
TiresVittoria Corsa Pro TLR G2.0 700x29c
Max Tire Width (Actual)34mm
Accessories- Cervélo Front Computer/Accessory Mount 887
- Cervélo Rear Accessory Mount
1-piece Handlebar/StemCervélo HB19 Carbon
Handlebar SizingSize 48 - 36cm
Size 51 - 38cm
Size 54 - 40cm
Size 56 - 40cm
Size 58 - 40cm
Size 61 - 40cm
Stem SizingSize 48 - 80mm
Size 51 - 90mm
Size 54 - 100mm
Size 56 - 100mm
Size 58 - 110mm
Size 61 - 120mm
Seatpost SizingSize 48 - 0mm
Size 51 - 0mm
Size 54 - 0mm
Size 56 - 0mm
Size 58 - 15mm
Size 61 - 15mm
Front Thru AxleCervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru AxleCervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Front WheelReserve 57TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear WheelReserve 64TA, DT Swiss 240, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
Shifter/Brake LeversShimano Ultegra, R8170
Crank SizingSize 48 - 165mm
Size 51 - 165mm
Size 54 - 170mm
Size 56 - 170mm
Size 58 - 172.5mm
Size 61 - 172.5mm
Brake RotorsShimano CL800 Centerlock
Power Meter4iiii Precision Pro, GEN3+ Dual Sided
Sizing Information

Geometry

4851545658
Reach |mm367376384392401
Stack |mm496519542565588
Head Tube Angle71°72°73°73.5°73.5°
Front Center |mm579580581588604
Bottom Bracket Drop |mm72.572.5707067.5
Head Tube Length |mm6987109130157
Top Tube Length |mm520535550565581
Seat Tube Angle73°73°73°73°73°
Standover Height |mm707.5729.2747.4775.3805.9
Trail |mm57.15757.15757
Wheel Size700C700C700C700C700C
Fork Offset |mm5852464343
Wheelbase |mm973974975982999
Chainstay Length |mm405405405405405

Frame Sizing

How do I determine what bike size I need?

The age-old question, isn’t it? There are many factors that go into bicycle sizing and fit, particularly for high-performance bikes. Without being able to measure you and see you on a bike, precise fit information is difficult to supply. It’s also not unusual for someone to be able to ride two different sizes depending on their goals, flexibility, and fit tolerance.
