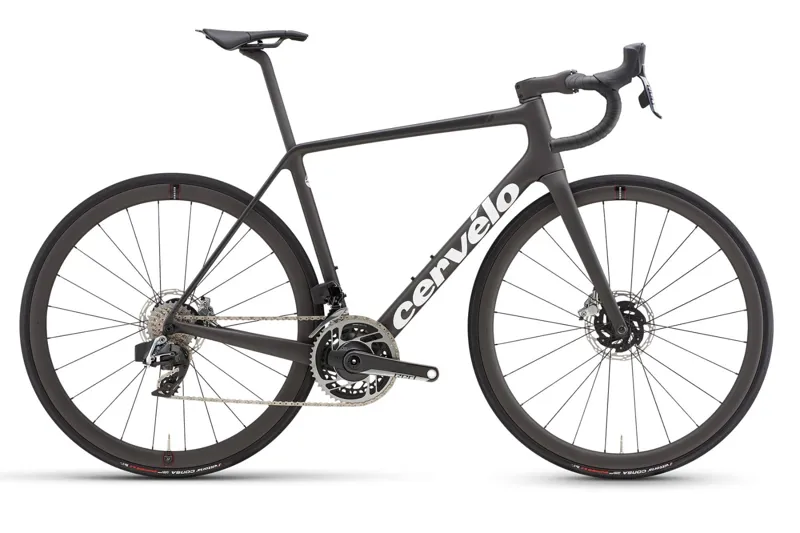

Cervelo R5 Force eTap AXS Five 2022 Black Carbon Road Bike

Aerodynamic drag is the major factor affecting a bike and rider - it can account for up to 90% of the overall resistance that a rider must overcome. There are several types of drag relevant for us. First, pressure drag. As a body (in this case a bike and rider) passes through the air, it forces the air molecules to move out of the way in order to pass through them. These molecules push back on the body, creating pressure. The component of this pressure that faces aft (to the rear of the body) is called pressure drag.

Secondly, there is friction drag. Air, like all fluids, has viscosity (or "thickness"). The air molecules that come into contact with the body stick to its surface and stay stationary in relation to the body. As the body continues through the air, other air molecules pass by the stuck molecules as they flow around the body in layers, following parallel paths. This is the laminar boundary layer. The viscous nature of air creates a shear force, or friction drag.

At some point on nearly all bodies, laminar flow cannot be maintained and the air molecules tumble and mix instead of flowing smoothly. The transition point is where this turbulent boundary layer begins. This behaviour of flow is related to a parameter called the Reynolds number, which is determined by several physical characteristics of the flow. The laminar flow regime exists up to Reynolds numbers of around 10,000. Beyond Reynolds numbers of 10,000, the flow transitions to “turbulent” flow, as shown in the figure below.

Due to its mass, moving air has inertia and therefore cannot easily follow high-curvature surfaces. Under these conditions air separates from the body, creating low-pressure regions that "pull" on the surface, contributing to more drag. If the trailing edge of the body fails to guide the air neatly back together again, there is a “stalled flow” — a region of recirculating air that has low pressure. This low pressure again pulls on the surface, adding still more drag.

Indesigning our bikesand components to minimize aerodynamic drag, there are two different parameters we can affect. The first is the drag coefficient, which is a factor based on the shape of a body and how the air flows around it. Different shapes have different effects on drag. For example, a circular shape has roughly 24 times the drag of our TrueAeroTM tube shape. The orientation of the tube shapes to the airflow also affects its drag: the seat post and down tubes, for example, are presented at an angle, meaning the air hits a shape that’s closer to an ellipse, changing the drag coefficient.

The other parameter we can control is the frontal area. This is intuitive: the larger the area, the bigger the drag. Cervelo engineers take this into account: for example, their time trial, triathlon and aero road bikes are designed so that the rider and bike (as an integrated system) present the smallest frontal area possible, for maximum aerodynamic advantage.

The drag coefficient, CD, and the frontal area, A, are related to the total drag a body sees by the following equation:

The other parameters in this equation are the velocity of the body through the air, V, and the density of the air, ρ (Rho). This is also the reason that many bicycle speed records attempts are made at high altitude, since the lower air density has a direct reduction on drag.

These aerodynamic forces are the largest source of drag on a bike and rider, up to 90% of the total resistance that they see. This means that designing Cervelo bikes and components to minimize drag, by minimizing both CD and A, is an efficient means of making the rider faster. However, minimizing the drag on the rider, through body position, component design or other means, is also important and so a systems approach is needed to ensure the fastest overall result. A bike never rides itself, and so Cervelo don’t design or test their bikes without a rider for this reason.
