Top Fuel 9.9 is a top-shelf full suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts.
Top Fuel 9.9 is a top-shelf full suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts.
Trek

Trek Top Fuel 9.9 XTR 2022 Carbon Full Suspension Mountain Bike Carbon Red Smoke/Trek Black

£9,300.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

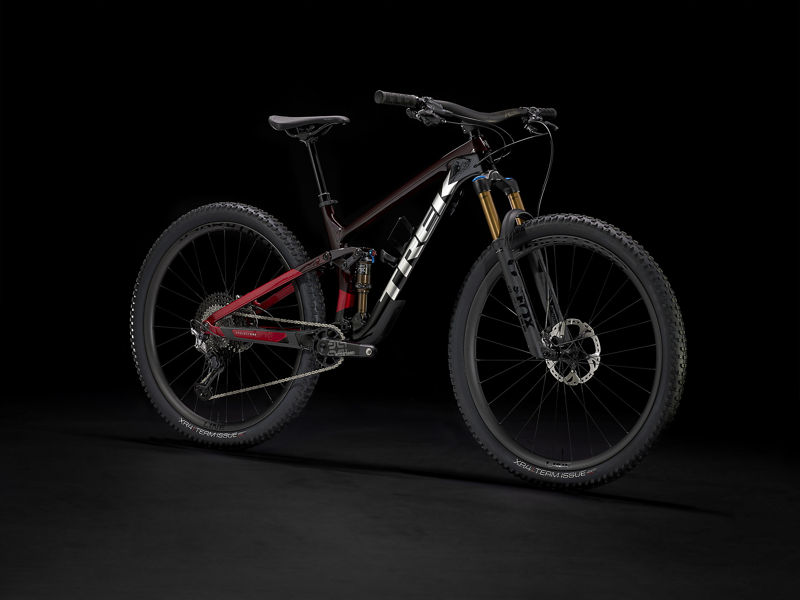

Trek Top Fuel 9.9 XTR 2022 Carbon Full Suspension Mountain Bike Carbon Red Smoke/Trek Black

Season:2022

Brand:Trek

Code:35325CBNREDSMKBLK

Top Fuel 9.9 is a top-shelf full suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.

It's right for you if...

You're looking for the fastest way to a good time on the trail, and you're willing to crack open the piggy bank for top-shelf suspension and lots of lightweight carbon.

The tech you get

A light and stiff full carbon frame, 130 mm Fox Factory 34 fork, 120 mm of rear travel with a Fox Factory Float shock, and a smooth and precise Shimano XTR 1x12 drivetrain. Plus, wide carbon Bontrager Kovee Pro 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, and lots of carbon everywhere.

The final word

With Top Fuel 9.9, you get a smooth, fast ride that doesn't shy away from rowdy trails. An OCLV Mountain Carbon frame, top-of-the-line suspension and carbon components join forces for a nimble and insanely fun ride.

Why you'll love it

  1. The OCLV Carbon RSL integrated bar/stem is ultra-light and ultra-comfortable, and it looks awesome
  2. Wider Kovee Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction
  3. This bike’s killer suspension set-up isboth efficient and ready to party
  4. Make it yours: it's fully customisable through Project One

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
FrameOCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
ForkFox Factory 34, Float EVOL air spring, GRIP2 2-position damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel

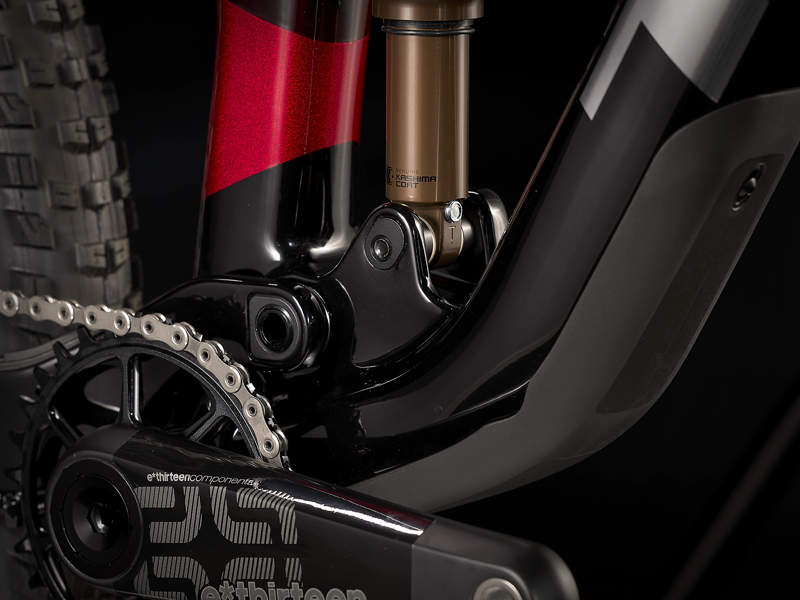

ShockFox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185x50 mm
Wheels
Wheel frontNEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rearBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru axle
Skewer rearBontrager Switch thru axle, removable lever

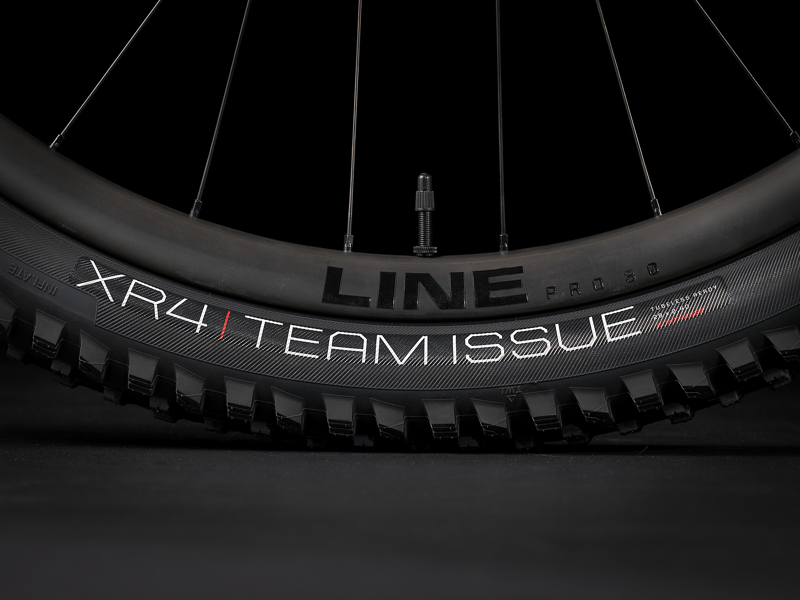

TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
*Tyre partSize: S, M, M/L, L, XL
Bontrager TLR sealant, 180 ml/6 oz
Size: S, M, M/L, L, XL
Bontrager TLR valve, 50 mm
Rim stripBontrager TLR
Drivetrain
ShifterShimano XTR M9100, 12-speed

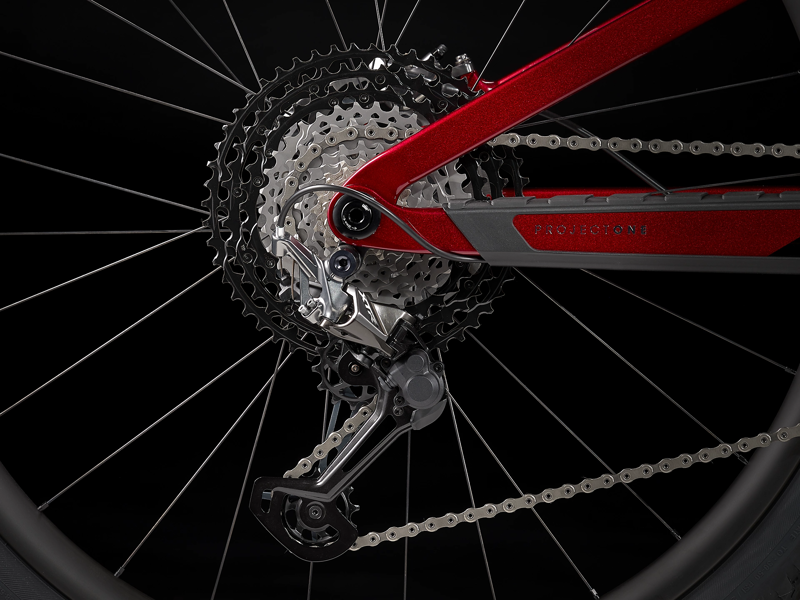

Rear derailleurShimano XTR M9100, Shadow Plus, long cage, 51-T max cog
*CrankSize: S, M, M/L, L

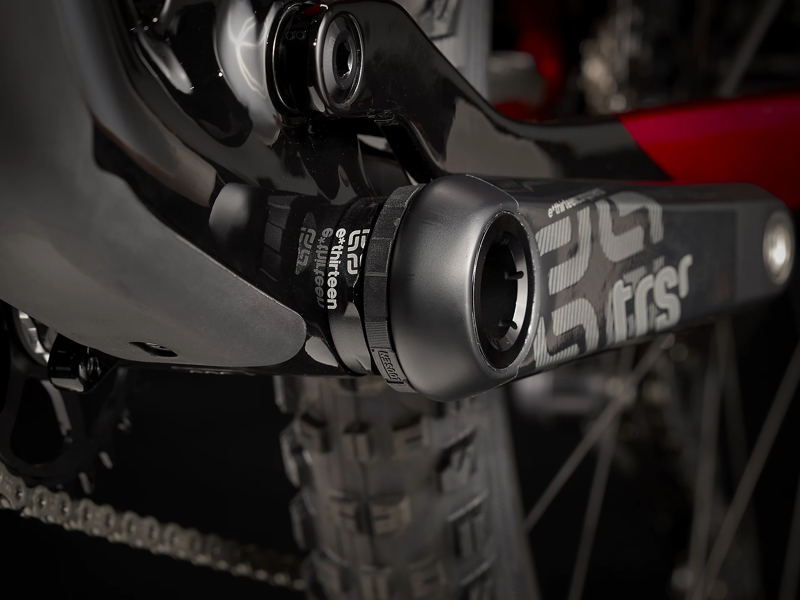

E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length
Size: XL
E*thirteen TRS Race Carbon, 30T, 55mm chainline, 175mm length
Bottom bracketE*thirteen BB20-P, BSA threaded, 73mm width
CassetteShimano XTR M9101, 10-51, 12-speed
ChainShimano XTR M9100, 12-speed
Components
SaddleBontrager Arvada Pro, carbon rails, 138 mm width
*SeatpostSize: S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size: M, M/L
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Integrated Bar StemSize: S

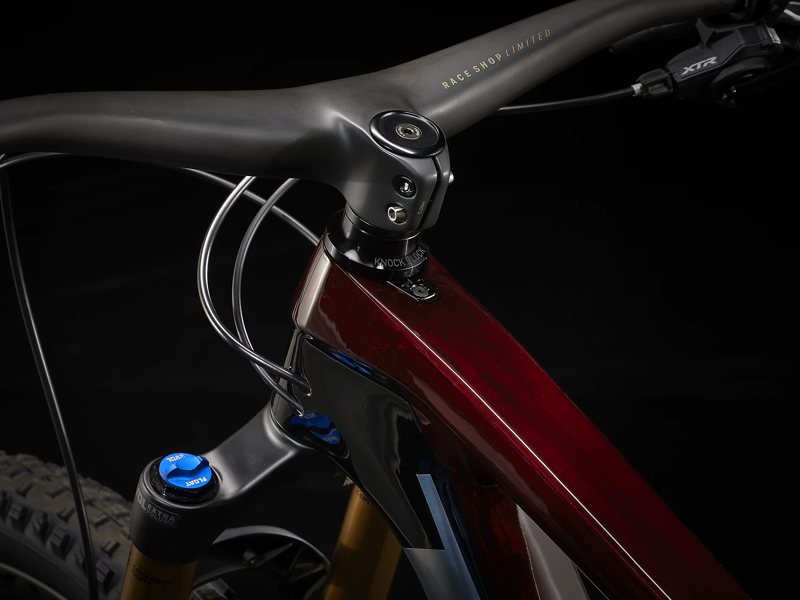

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Size: M, M/L, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
GripsBontrager XR Trail Elite, nylon lock-on
Head setKnock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

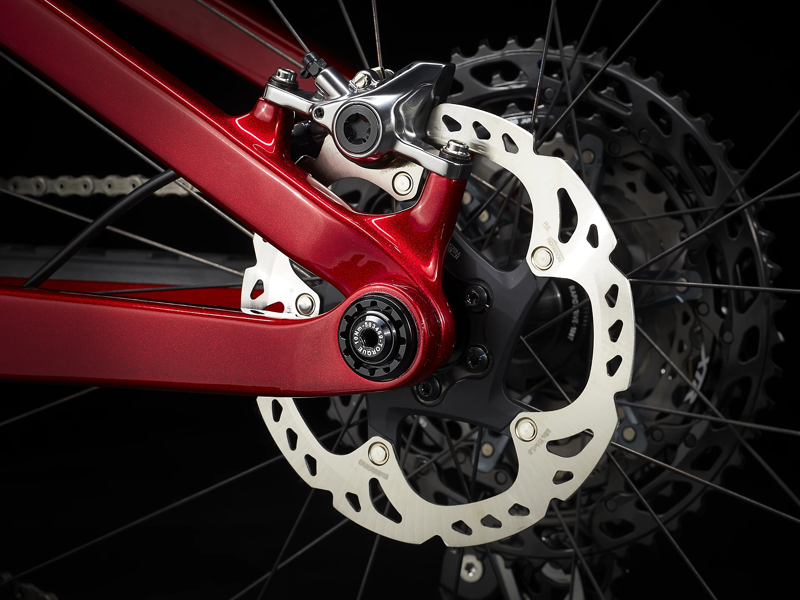

BrakeShimano XTR M9100 hydraulic disc
*Brake rotorSize: S, M, M/L, L, XL
Shimano RT86, 160 mm, 6-bolt
Size: S, M, M/L, L, XL
Shimano RT86, 180 mm, 6-bolt
Weight
WeightM - 25.90 lbs / 11.75 kg (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Technical Information

Features

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Will my bike have a curved top tube?

The smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. The larger frames (M and up) have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.

Quick and in control

Balanced 120 mm front and rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

Hassle-free routing

Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

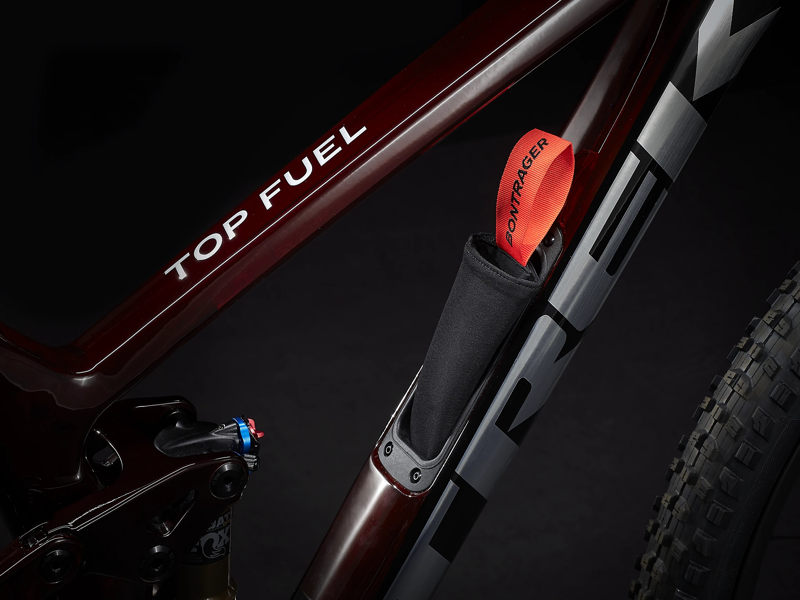

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size numberFrame size letterGeometry positionWheel sizeA — Seat tubeB — Seat tube angleEffective seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
15.5SHigh29"39.570.4°76.4°10.066.4°56.734.33.143.44.411.5115.071.942.459.2
15.5SLow29"39.570.0°76.0°10.066.0°56.833.83.643.54.411.8115.171.542.059.5
17.5MHigh29"42.070.4°76.4°10.066.4°59.734.33.143.44.411.5118.074.045.459.2
17.5MLow29"42.070.0°76.0°10.066.0°59.833.83.643.54.411.8118.173.545.059.5
18.5MLHigh29"43.570.4°76.4°10.566.4°61.434.33.143.44.411.5119.774.546.959.7
18.5MLLow29"43.570.0°76.0°10.566.0°61.533.83.643.54.411.8119.874.046.560.0
19.5LHigh29"45.070.4°76.4°11.066.4°63.034.33.143.44.411.5121.475.048.460.1
19.5LLow29"45.070.0°76.0°11.066.0°63.133.83.643.54.411.8121.574.548.060.5
21.5XLHigh29"50.070.4°76.4°12.566.4°65.334.33.143.44.411.5124.076.050.461.5
21.5XLLow29"50.070.0°76.0°12.566.0°65.433.83.643.54.411.8124.175.550.061.8
