Frame

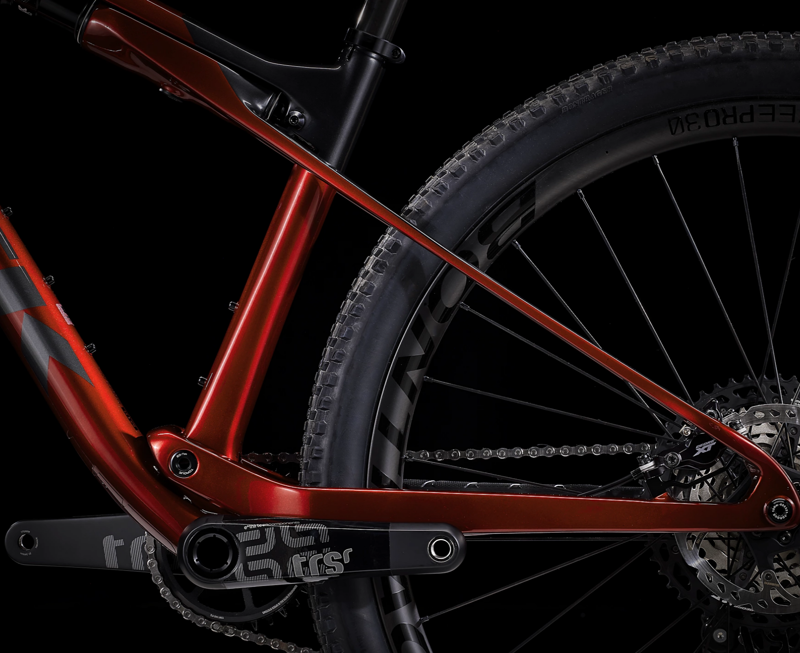

OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork

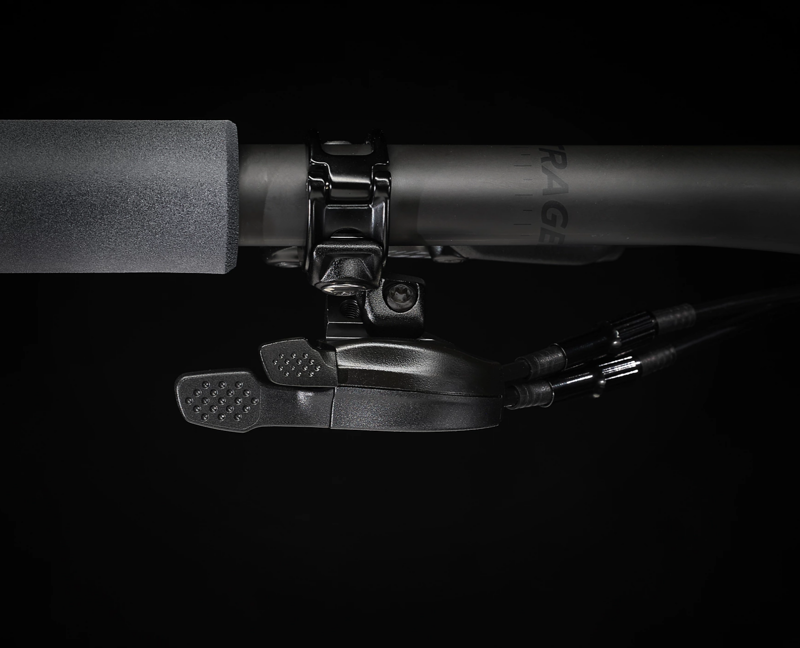

Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
Shock

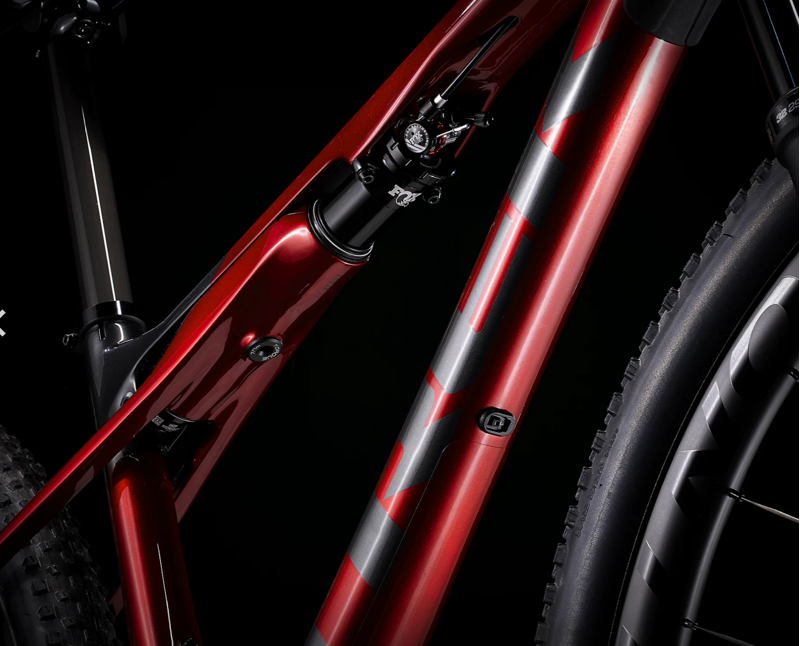

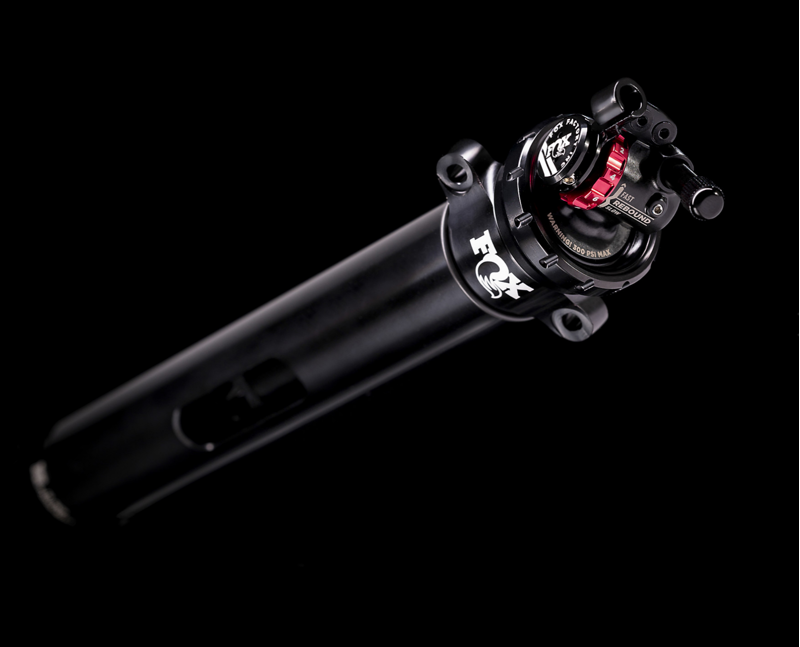

Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm
Max compatible fork travel
120 mm (531 mm axle-to-crown)
Wheel front
Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost 148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready
Tyre

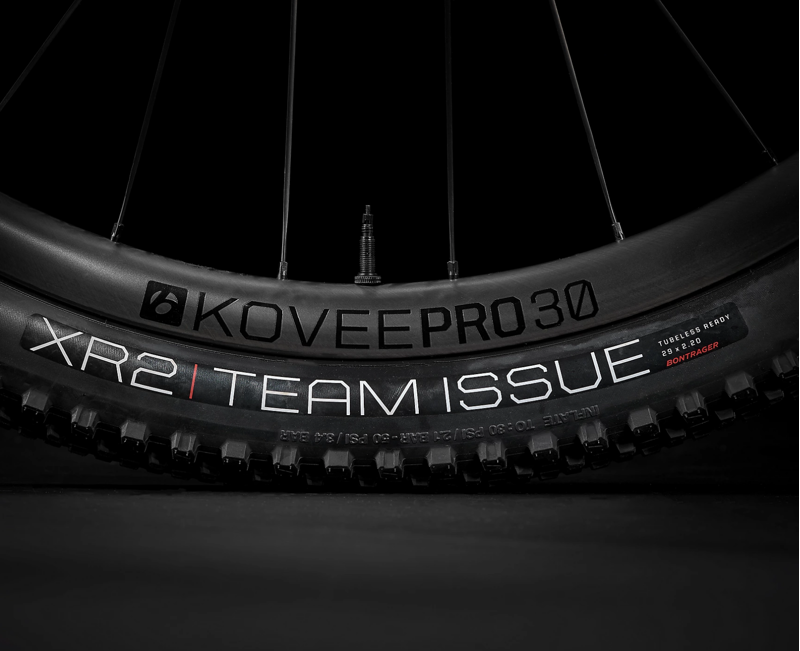

Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.20" Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed
Rear derailleur

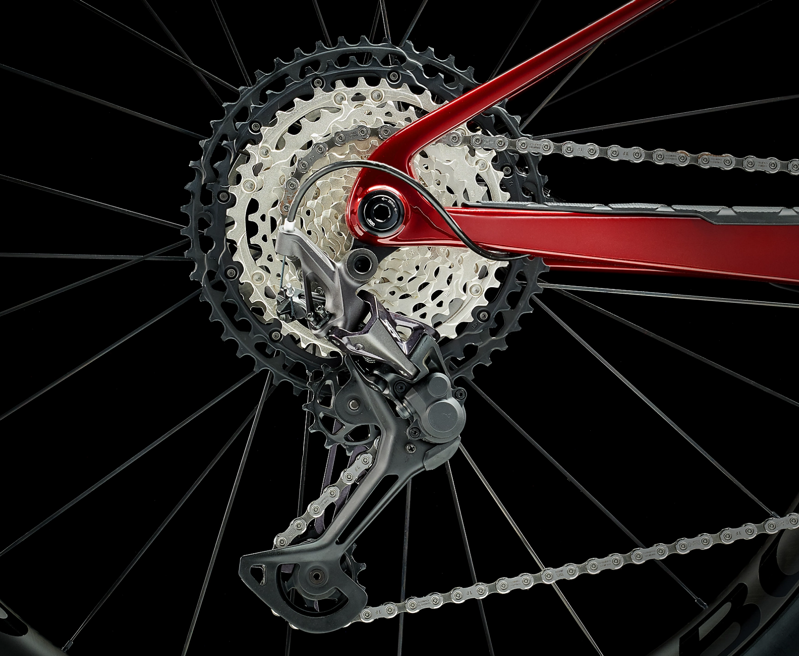

Shimano XT M8100, long cage

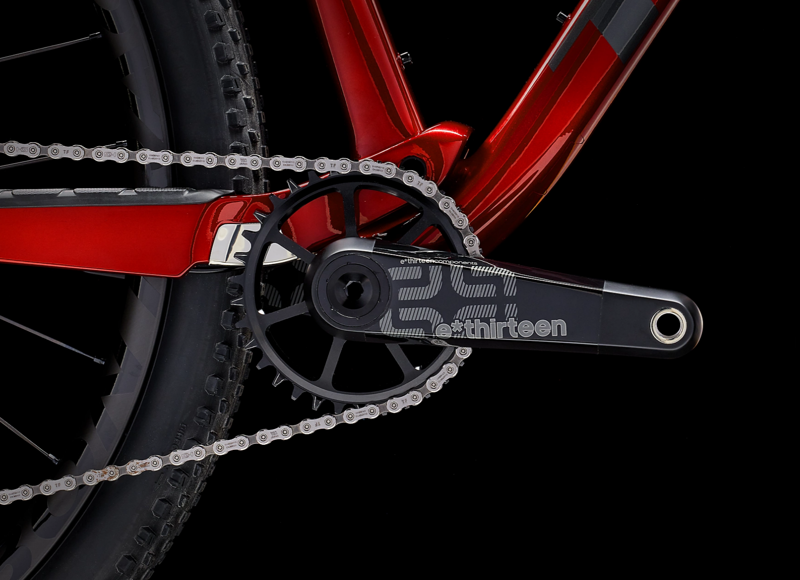

*Crank
Size: S

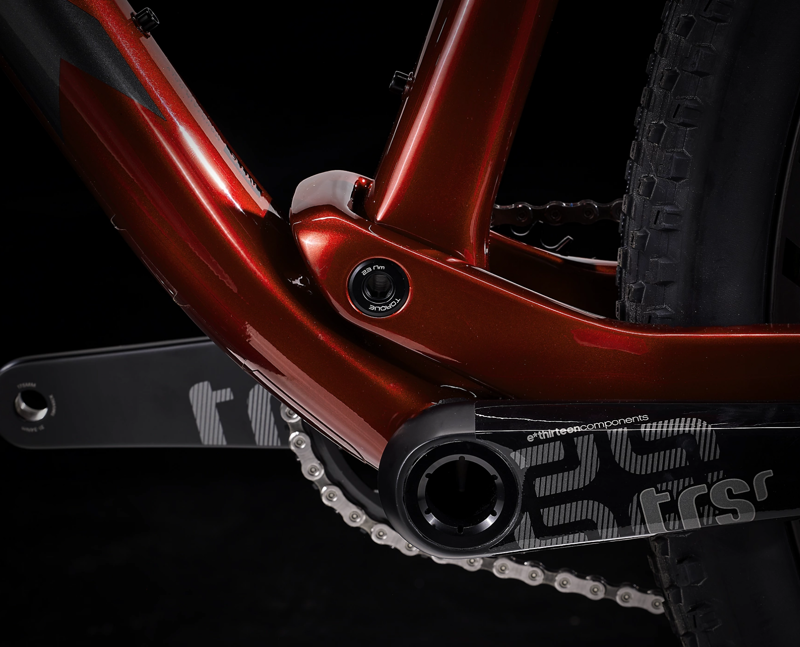

e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 170 mm length
Size: M, M/L, L, XL
e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 175 mm length
Bottom bracket
e*thirteen BB20-92
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano Ultegra/XT M8100, 12-speed
Max. chainring size
36T
Saddle
Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
*Seatpost
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size: M, M/L, L, XL
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length

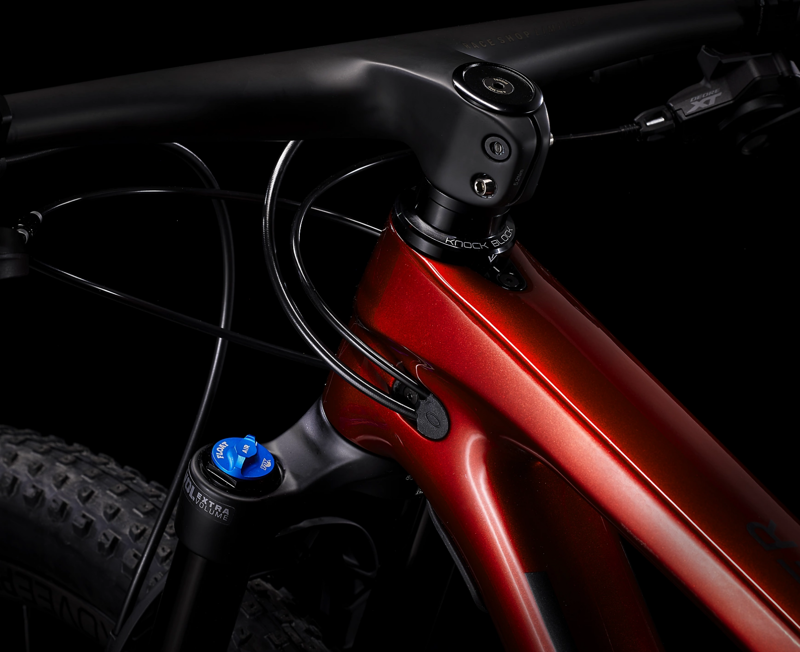

*Integrated Bar Stem
Size: S, M
Size: M/L, L
Size: M/L, L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
Size: XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips
ESI Chunky
Head set
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
Shimano Deore XT M8100 hydraulic disc
*Brake rotor
Size: S, M, M/L, L, XL
Shimano RT76, 6-bolt, 160 mm
Size: S, M, M/L, L, XL
Shimano RT76, 6-bolt, 180 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
Weight
M - 10.55 kg / 23.26 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
