The tubeless-ready wheels, RockShox suspension, wide range of gearing and quality parts make it an outstanding choice for new mountain bikers who know they want a serious bike for their money. It’s fully capable of taking on big trail adventures and XC races.
- This is one of our most popular bikes for good reason. You get all the value, plus all the versatility – it's a totally race-worthy mountain bike, with rear rack mounts if you use it for commuting too
- The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
- Setting your wheels up tubeless reduces the overall weight of your bike and the chances that you’ll get a flat
- The 1x drivetrain gives you all the gears you need, and none you don’t

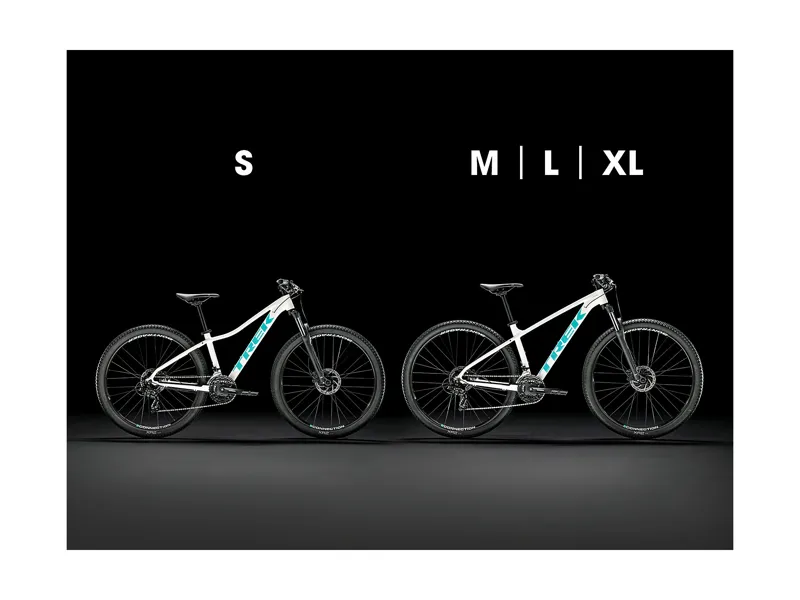

- The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset

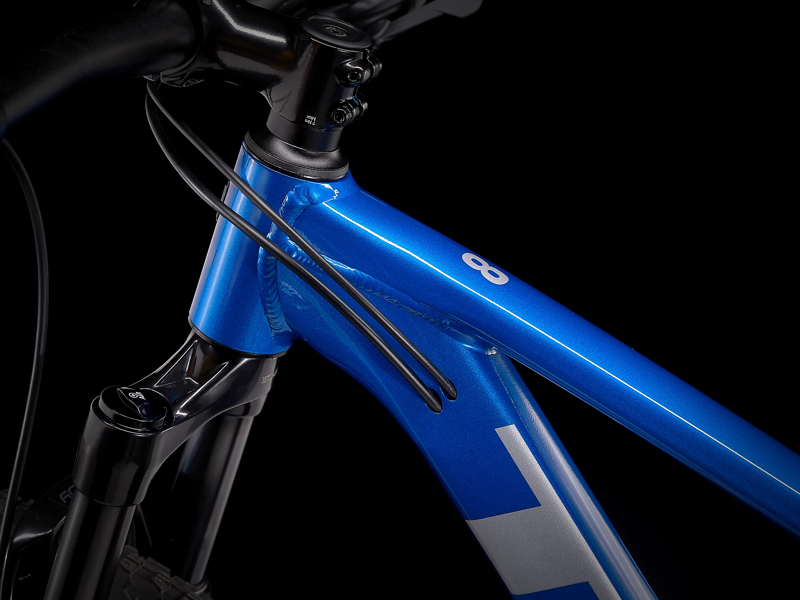

Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork: Size: XXS , XS

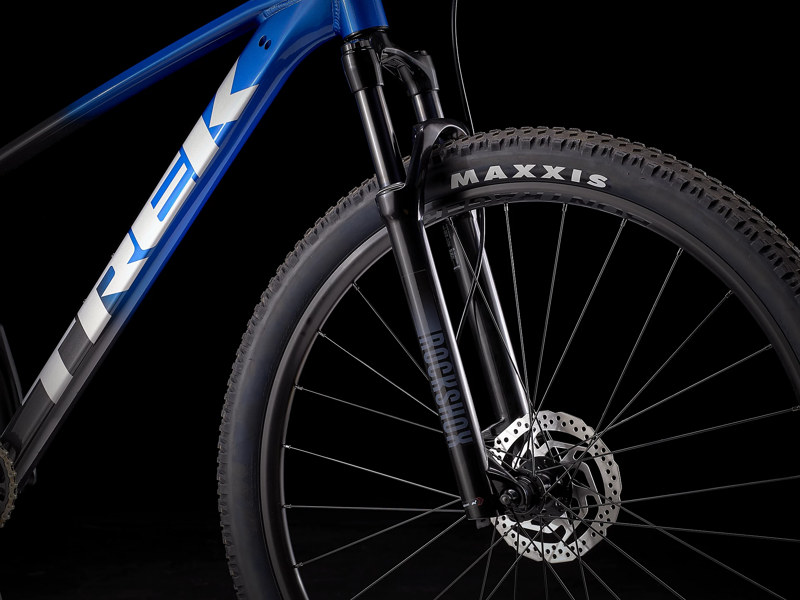

RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 80 mm travel
Size: S , M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 100 mm travel
Max compatible fork travel: 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Wheels
Hub front: Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

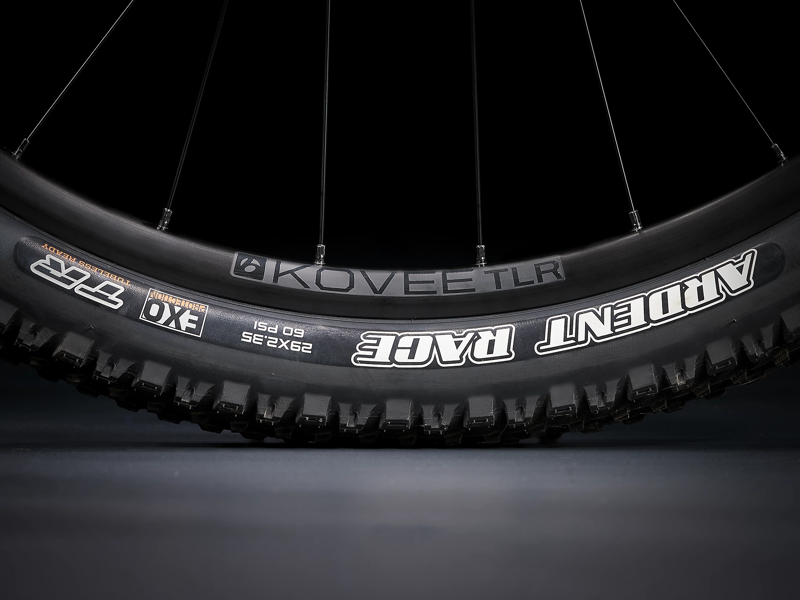

Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel
*Tyre: Size: XXS
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 26x2.40"
Size: XS , S
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35"
Size: M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.35"
Size: M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.20"
Max tyre size: Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Drivetrain
Shifter: SRAM SX Eagle, 12-speed
Rear derailleur: SRAM SX Eagle

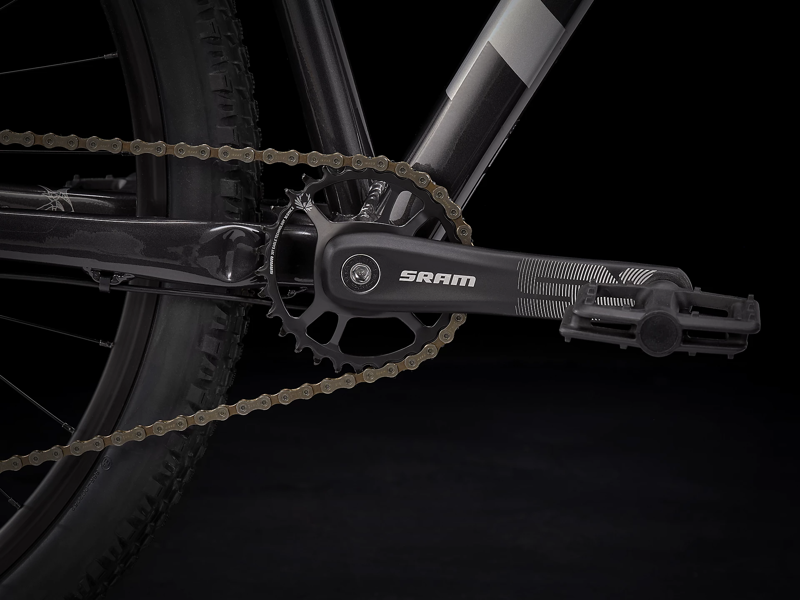

*Crank: Size: XXS
SRAM SX Eagle, 30T steel ring (49mm chainline), 155 mm length
Size: XS , S , M
SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length
Size: ML , L , XL , XXL
SRAM SX Eagle, 30T steel ring (49mm chainline), 175 mm length
Bottom bracket: Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette: SRAM PG-1210 Eagle, 11-50, 12-speed
Chain: SRAM SX Eagle, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x/2x: 34T, 3x: 42T
Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar: Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
*Stem: Size: XXS
Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length
Size: XXS , XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set: Semi-integrated, 1-1/8"

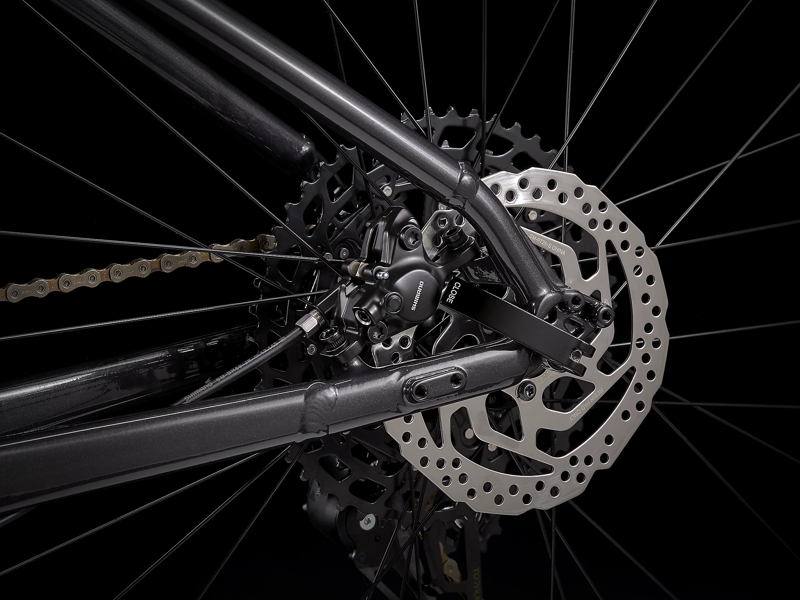

Brake: Shimano MT200 hydraulic disc
*Brake rotor: Size: XXS , XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt,160 mm
Size: L , XL , XXL
Shimano RT26, 6-bolt,180 mm
Weight
Weight: M - 13.20 kg / 29.1 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
