Frame Size XS

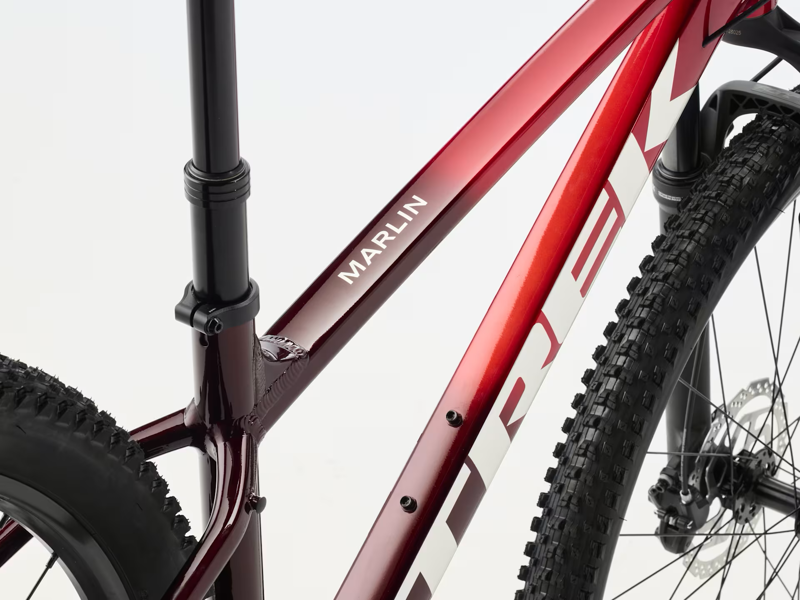

Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Frame Size ML, M, L, S, XL, XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork Size XS, S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Fork Size ML, M, L, XL, XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Hub front
Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
173x5 mm QR
Rim Size ML, M, XS, L, S, XL, XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Rim Size ML, M, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyre Size XS, S
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40''
Tyre Size ML, M, L, XL, XXL
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40''
Rim strip
Bontrager TLR
Shifter
SRAM SX Eagle, 12-speed

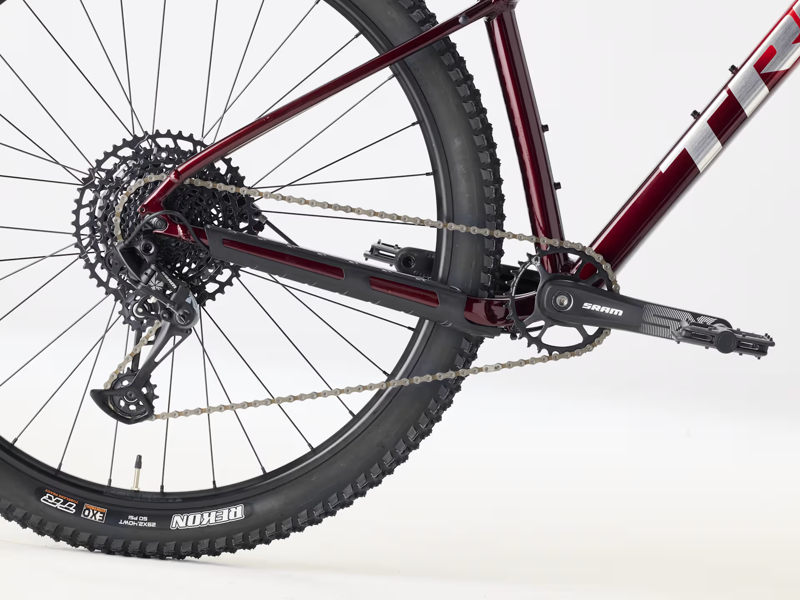

Rear derailleur
SRAM NX Eagle, 12-speed
Crank Size M, XS, S
SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
Crank Size ML, L, XL, XXL
SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette
SRAM PG-1210 Eagle, 11-50, 12-speed
Chain
SRAM SX Eagle, 12-speed
Pedal
VP-536 nylon platform
Saddle
Bontrager Verse Short, stainless steel rails
Seatpost Size XS, S
TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length
Seatpost Size M
TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length
Seatpost Size ML, L
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length
Seatpost Size XL, XXL
TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length

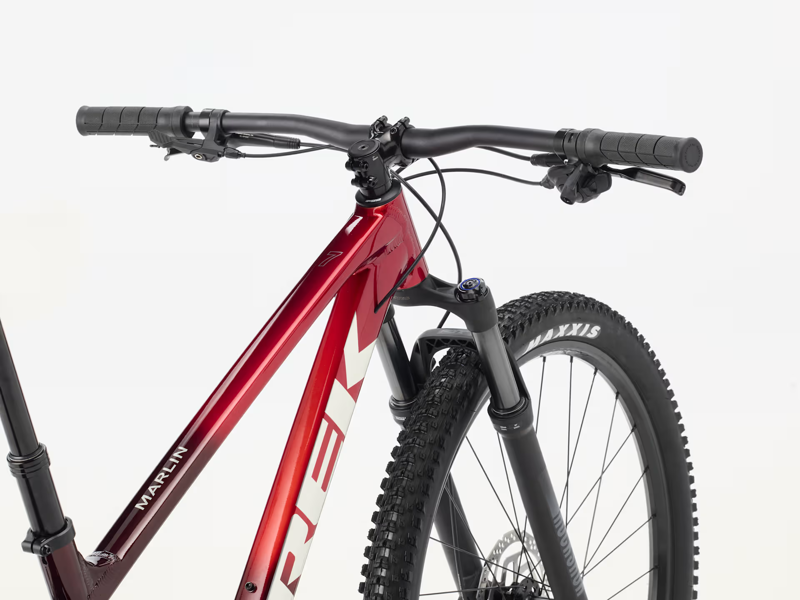

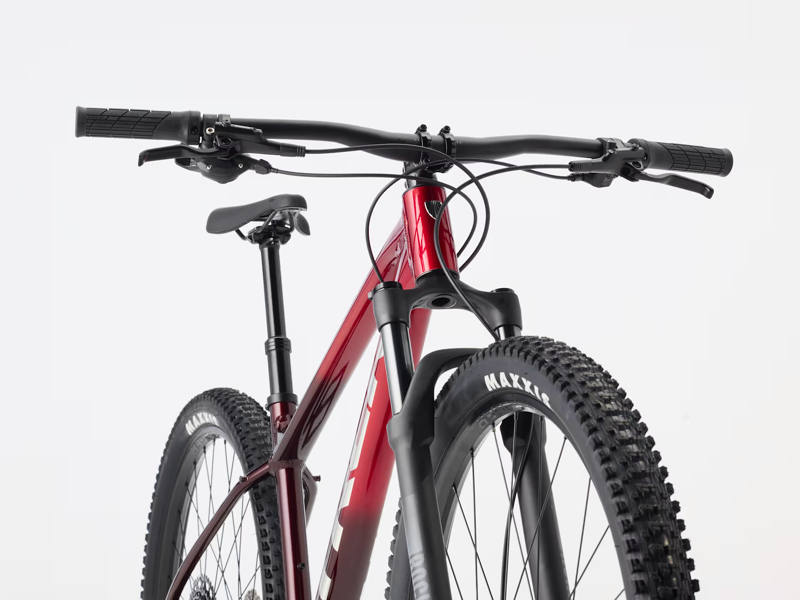

Handlebar Size XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Handlebar Size S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Handlebar Size ML, M, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Trek Line Comp, nylon lock-on
Stem Size XS, S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Stem Size ML, M, L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Stem Size XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Stem Size XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
Semi-integrated, 1-1/8"
Brake
Shimano MT200 hydraulic disc
Brake rotor Size ML, M, XS, L, S, XL, XXL
Shimano RT26, 6-bolt, 160 mm
Brake rotor Size ML, M, L, XL, XXL
Shimano RT26, 6-bolt, 180 mm
Brake Set
Shimano MT200 hydraulic disc
Weight M
14.15 kg / 31.2 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
