The Marlin 6 gives you upgrades that you'll notice on every ride, like the smooth, simple shifting Shimano drivetrain. Extra-strong double-walled rims and powerful hydraulic disc brakes give you durability and stopping power for your most rugged adventures on the trail, in town, and everywhere in between.
- The 1x drivetrain gives you all the gears you need, and none you don’t
- Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- Like every Trek, it's backed by a lifetime warranty
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset

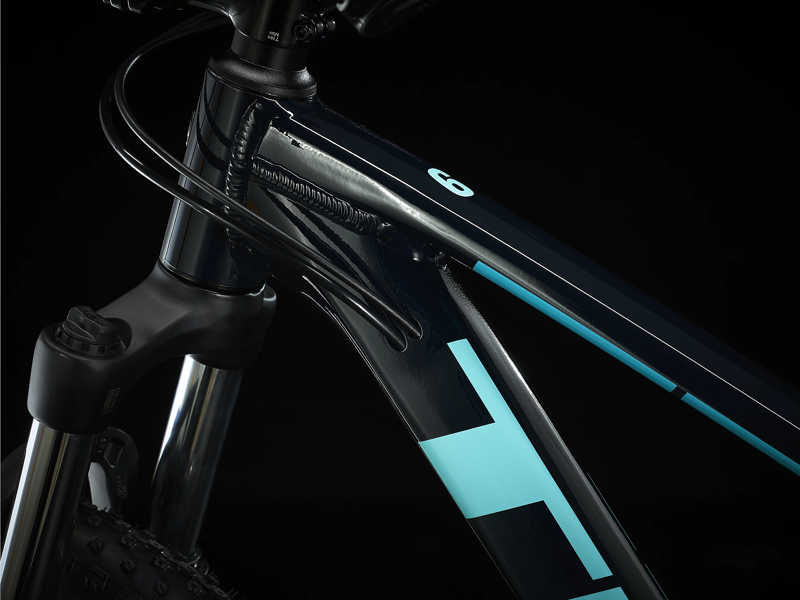

Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork: Size: XS

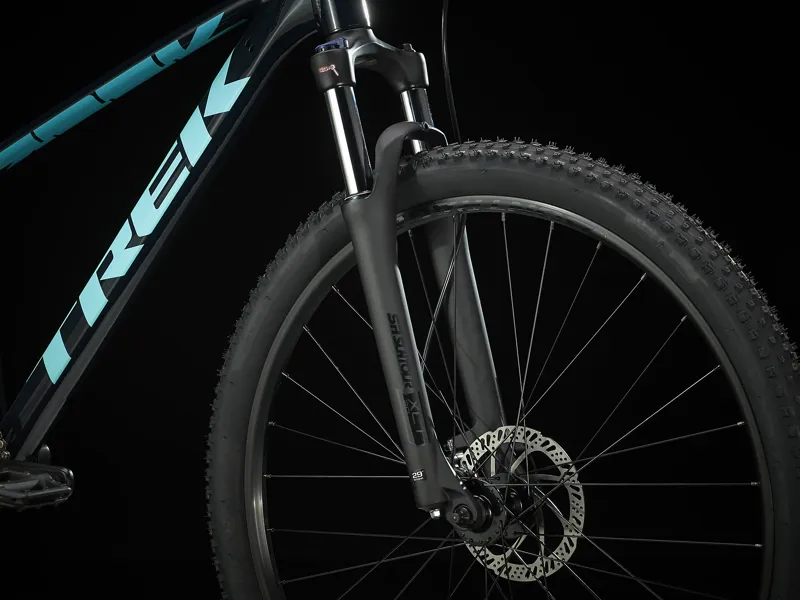

SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 80 mm travel
Size: S , M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel
*Tyre: Size: XS , S

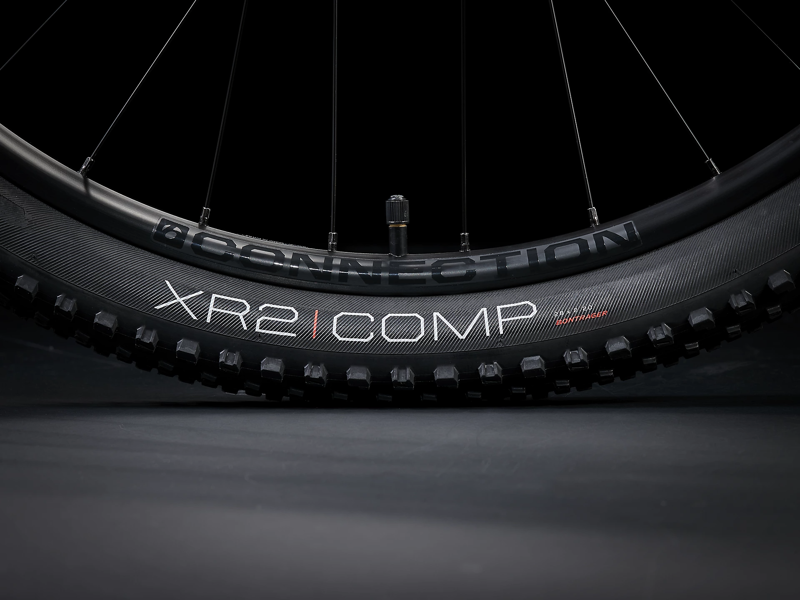

Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Drivetrain
Shifter: Shimano Deore M4100, 10 speed

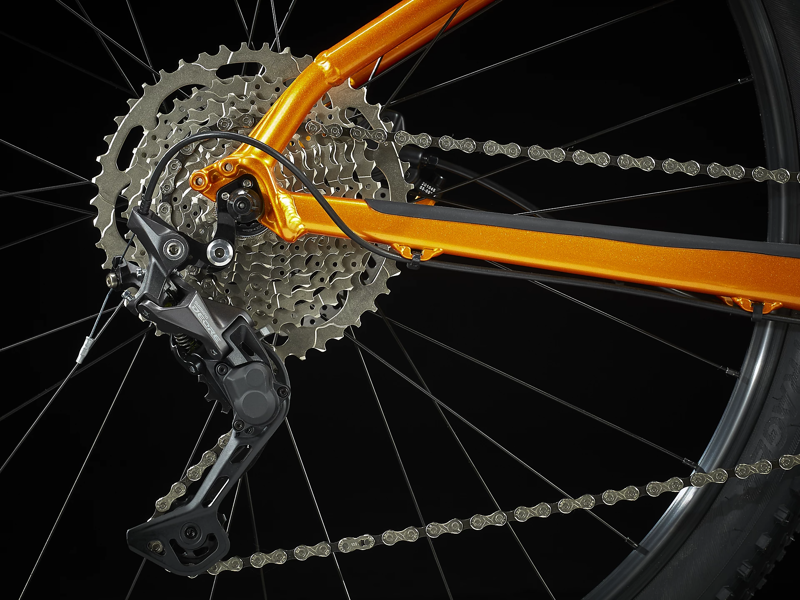

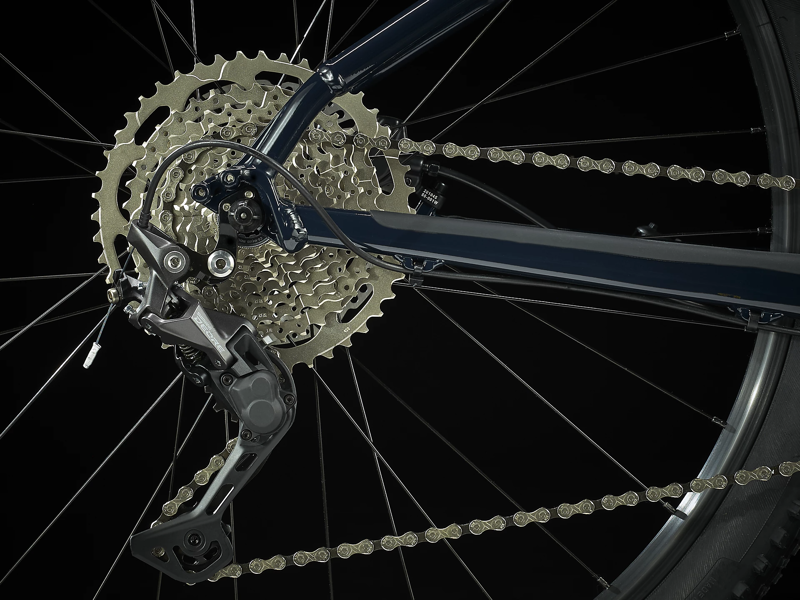

Rear derailleur: Shimano Deore M5120, long cage

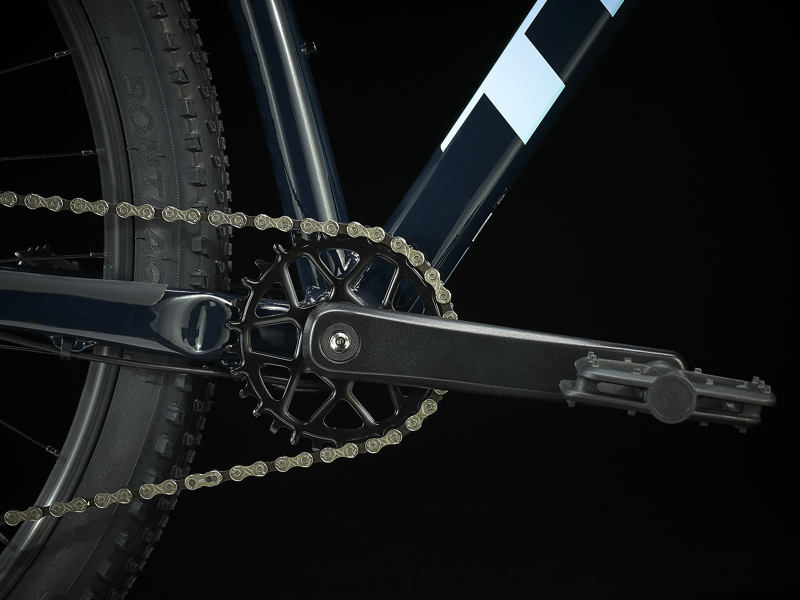

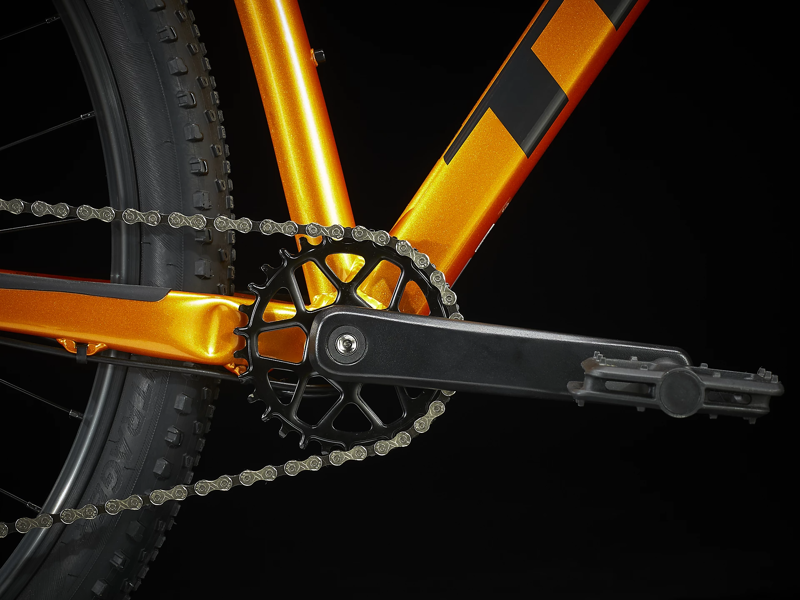

Crank: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom bracket: VP BC73, 73 mm, threaded cartridge
Cassette: Shimano Deore M4100, 11-46, 10-speed
Chain: KMC X10, 10-speed
Pedal: VP-536 nylon platform
Components

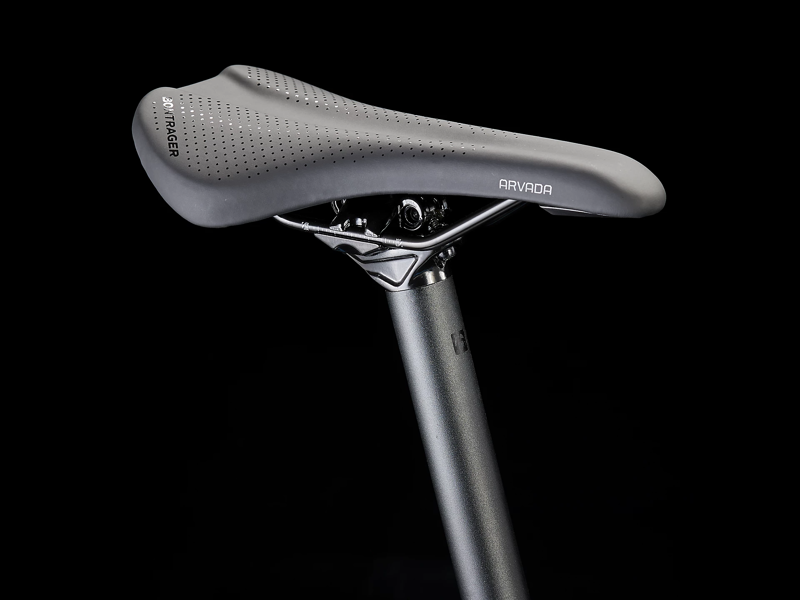

Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

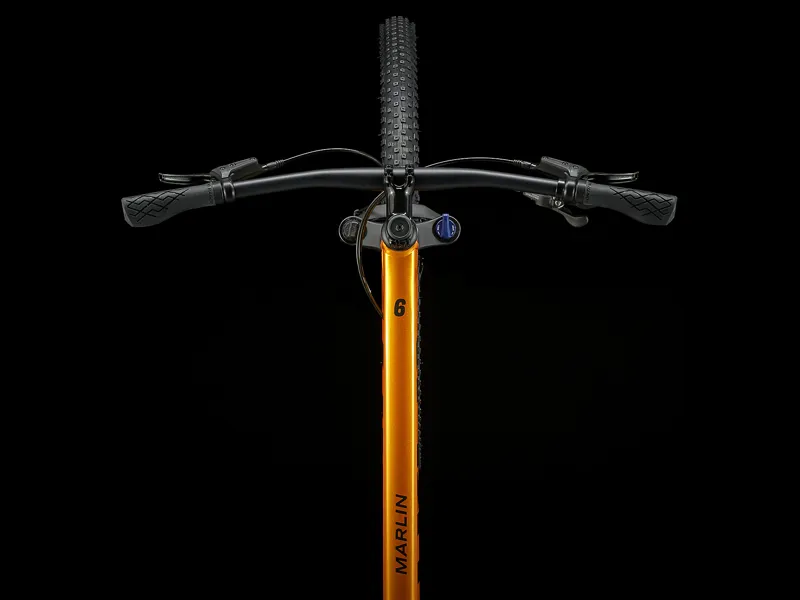

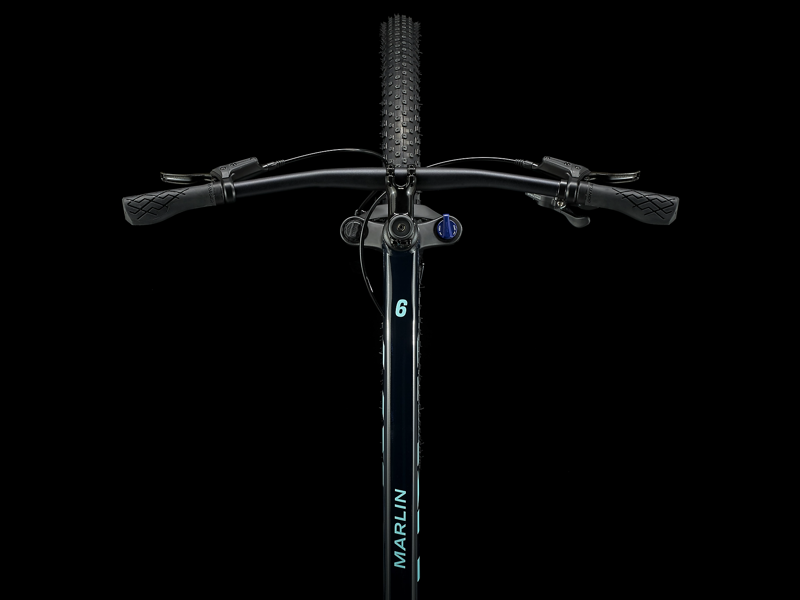

*Handlebar: Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips: Bontrager XR Endurance Comp
*Stem: Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set: Semi-integrated, 1-1/8"

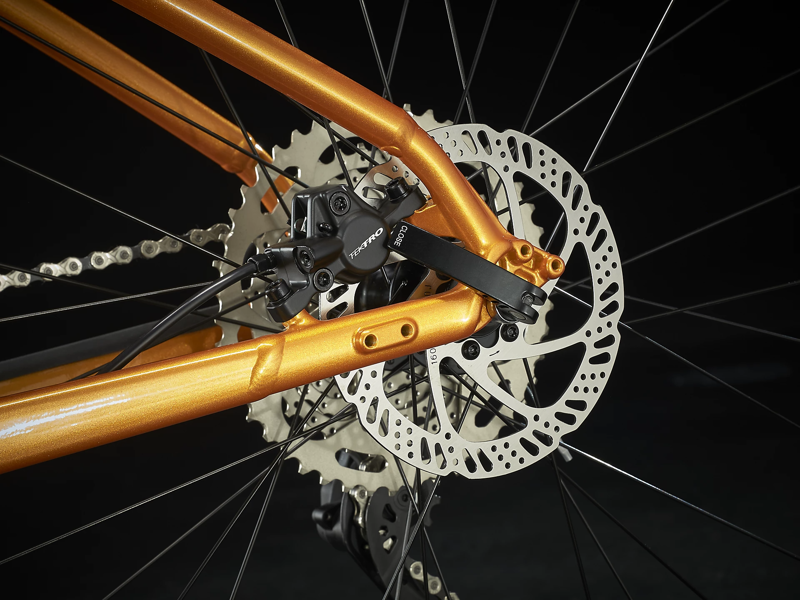

*Brake: Size: XS , S
Tektro HD-M276 hydraulic disc, short-reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
Weight
Weight: M - 31.11 lbs / 14.11 kg
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
