Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail
Trek

Trek Marlin 5 2022 Mountain Bike Volt to Miami Green Fade

£620.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Trek Marlin 5 2022 Mountain Bike Azure Trek Marlin 5 2022 Mountain Bike Radioactive Red Trek Marlin 5 Mountain Bike in Grey
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

Trek Marlin 5 2022 Mountain Bike Volt to Miami Green Fade

Brand:Trek

Code:edaFNRGimaiMottloV2202785

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

It's right for you if...

You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter – and you want it all at an exceptional value.

The tech you get

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, 2x8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.

The final word

The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.

erWhy you'll love it

  1. It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
  2. Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  3. The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
  4. Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  5. Like every Trek, it's backed by a lifetime warranty
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Specifications

*spec applies to all sizes unless otherwise noted

Frameset

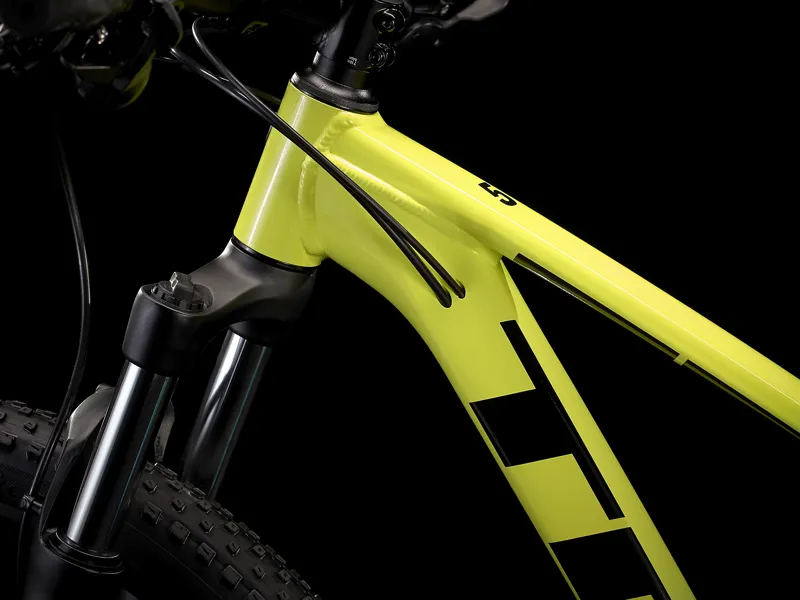

Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

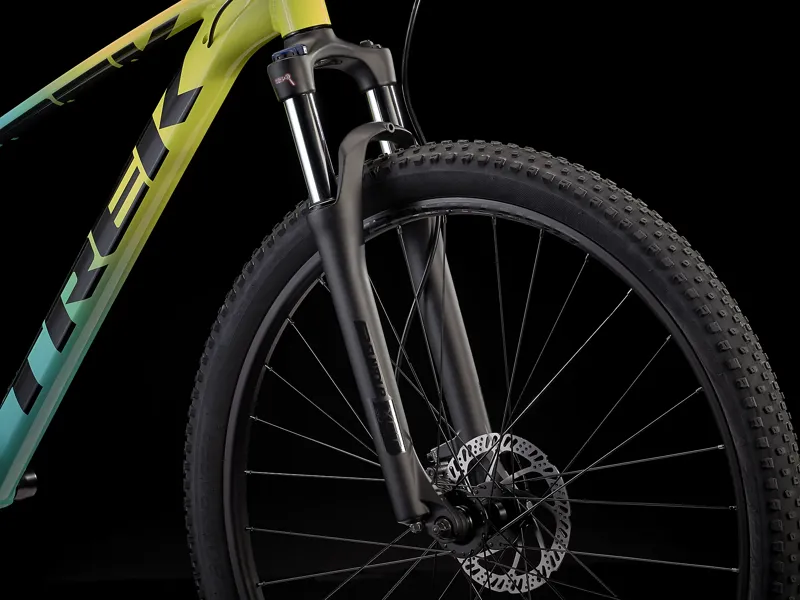

*Fork: Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: S , M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel

Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Rim: Size: XXS
Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
Size: XS , S , M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel

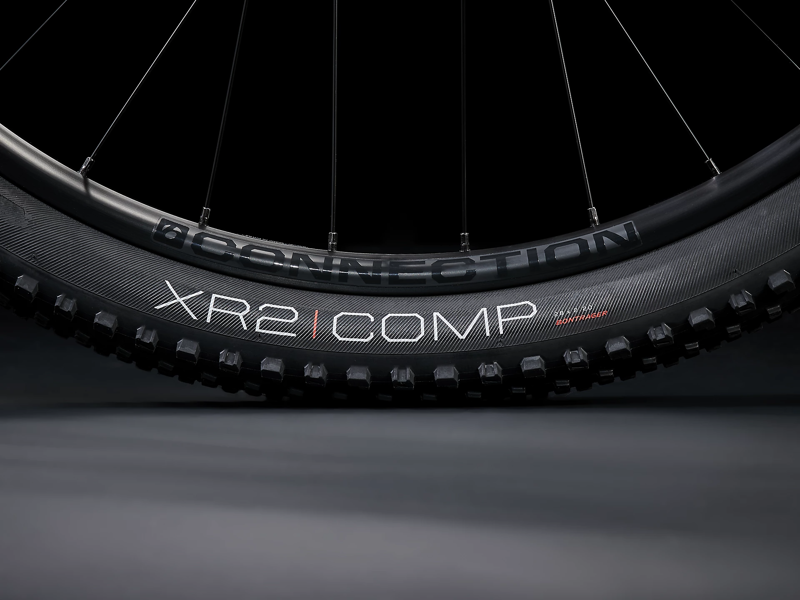

*Tyre: Size: XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20"
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"

Drivetrain
Shifter: Shimano Altus M315, 8-speed
Front derailleur: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

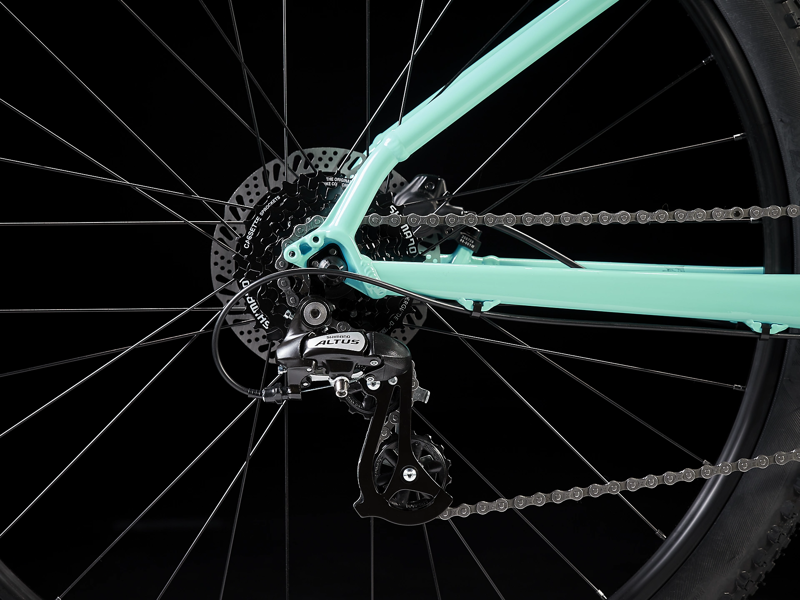

Rear derailleur: Shimano Altus M310
*Crank: Size: XXS
Prowheel TM-CY10, 36/22, 160 mm length
Size: XS , S , M
Shimano M315, 36/22, 170 mm length
Size: ML , L , XL , XXL
Shimano M315, 36/22, 175 mm length
Bottom bracket: VP BC73, 73 mm, threaded cartridge
Cassette: Shimano 8-speed, 12-32T
Chain: KMC Z8.3, 8 speed
Pedal: VP-536 nylon platform

Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

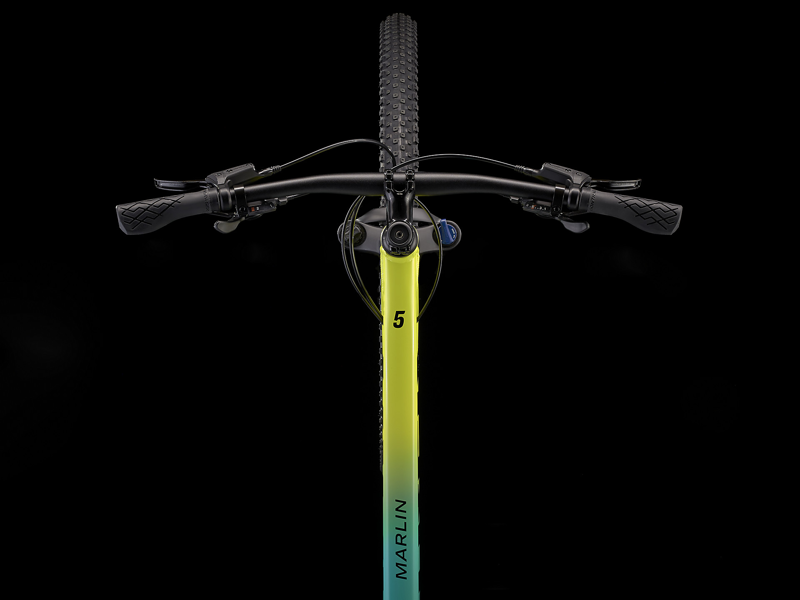

*Handlebar: Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips: Bontrager XR Endurance Comp
*Stem: Size: XXS
Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length
Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set: Semi-integrated, 1-1/8"

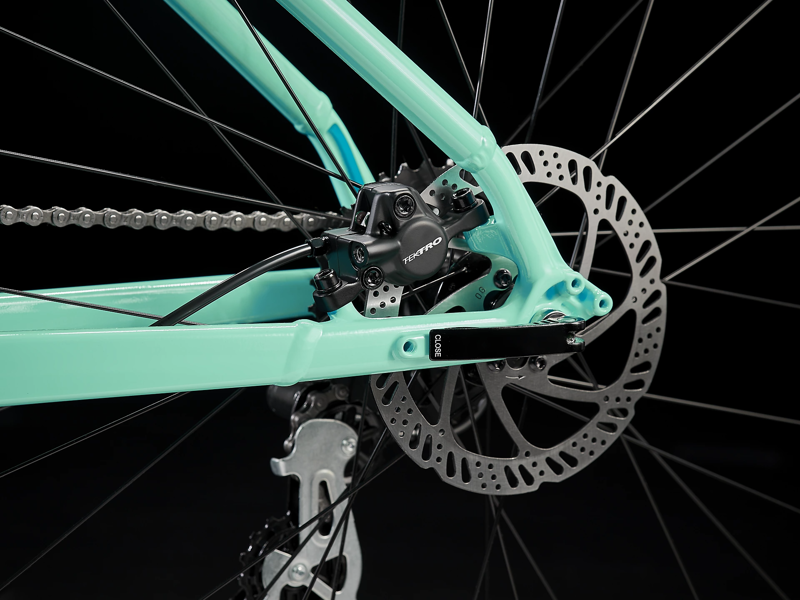

*Brake: Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short-reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc

Weight
Weight: M - 30.80 lbs / 13.9725 kg
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Technical Information
  • Frame
    Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
  • Fork
    Size: XXS, SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: XS, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
    Size: XS, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel
    Size: S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    Size: S/M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel
    Size: M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
  • Hub front
    Formula DC-20, alloy, 6-bolt, 5x100mm QR
  • Hub rear
    Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
  • Rim
    Size: XXS, Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve
    Size: XS/S/M/ML/L/XL/XXL, Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Spokes
    14g stainless steel
  • Tire
    Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
    Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
    Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
  • Shifter
    Shimano Altus M315, 8 speed
  • Front derailleur
    Shimano Altus M315, 34.9mm clamp, top swing, dual pull
  • Rear derailleur
    Shimano Altus M310
  • Crank
    Size: XXS, Prowheel TM-CY10, 36/22, 160mm length
    Size: XS/S/M, Shimano M315, 36/22, 170mm length
    Size: ML/L/XL/XXL, Shimano M315, 36/22, 175mm length
  • Bottom bracket
    VP BC73, 73mm, threaded cartridge
  • Cassette
    Shimano HG200, 12-32, 8 speed
  • Chain
    KMC Z8.3, 8 speed
  • Pedal
    VP-536 nylon platform
  • Saddle
    Bontrager Arvada, steel rails, 138mm width
  • Seatpost
    Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length
    Size: XS/S/M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Handlebar
    Size: XXS/XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: S/M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
  • Grips
    Bontrager XR Endurance Comp, lock-on
  • Stem
    Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
    Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
    Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
  • Headset
    Semi-integrated, 1-1/8''
  • Brake
    Size: XXS/XS/S, Tektro HD-M276 hydraulic disc, short reach lever
    Size: M/ML/L/XL/XXL, Tektro HD-M275 hydraulic disc
  • Weight
    M - 30.80 lbs / 13.9725 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size numberFrame size letterWheel sizeA — Seat tubeEffective seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
13.5XXS26"34.373.2°9.068.7°54.028.75.343.84.38.7105.370.237.059.6
13.5XS27.5"34.373.5°9.069.3°54.429.25.843.84.28.8104.965.837.656.5
15.5S27.5"36.873.5°9.069.3°55.530.24.843.84.28.8106.668.638.557.4
17.5M29"41.973.0°9.069.5°60.231.05.843.84.29.3110.074.841.860.2
18.5ML29"44.473.0°9.069.5°61.831.05.843.84.29.3111.675.843.460.2
19.5L29"47.073.0°10.069.5°63.831.05.843.84.29.3113.775.745.161.1
21.5XL29"52.173.0°12.069.5°65.931.05.843.84.29.3115.976.946.663.0
23.0XXL29"55.973.0°12.069.5°67.331.15.843.84.29.3117.380.448.063.0
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Professional Opinion
Product Reviews
Write a review
0 As rated by 0 customers

Write a review for Trek Marlin 5 2022 Mountain Bike Volt to Miami Green Fade

Your name
Your email address
How would you rate it?
Would you recommend this product?
Let others know your opinion
Submit Review Close
Question(s) answered about Trek Marlin 5 2022 Mountain Bike Volt to Miami Green Fade
Ask a question
Question(s) asked regarding Trek Marlin 5 2022 Mountain Bike Volt to Miami Green Fade

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close

Also in the range

Home Mountain Biking Bikes Trek Mountain Bikes
