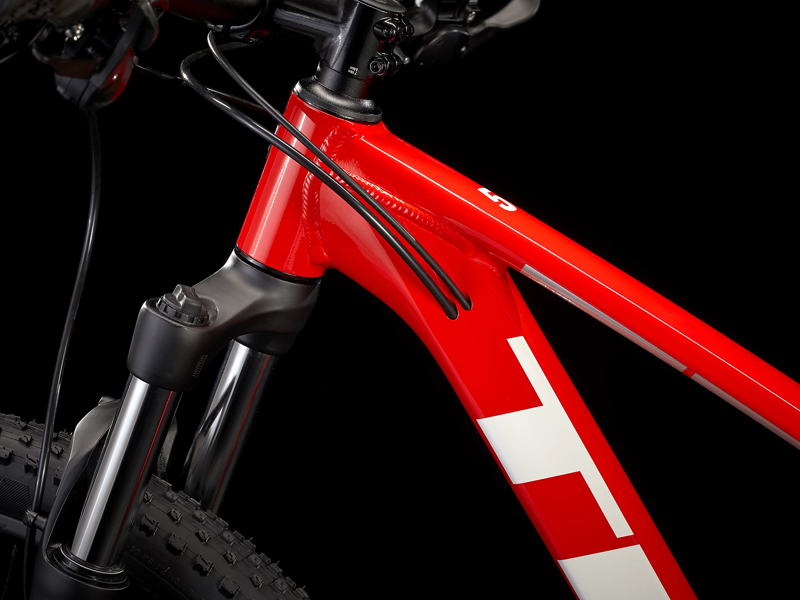

Frame
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

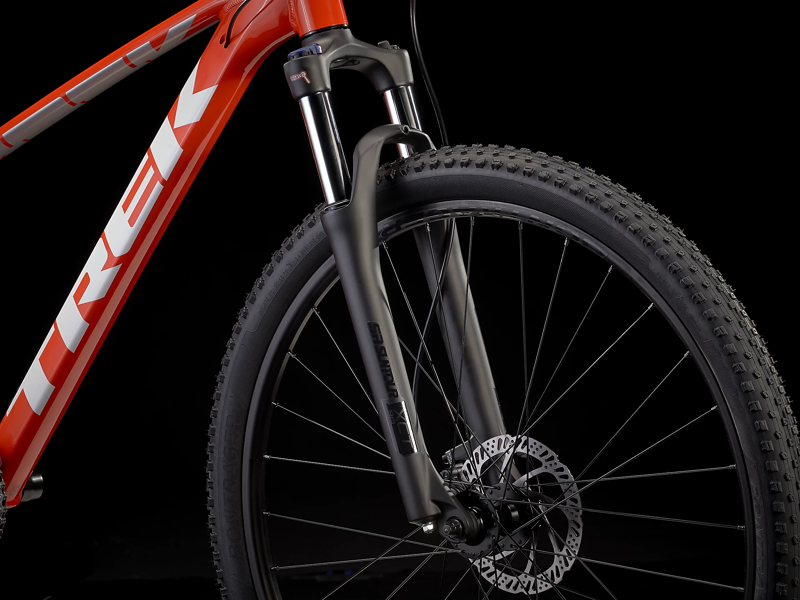

Fork
Size: XXS, SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
Size: XS, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: XS, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel
Size: S, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: S/M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel
Size: M/ML/L/XL/XXL, SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
Hub front
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim
Size: XXS, Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve
Size: XS/S/M/ML/L/XL/XXL, Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel

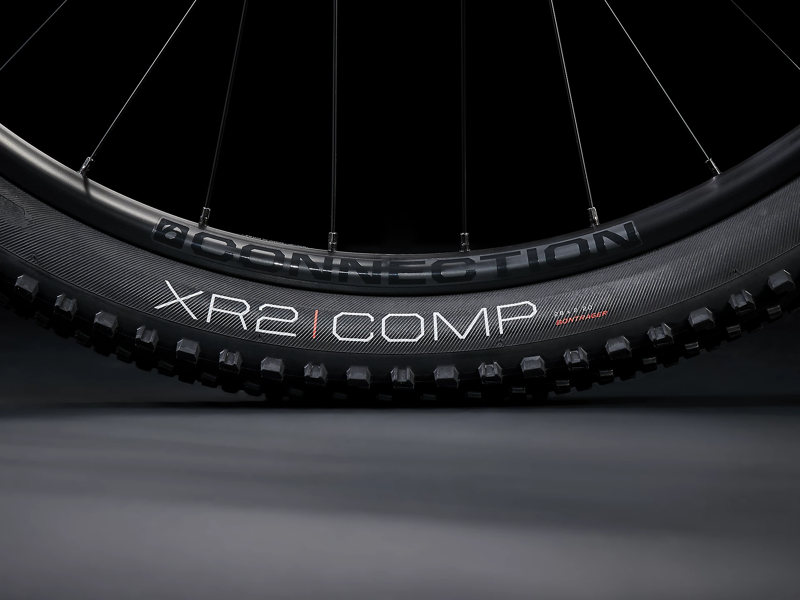

Tire
Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Shifter
Shimano Altus M315, 8 speed
Front derailleur
Shimano Altus M315, 34.9mm clamp, top swing, dual pull

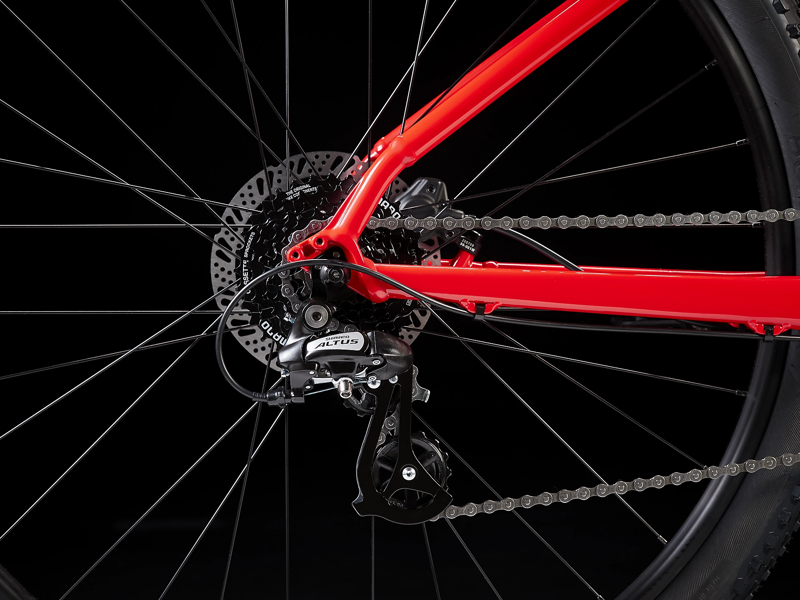

Rear derailleur
Shimano Altus M310

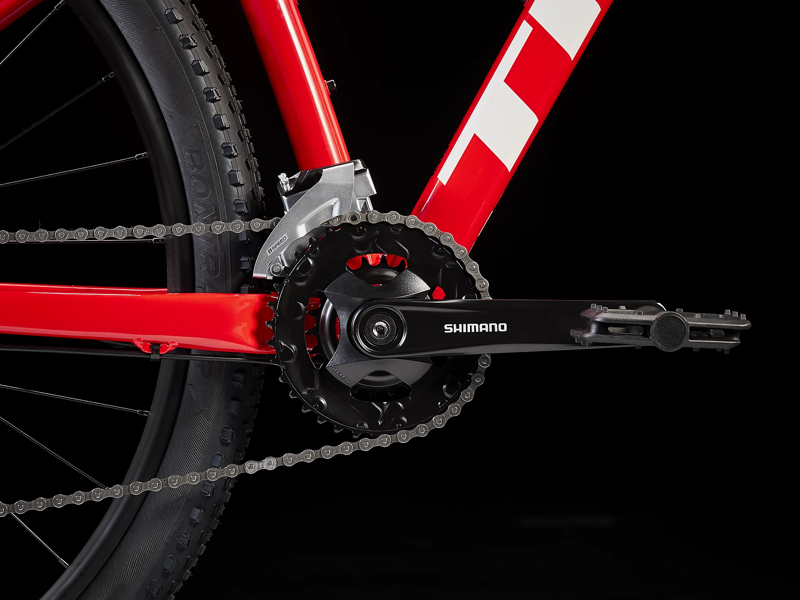

Crank
Size: XXS, Prowheel TM-CY10, 36/22, 160mm length
Size: XS/S/M, Shimano M315, 36/22, 170mm length
Size: ML/L/XL/XXL, Shimano M315, 36/22, 175mm length
Bottom bracket
VP BC73, 73mm, threaded cartridge
Cassette
Shimano HG200, 12-32, 8 speed
Chain
KMC Z8.3, 8 speed
Pedal
VP-536 nylon platform

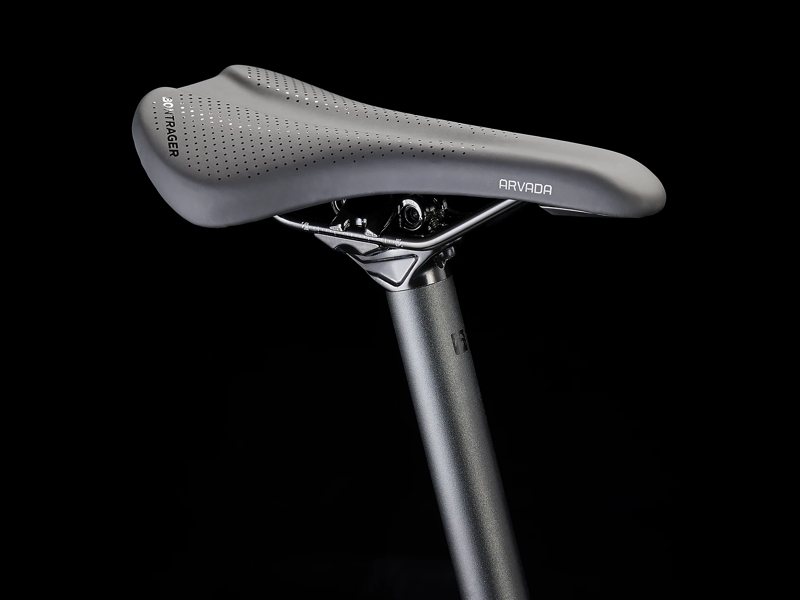

Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: XS/S/M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length

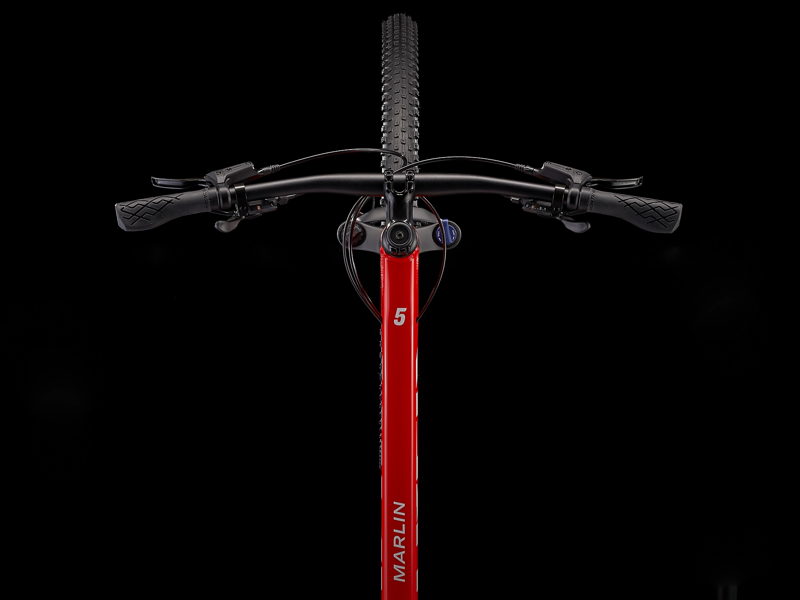

Handlebar
Size: XXS/XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S/M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
Semi-integrated, 1-1/8''

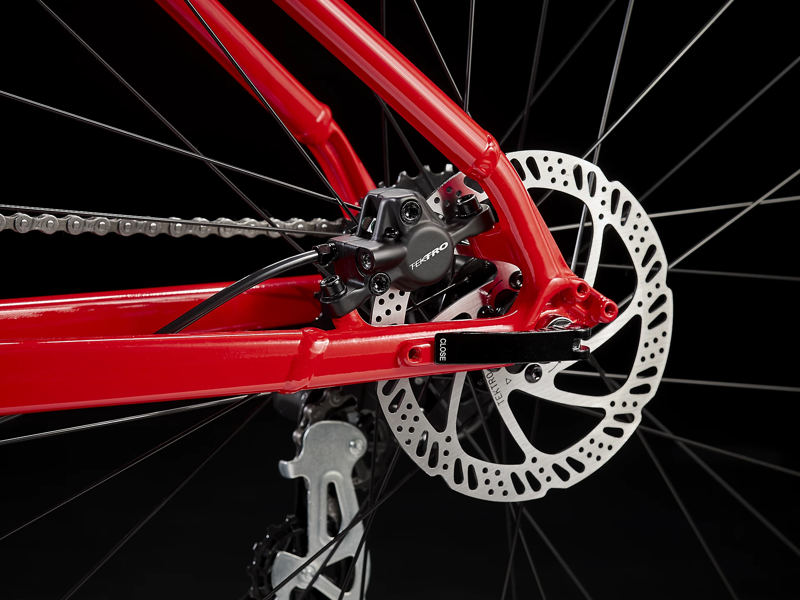

Brake
Size: XXS/XS/S, Tektro HD-M276 hydraulic disc, short reach lever
Size: M/ML/L/XL/XXL, Tektro HD-M275 hydraulic disc
Weight
M - 30.80 lbs / 13.9725 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
