The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.
- It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
- Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- Like every Trek, it's backed by a lifetime warranty
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset

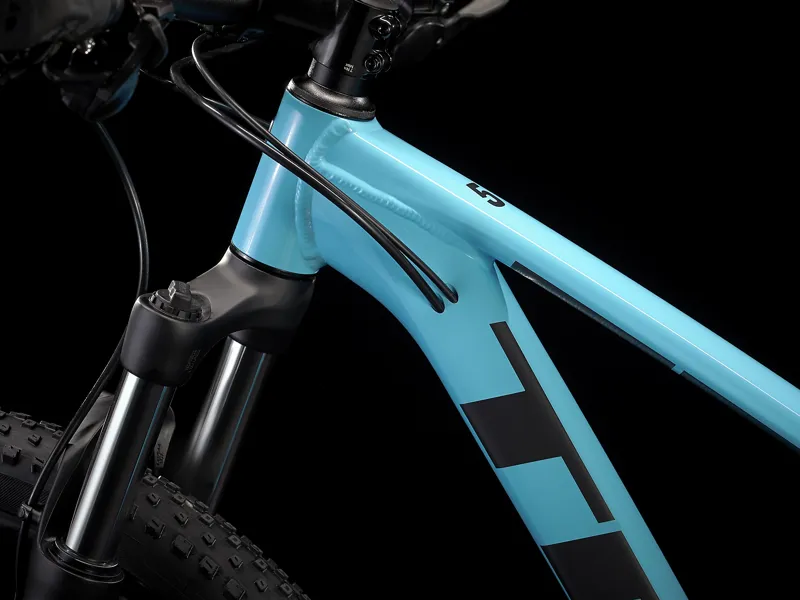

Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork: Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: S , M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Rim: Size: XXS
Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
Size: XS , S , M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel

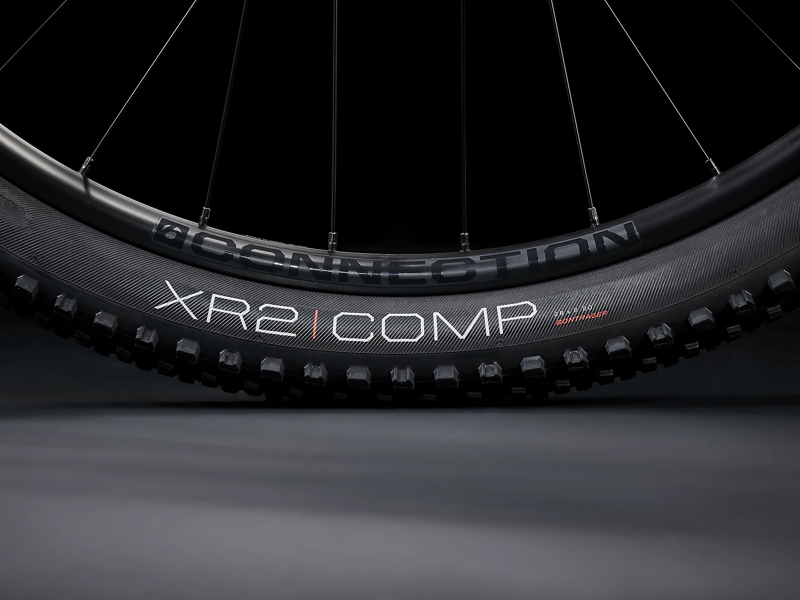

*Tyre: Size: XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20"
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Drivetrain
Shifter: Shimano Altus M315, 8-speed
Front derailleur: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

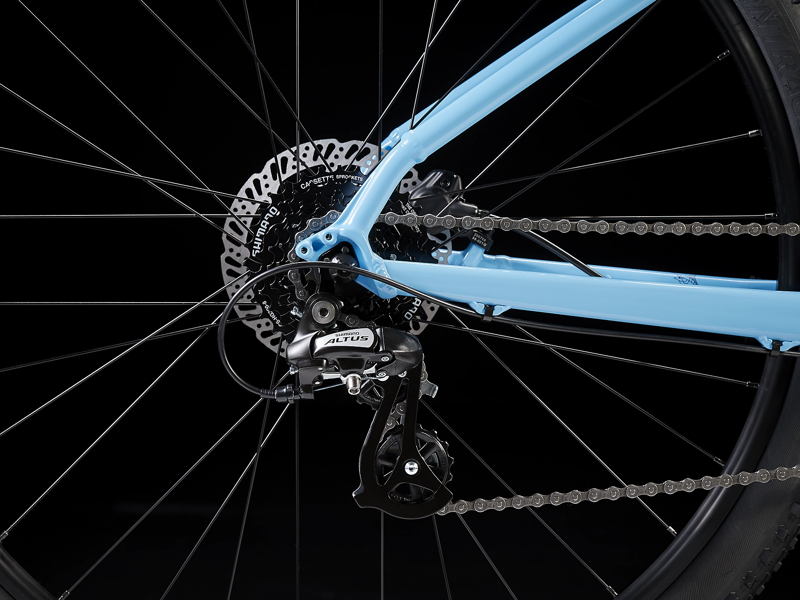

Rear derailleur: Shimano Altus M310
*Crank: Size: XXS
Prowheel TM-CY10, 36/22, 160 mm length
Size: XS , S , M
Shimano M315, 36/22, 170 mm length
Size: ML , L , XL , XXL
Shimano M315, 36/22, 175 mm length
Bottom bracket: VP BC73, 73 mm, threaded cartridge
Cassette: Shimano 8-speed, 12-32T
Chain: KMC Z8.3, 8 speed
Pedal: VP-536 nylon platform
Components

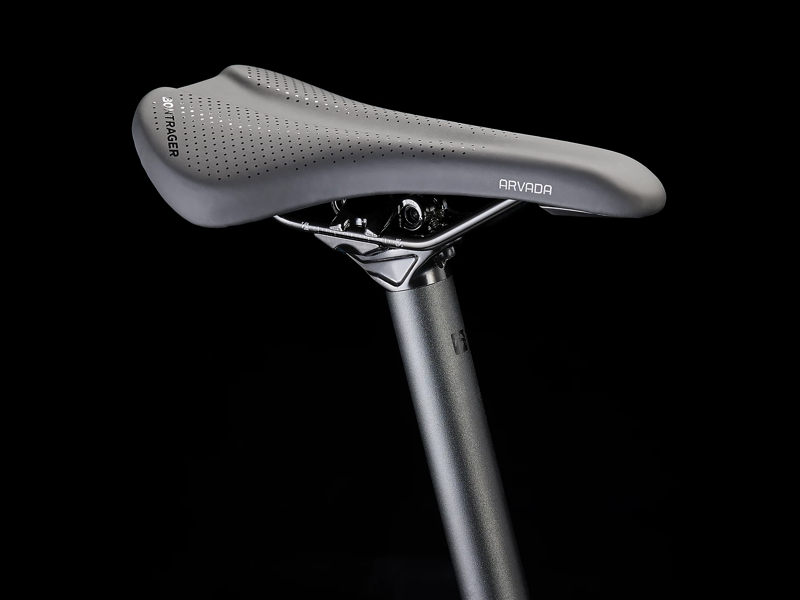

Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

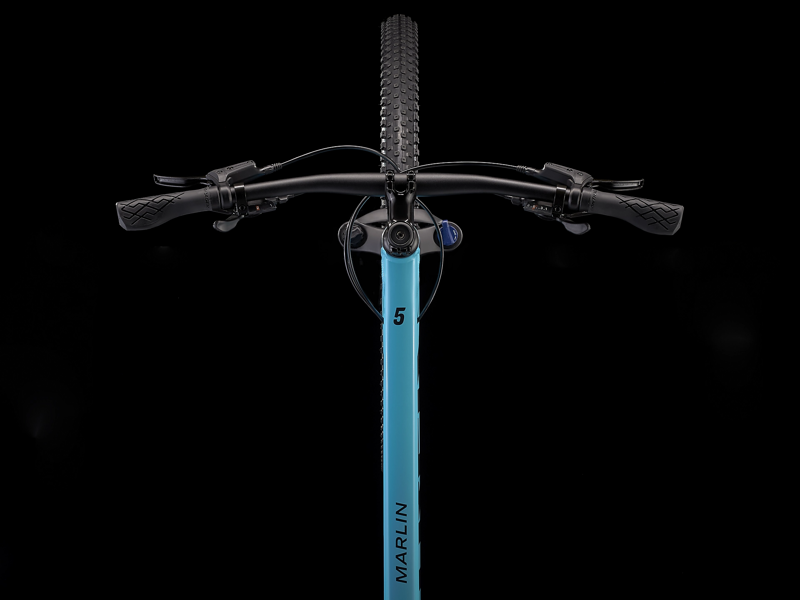

*Handlebar: Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips: Bontrager XR Endurance Comp
*Stem: Size: XXS
Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length
Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set: Semi-integrated, 1-1/8"

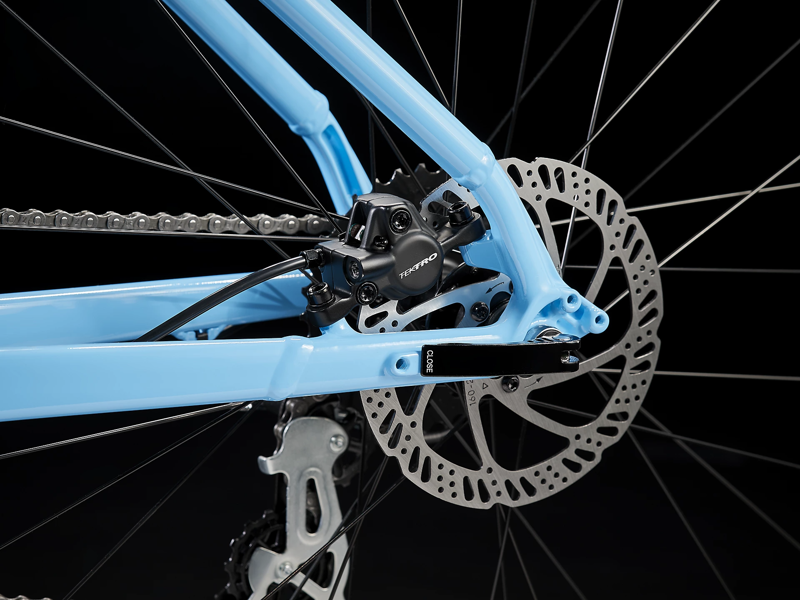

*Brake: Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short-reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
Weight
Weight: M - 30.80 lbs / 13.9725 kg
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
