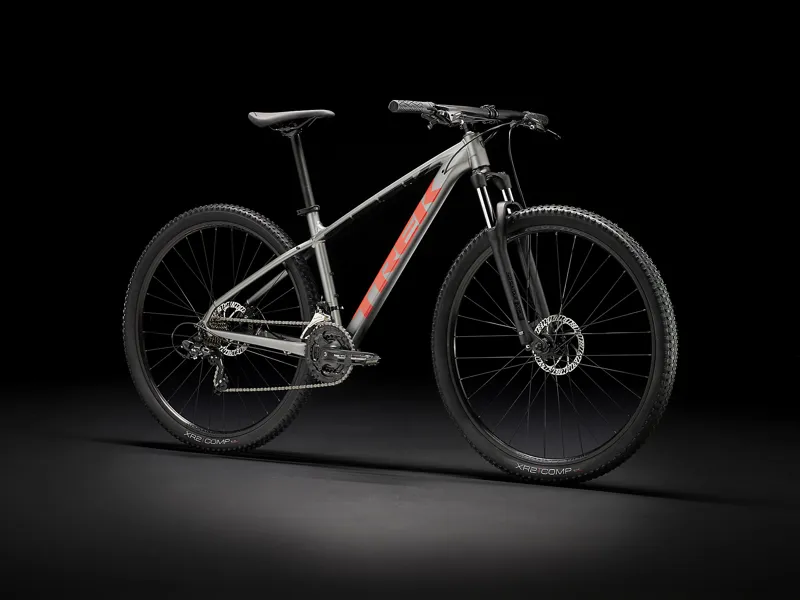

Trek Marlin 4 Mountain Bike in Grey

Season:2022

Brand:Trek

Code:29759MATANT

Marlin 4 is the perfect gateway to trail riding

It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.

Features:

It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface

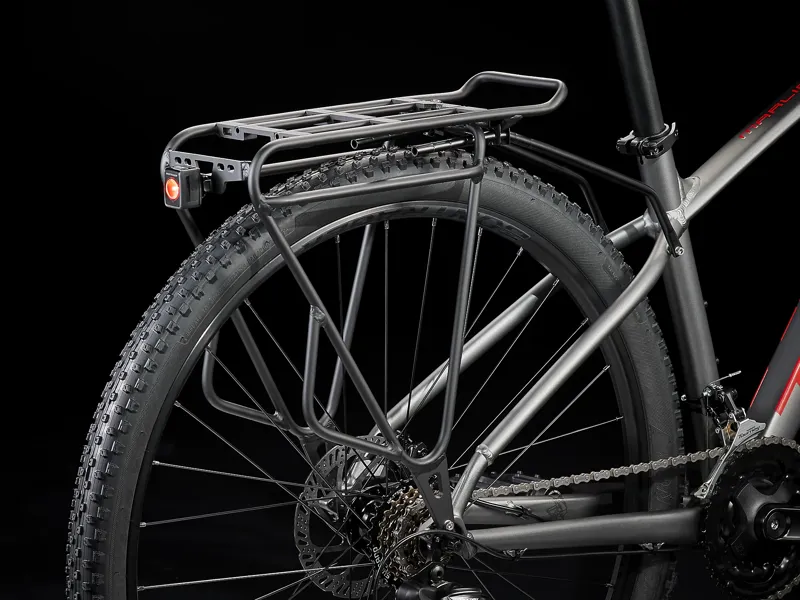

Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
Like every model in the Marlin family, it's backed by Trek's lifetime warranty

Technical Information

Frame

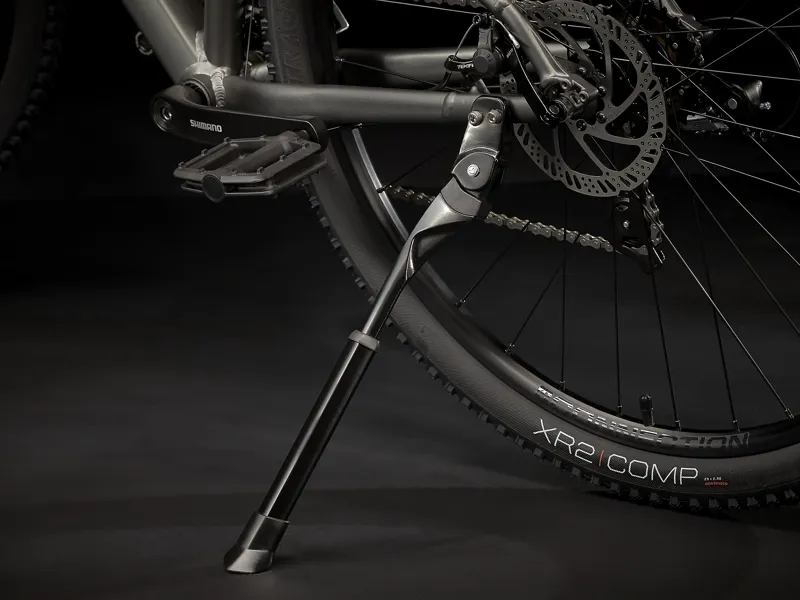

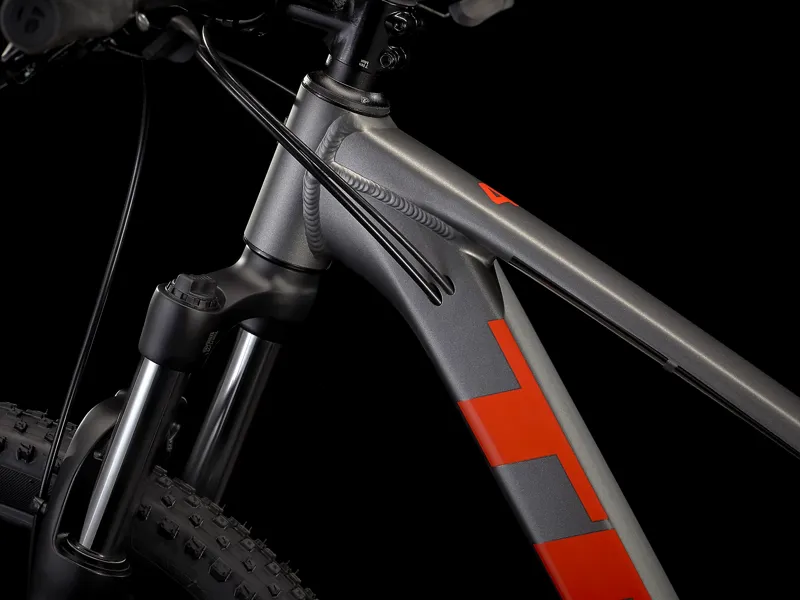

Size: XS/S/M/ML/L/XL/XXL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Size: XS/S, Alpha Silver Aluminum, low standover, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fork
Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M/ML/L/XL/XXL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel
100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Hub front
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear
Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel

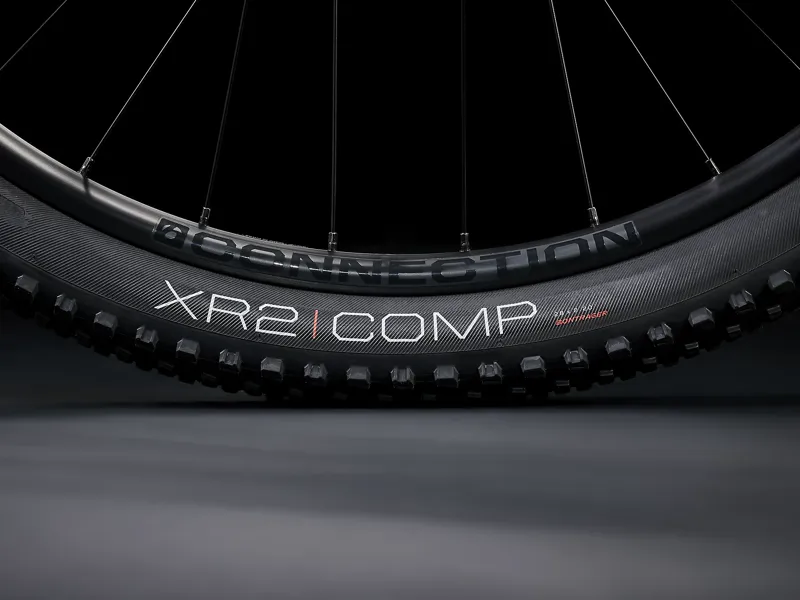

Tire
Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00''
Max tire size
Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Shifter
Shimano Altus EF500, 7 speed
Front derailleur
Shimano Tourney TY300, 34.9mm clamp, down swing, down pull

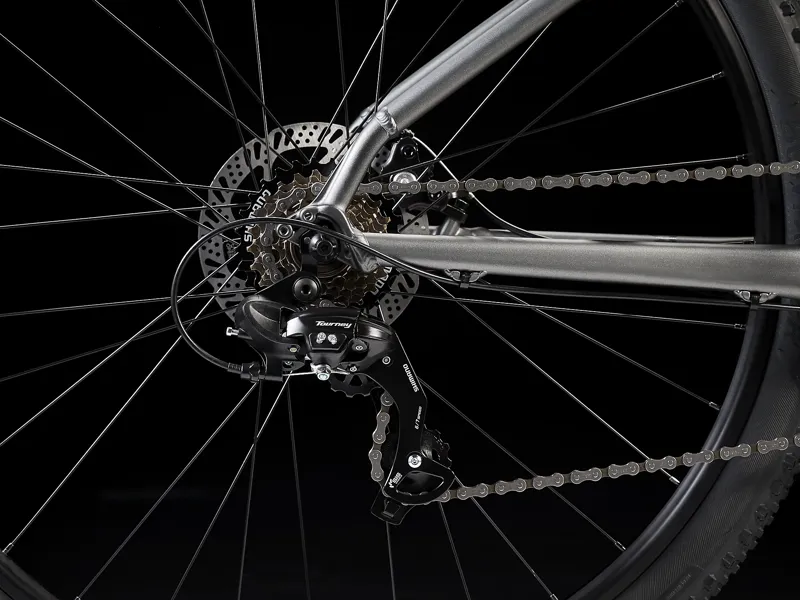

Rear derailleur
Shimano Tourney TY300, long cage, 34T max cog

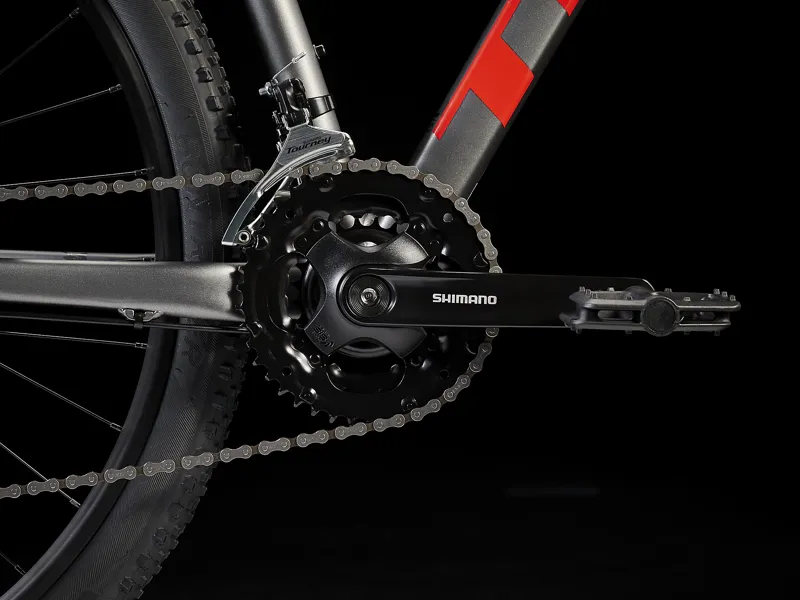

Crank
Size: XS/S/M, Shimano Tourney TY301, 42/34/24, 170mm length
Size: ML/L/XL/XXL, Shimano Tourney TY301, 42/34/24, 175mm length
Bottom bracket
VP BC73, 73mm, threaded cartridge
Cassette
Shimano TZ500, 14-28, 7 speed
Chain
KMC Z7, 7 speed
Pedal
VP-536 nylon platform
Max chainring size
1x/2x: 34T, 3x: 42T

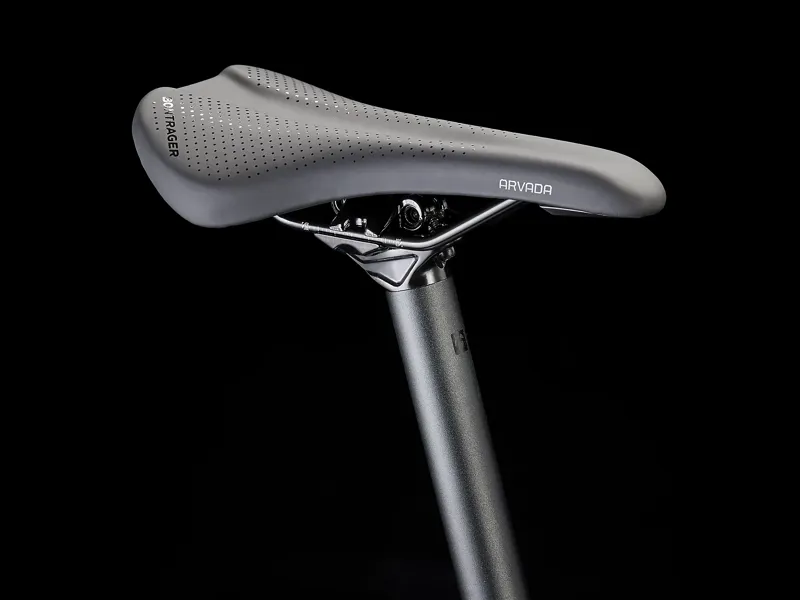

Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost

Size: XS/S, Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length

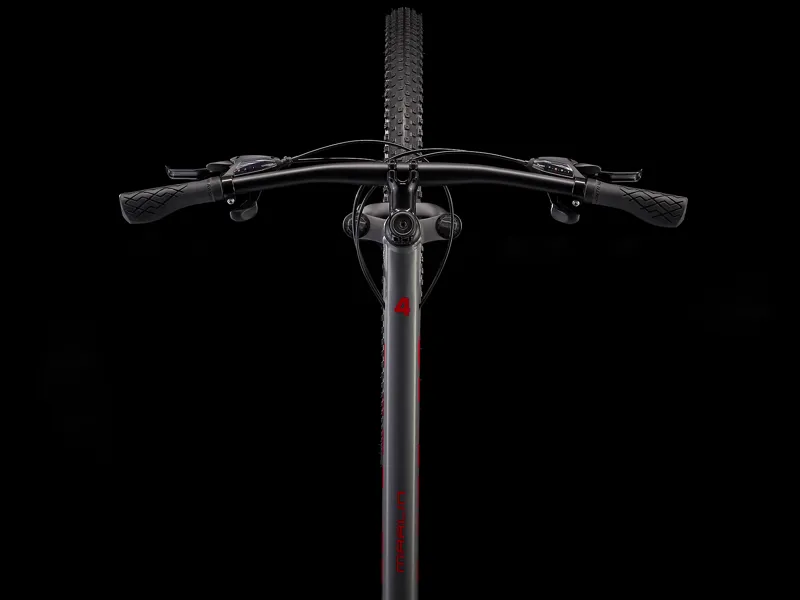

Handlebar
Size: XS/S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
Semi-integrated, 1-1/8''

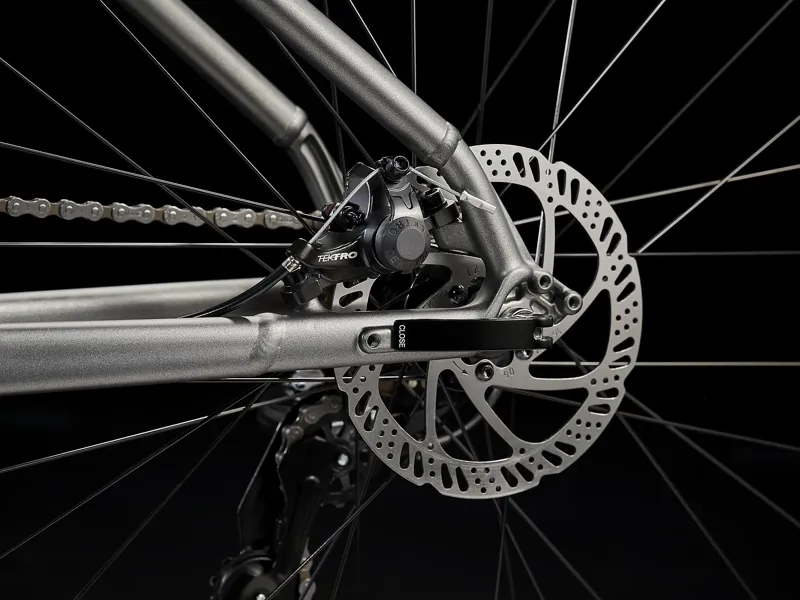

Brake
Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M280 mechanical disc, 160mm rotor
Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M281 mechanical disc
Weight
M - 30.82 lbs / 13.9815 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)

Sizing Information

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. The larger frames (M and ML) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

All measurements provided in cm unless otherwise stated.

Frame size number	Frame size letter	Wheel size	A — Seat tube	B — Seat tube angle	Effective seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	F — Bottom bracket height	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
13.5	XS	27.5"	34.3	73.5°	73.5°	9.0	69.3°	54.4	29.2	5.8	43.8	4.2	8.8	104.9	65.8	37.6	56.5
15.5	S	27.5"	36.8	73.5°	73.5°	9.0	69.3°	55.5	30.2	4.8	43.8	4.2	8.8	106.6	68.6	38.5	57.4
17.5	M	29"	41.9	71.9°	73.0°	9.0	69.5°	60.2	31.0	5.8	43.8	4.2	9.3	110.0	74.8	41.8	60.2
18.5	ML	29"	44.4	71.9°	73.0°	9.0	69.5°	61.8	31.0	5.8	43.8	4.2	9.3	111.6	75.8	43.4	60.2
19.5	L	29"	47.0	71.9°	73.0°	10.0	69.5°	63.8	31.0	5.8	43.8	4.2	9.3	113.7	75.7	45.1	61.1
21.5	XL	29"	52.1	71.9°	73.0°	12.0	69.5°	65.9	31.0	5.8	43.8	4.2	9.3	115.9	76.9	46.6	63.0
23.0	XXL	29"	55.9	71.9°	73.0°	12.0	69.5°	67.3	31.1	5.8	43.8	4.2	9.3	117.3	80.4	48.0	63.0

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
