Fuel LX 9.8 XT Di2 is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain with a high-performance drivetrain.
Fuel LX 9.8 XT Di2 is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain with a high-performance drivetrain.
Trek

Trek Fuel LX 9.8 XT Di2 Gen 7 Gloss Dark Carmine/Matte Trek Black

£6,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

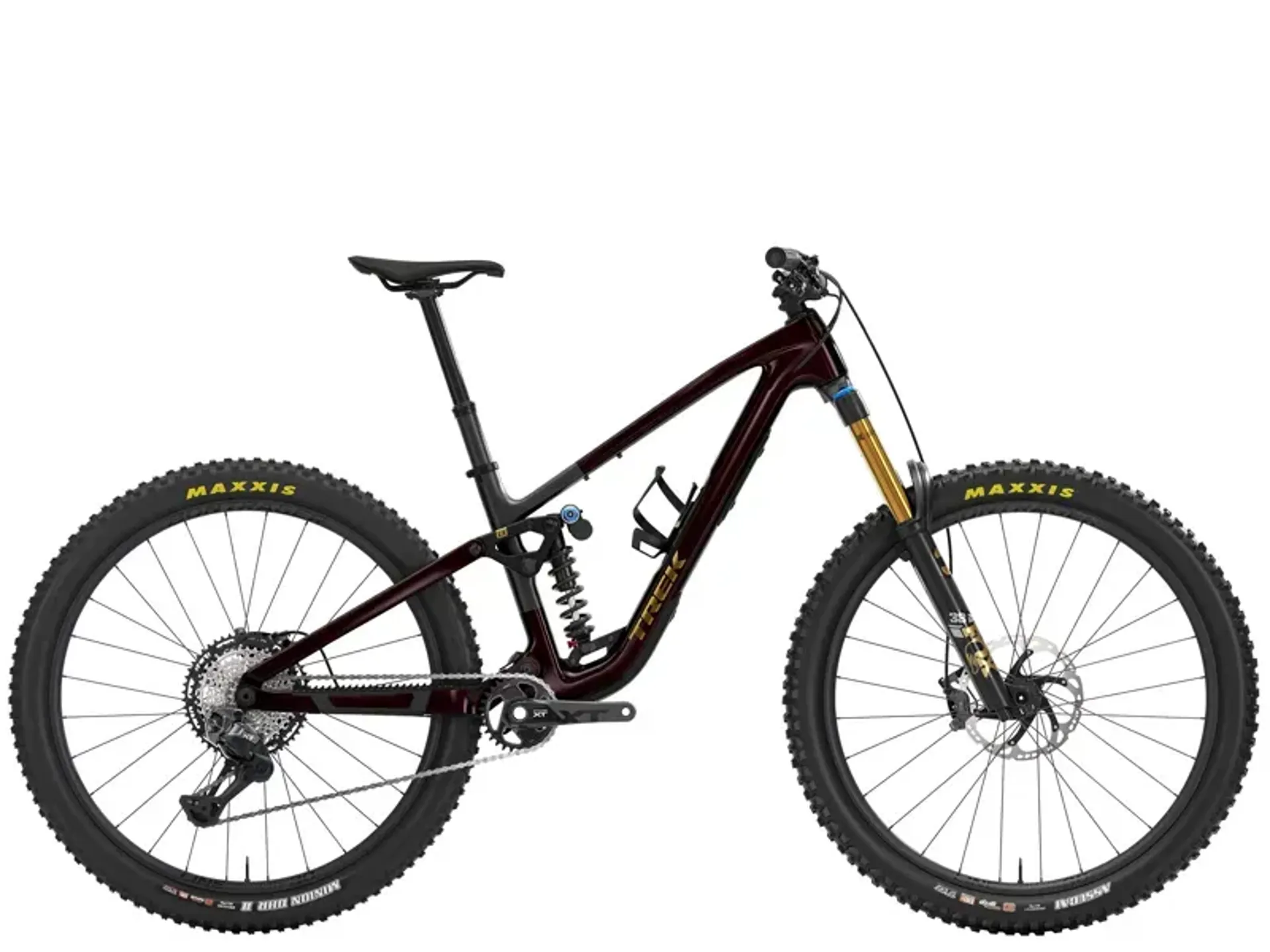

Trek Fuel LX 9.8 XT Di2 Gen 7 Gloss Dark Carmine/Matte Trek Black

Season:2027

Brand:Trek

Code:81556RED

Fuel LX 9.8 XT Di2 is a rowdy carbon trail bike ready to slay steep descents and blast through wheel-gobbling terrain.

The OCLV Mountain Carbon frame partners with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for going all-out on the wildest lines on the mountain. A wireless Shimano XT Di2 M8250 12-speed drivetrain gives you clean, customizable shifting, and 4-piston Shimano XT M8220 brakes provide excellent modulation and stop-on-a-dime power.

Trek's Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX. The adjustable leverage rate allows for more bottom-out resistance without giving up small-bump sensitivity by flipping the chip in the lower shock mount for a more progressive leverage rate. The zero stack integrated headset provides options for aftermarket upgrades, including angle adjust or anodised colours.

Stash ride essentials with in-frame storage on all Fuel models, both carbon and alloy. Plus, top tube accessory mounts let you load up even more. The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more. Active Braking Pivot allows Trek's engineers to tune how the suspension reacts to acceleration and braking forces independently, providing confident control.

Features:

  • OCLV Mountain Carbon frame
  • Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front)
  • Shimano XT Di2 M8250 12-speed drivetrain
  • 4-piston Shimano XT M8220 brakes
  • Adjustable leverage rate
  • Zero stack integrated headset
  • In-frame storage and top tube accessory mounts
  • Active Braking Pivot
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
  • Fork
    Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel
  • Shock
    RockShox Vivid Ultimate D1, 205x65mm
  • Suspension part
    Size S: Fox steel coil spring, 250lbs; Size M: Fox steel coil spring, 350lbs; Size L: Fox steel coil spring, 400lbs; Size XL: Fox steel coil spring, 450lbs; Size XXL: Fox steel coil spring, 500 lbs
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29"
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Tire
    Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5"; Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5"
  • Tire part
    Bontrager TLR sealant, 6oz
  • Max tire size
    Frame: 29x2.50", Fork: See manufacturer
  • Battery
    SRAM AXS battery pack (with charger)
  • Shifter
    SRAM AXS pod
  • Rear derailleur
    SRAM X0 Eagle AXS, T-Type
  • Crank
    SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170mm length; SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 165mm length
  • Bottom bracket
    SRAM DUB MTB Wide, 73mm, BSA threaded
  • Cassette
    SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
  • Chain
    SRAM X0 Eagle, T-Type, 12 speed
  • Max chainring size
    1x: 34T round, 32T oval, min 30T, 32T oval
  • Saddle
    Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
  • Seatpost
    Size S: Fox Transfer NEO, 150mm travel, wireless, 34.9mm; Size M, L: Fox Transfer NEO, 175mm travel, wireless, 34.9mm; Size XL, XXL: Fox Transfer NEO, 200mm travel, wireless, 34.9mm
  • Handlebar
    Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
  • Grips
    Trek Line Elite, lock-on
  • Stem
    Race Face Turbine R, 35mm, 0 degree, 40mm length
  • Brake
    SRAM Maven Silver 4-piston hydraulic disc
  • Brake rotor
    SRAM HS2, 6-bolt, 200mm; SRAM HS2, 6-bolt, 180mm
  • Rotor size
    Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
  • Weight limit
    300 pounds (136 kg)
Sizing Information

Sizing

size-table
SizeRider HeightInseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 177 cm

5'5" - 5'10"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

2XL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"

Geometry

Labelled bike diagram showing geometry points A to N.
Geometry diagram labelling frame measurements A to N. Each label corresponds to a row in the geometry table below.

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size numberFrame size letterWheel sizeA —Seat tubeB —Seat tube angleEffective seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeF —Bottom bracket heightG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stackFront centre
15.5"S29"37.071.5°77.5°9.563.4°55.234.72.643.74.413.8120.075.041.861.976.5
15.5"S29"/27.5"37.072.7°78.2°11.064.6°55.933.93.444.14.412.9120.075.443.162.476.1
17.5"M29"40.071.5°77.2°11.063.4°58.634.72.743.74.413.8123.775.244.863.380.1
17.5"M29"40.072.6°77.8°11.064.5°58.933.93.544.44.412.9123.274.746.062.479.1
19.5"L29"42.071.5°76.4°12.563.4°62.134.72.744.24.413.7127.375.947.364.783.3
19.5"L29"42.072.6°77.3°12.564.5°61.333.93.544.44.412.9125.875.048.563.882.2
21.5"XL29"45.571.6°75.9°14.063.5°65.534.62.744.74.413.7131.076.549.866.186.4
21.5"XL29"45.572.6°76.9°14.064.5°65.133.93.544.74.412.9129.875.551.065.185.4
23"XXL29"47.571.6°75.4°15.563.5°68.434.62.745.24.413.7134.177.351.867.489.1
23"XXL29"47.572.6°76.4°15.564.5°68.033.93.545.24.412.9133.076.453.06
Professional Opinion

Sizing

size-table
SizeRider HeightInseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 177 cm

5'5" - 5'10"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

2XL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"

Geometry

Labelled bike diagram showing geometry points A to N.
Geometry diagram labelling frame measurements A to N. Each label corresponds to a row in the geometry table below.

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size numberFrame size letterWheel sizeA —Seat tubeB —Seat tube angleEffective seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeF —Bottom bracket heightG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stackFront centre
15.5"S29"37.071.5°77.5°9.563.4°55.234.72.643.74.413.8120.075.041.861.976.5
15.5"S29"/27.5"37.072.7°78.2°11.064.6°55.933.93.444.14.412.9120.075.443.162.476.1
17.5"M29"40.071.5°77.2°11.063.4°58.634.72.743.74.413.8123.775.244.863.380.1
17.5"M29"40.072.6°77.8°11.064.5°58.933.93.544.44.412.9123.274.746.062.479.1
19.5"L29"42.071.5°76.4°12.563.4°62.134.72.744.24.413.7127.375.947.364.783.3
19.5"L29"42.072.6°77.3°12.564.5°61.333.93.544.44.412.9125.875.048.563.882.2
21.5"XL29"45.571.6°75.9°14.063.5°65.534.62.744.74.413.7131.076.549.866.186.4
21.5"XL29"45.572.6°76.9°14.064.5°65.133.93.544.74.412.9129.875.551.065.185.4
23"XXL29"47.571.6°75.4°15.563.5°68.434.62.745.24.413.7134.177.351.867.489.1
23"XXL29"47.572.6°76.4°15.564.5°68.033.93.545.24.412.9133.076.453.06
