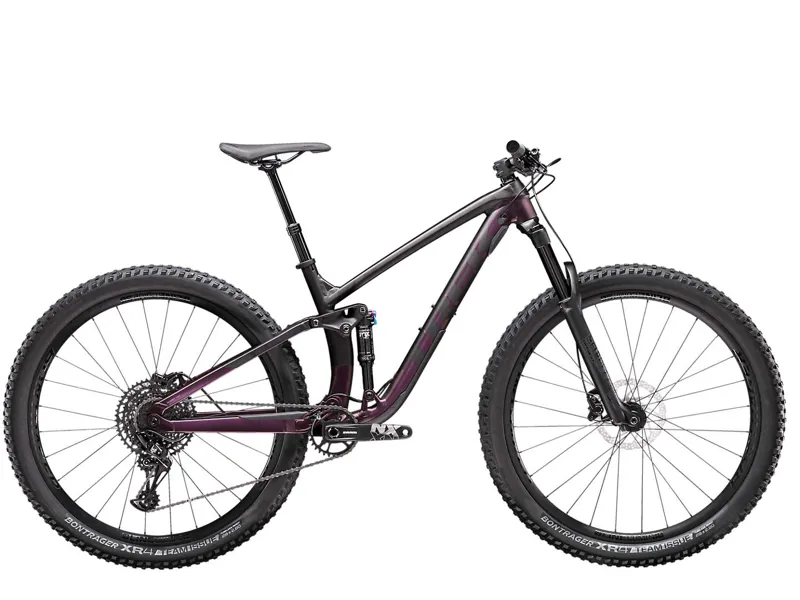

Fuel EX 7 shines when you're charging down tricky descents, where the dropper post, upgraded 140 mm RockShox 35 Gold fork and 130 mm of rear travel come in handy. A lightweight aluminium frame, Tubeless Ready wheels and a reliable 1x12 SRAM NX Eagle drive train make this an amazing all-around full suspension mountain bike.
It's right for you if...
You want one high-performance bike that excels on every trail, and you want it at great value. You expect your bike to handle a variety of challenges, including rocky descents, long climbs, fast corners and gaps.
The tech you get
A capable and stiff Alpha Platinum Aluminium frame, 140 mm RockShox 35 Gold fork with a plush DebonAir spring, and 130 mm of rear travel with a FOX Performance Float shock and a 1x12 SRAM NX Eagle drive train with a wide range of gearing for climbs. Plus, Bontrager Line Comp 30 wheels and a dropper post.
The final word
Fuel EX 7 is a great all-around trail bike for a wide variety of terrain. It has upgrades where it matters most, like in the SRAM 1x12 drive train, suspension and Tubeless Ready Bontrager wheels.
Why you'll love it
It’s an incredible trail bike with upgraded parts that you won’t outgrow as soon as your skills progress
You’re getting a high-value trail bike that’s great for both marathon races and everyday singletrack riding
The dropper post lets you lower your saddle on the fly so it's out of the way on descents
Wide Line Comp 30 wheels provide more tyre support, so you get better traction and control

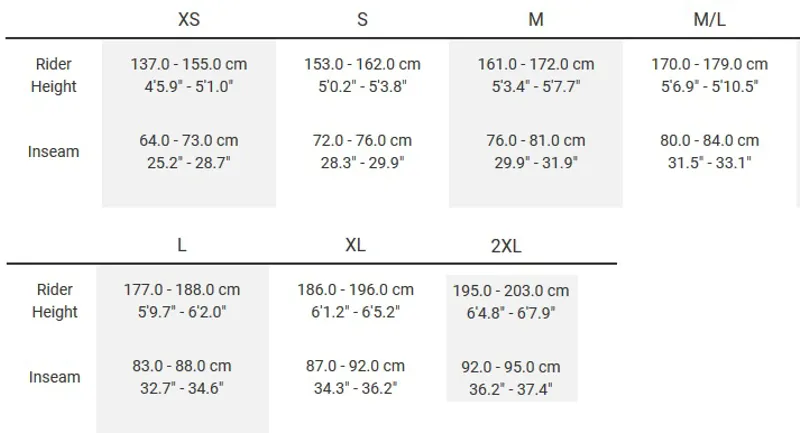

We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels
Specifications
*spec applies to all sizes unless otherwise noted
Frameset

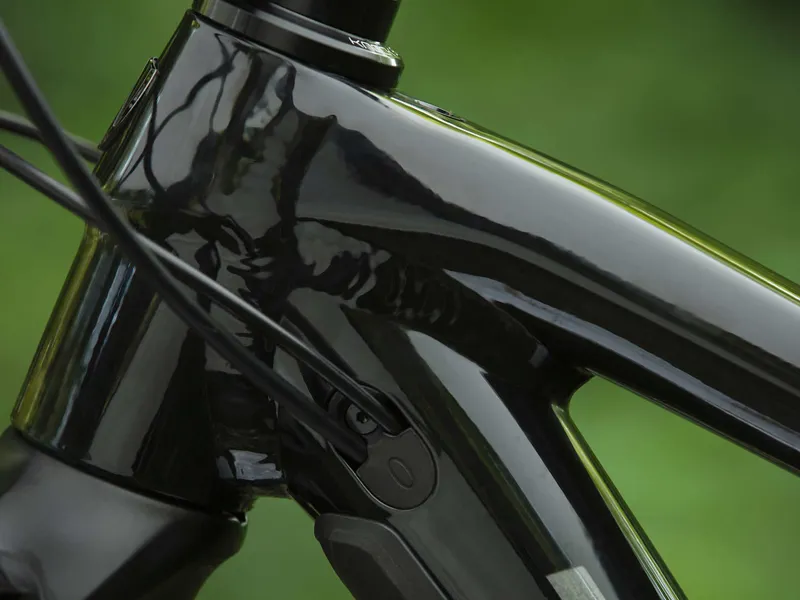

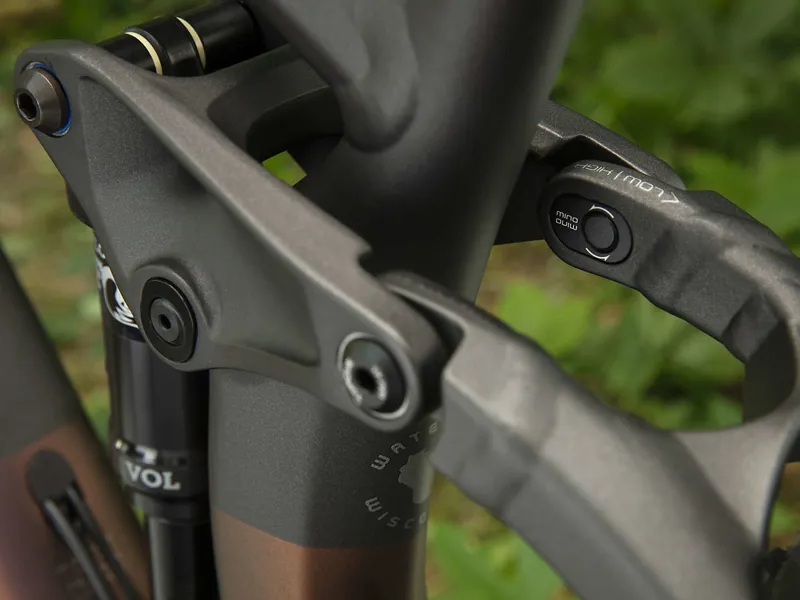

Frame: Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
*Fork: Size: XS , S
RockShox 35 Gold, DebonAir spring, Motion Control damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
Size: S , M , ML , L , XL , XXL
RockShox 35 Gold, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel
*Shock: Size: XS , S

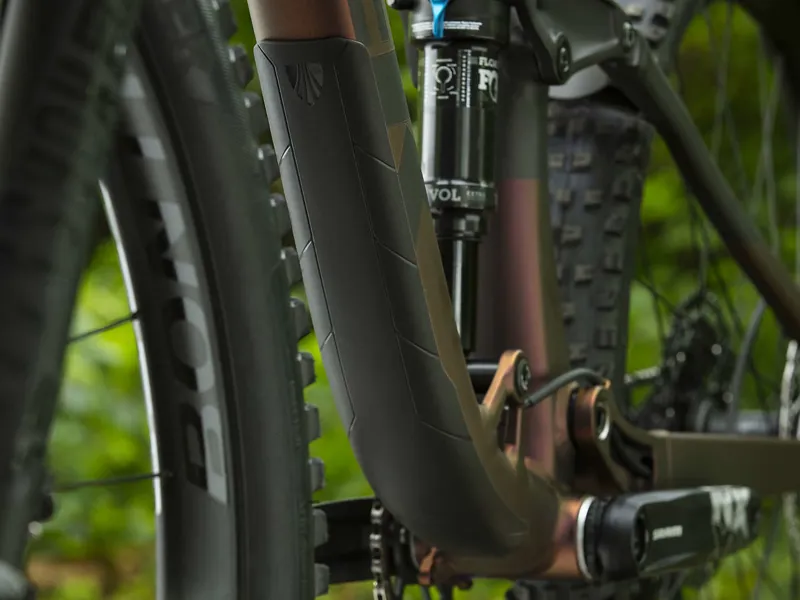

Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210x52.5mm
Size: S , M , ML , L , XL , XXL
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210x55 mm
Wheels
Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

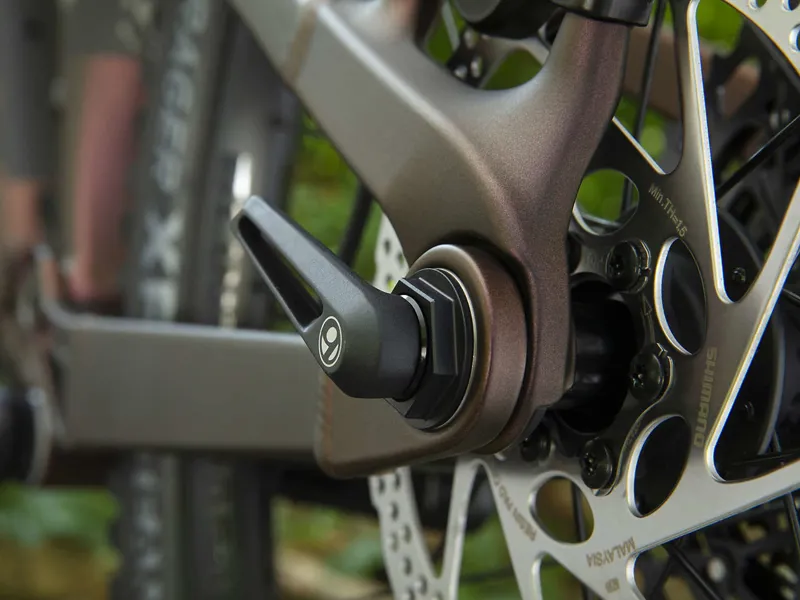

Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
*Tire: Size: XS , S

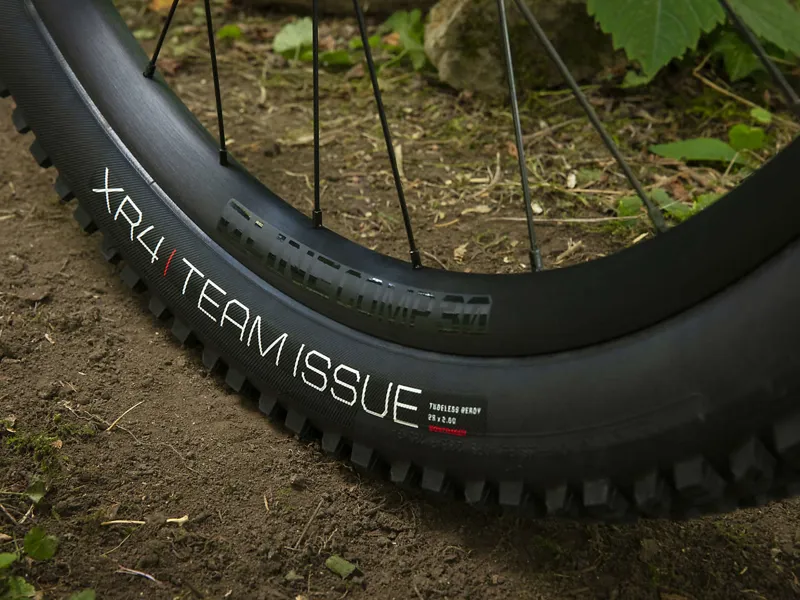

Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Size: S , M , ML , L , XL , XXL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
Drivetrain
Shifter: SRAM NX Eagle, 12-speed

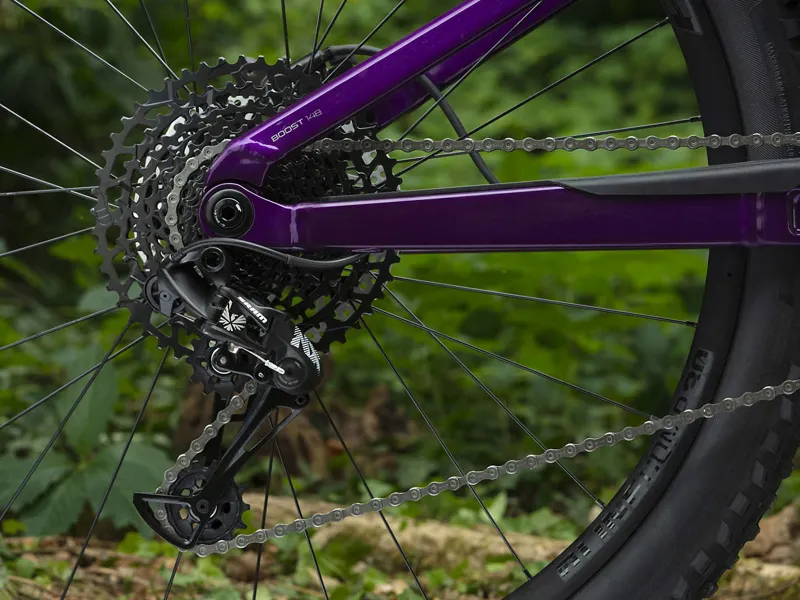

Rear Derailleur: SRAM NX Eagle
*Crank: Size: XS , S

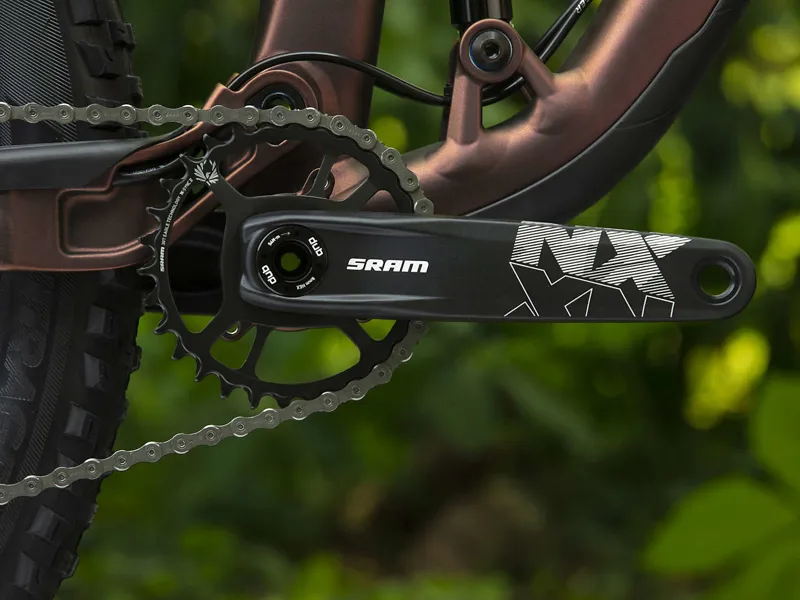

SRAM NX Eagle, DUB, 30T steel ring, Boost, 170mm length
Size: M , ML , L , XL , XXL
SRAM NX Eagle, DUB, 30T steel ring, Boost, 175 mm length
Bottom Bracket: SRAM DUB, 92 mm, PressFit
Cassette: SRAM PG-1230 Eagle, 11-50, 12-speed
Chain: SRAM NX Eagle, 12-speed
Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M , ML , L , XL , XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on

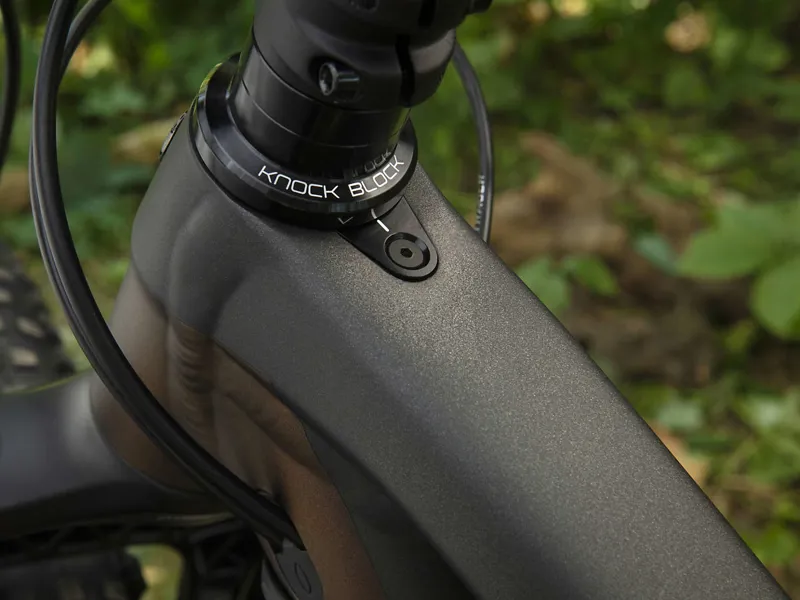

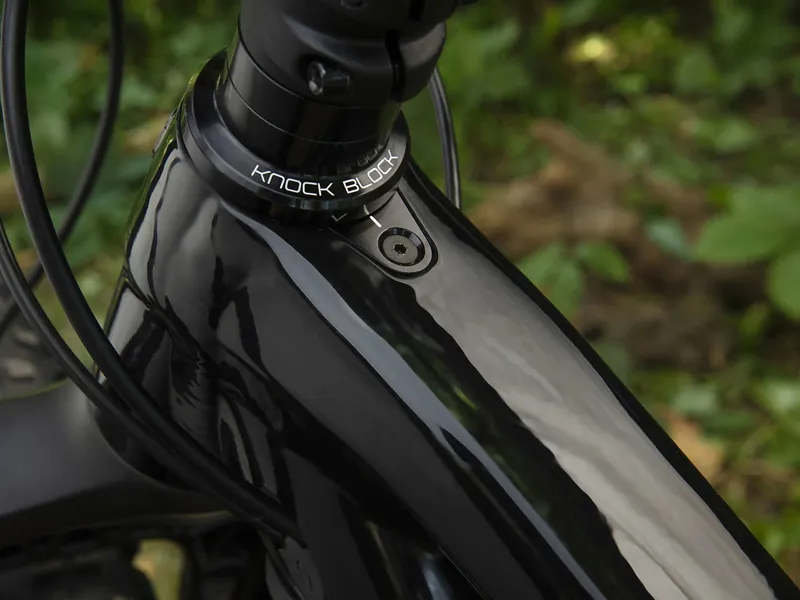

Stem: Bontrager Rhythm Comp, 31.8m, Knock Block, 0-degree, 50 mm length
Brake: Shimano hydraulic disc, MT401 lever, MT400 caliper
Weight
Weight: M - 15.05 kg / 33.19 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Bike and frame weights are based on Trek pre-production painted frames at the time of publication. Weights may vary in final production
