Trek Fuel EX 5 Deore 2020 All Mountain Bike Black/ Purple Lotus

Season:2020

Brand:Trek

Code:294592020BLKLotus

Fuel EX 5 is the gateway to full suspension trail bikes. A 140 mm fork and 130 mm of rear travel, a Shimano 1x10 drive train, a dropper post for getting low on descents and Shimano hydraulic disc brakes make Fuel EX 5 a high-value, high-performance mountain bike with exceptional versatility.

It's right for you if...

You're ready to go full suspension, and you want a versatile trail bike at a great value. You want a ride that's sure-footed, capable and responsive, so you can stay in control no matter where you're riding.

The tech you get

A lightweight Alpha Platinum Aluminium frame with internal cable routing, a Straight Shot down tube for extra stiffness in the rough and a Knock Block steerer stop to protect against spinning bars. A 140 mm RockShox Recon RL fork, 130 mm of rear travel with a RockShox Deluxe Select Plus shock, a durable 10-speed Shimano Deore drive train, dropper post and hydraulic disc brakes.

The final word

Full suspension performance without the sticker shock. Fuel EX 5 has the same frame and suspension tech found on our higher-end alloy Fuel EX models. Quality RockShox suspension, a dropper post and a Shimano 1x10 drive train make for an ideal introduction to the world of full suspension trail riding.

Why you'll love it

    You're getting incredible features and the latest mountain bike innovations at an exceptional value
    It has the capability of far more expensive trail bikes: it shreds singletrack and can even handle marathon races
    The dropper post lets you lower your saddle on the fly so it's out of the way on descents
    The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
    We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝ and sizes M to XL get 29˝ wheels


Specifications

*spec applies to all sizes unless otherwise noted

Frameset

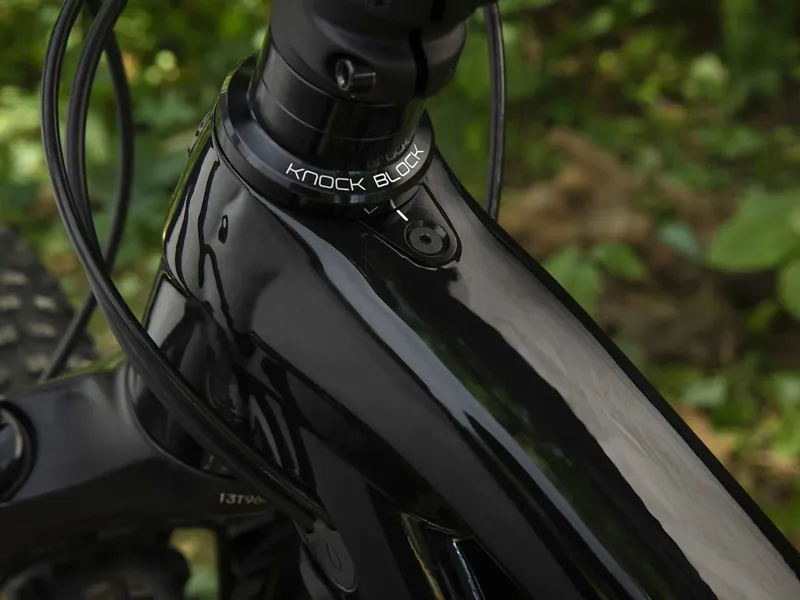

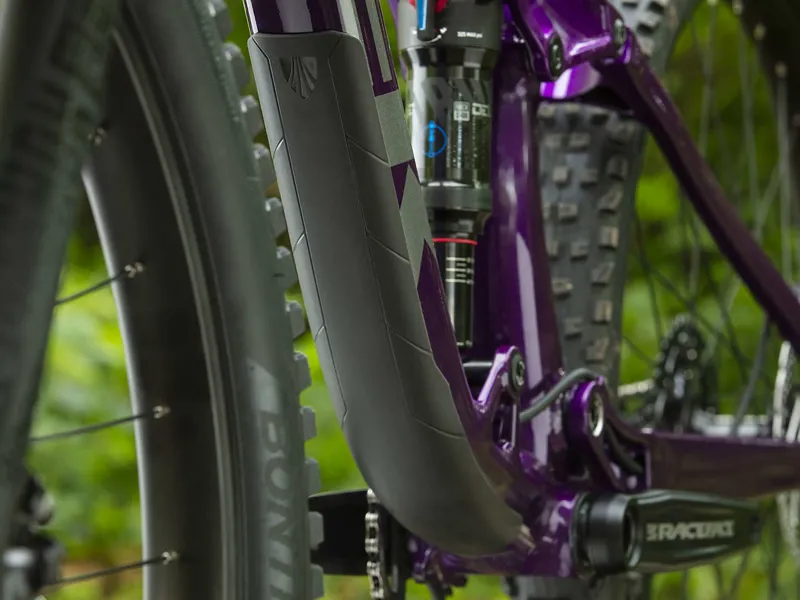

Frame: Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
*Fork: Size: XS , S
RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel
Size: S , M , ML , L , XL , XXL
RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel
*Shock: Size: XS , S
RockShox Deluxe Select+, 210x52.5mm
Size: S , M , ML , L , XL , XXL
RockShox Deluxe Select Plus, 210x55 mm

Wheels
Front Hub: Formula DC-511, 6-bolt, Boost110, 15 mm thru axle

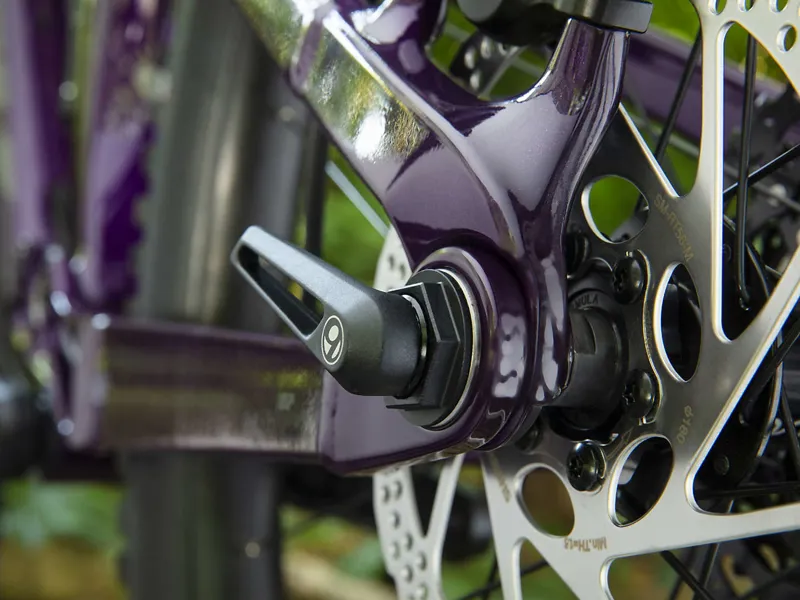

Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rim: Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve
*Tire: Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
Size: S , M , ML , L , XL , XXL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"

Drivetrain
Shifter: Shimano Deore M6000, 10-speed
Rear Derailleur: Shimano Deore M6000, mid cage, 42T max cog
*Crank: Size: XS , S

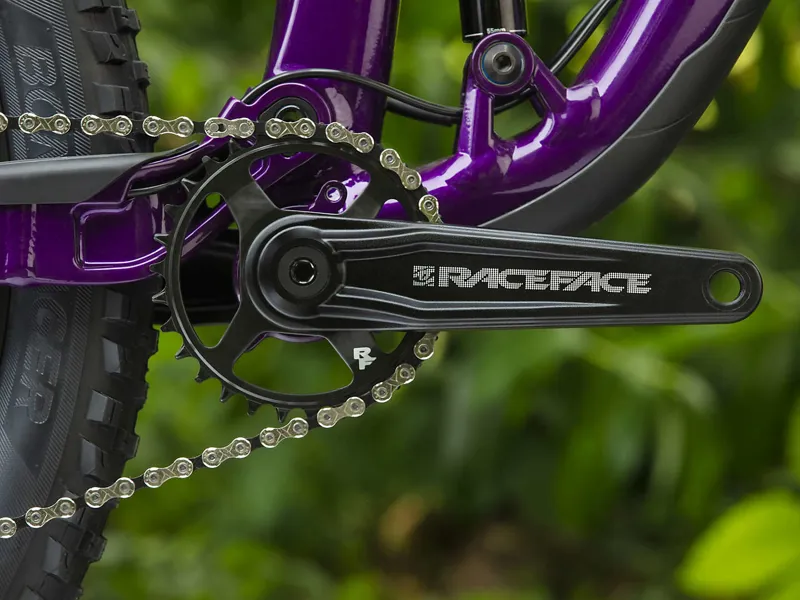

Race Face Ride, 30T steel ring, Boost, 170 mm length
Size: M , ML , L , XL , XXL
Race Face Ride, 30T steel ring, Boost, 175 mm length
Bottom Bracket: Shimano MT500, 92 mm, PressFit
Cassette: SunRace, 11-42, 10-speed
Chain: KMC X10, 10-speed

Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
*Seatpost: Size: XS , S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M , ML , L , XL , XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Rhythm Comp, 31.8m, Knock Block, 0-degree, 50 mm length
*Brake: Size: XS , S , M , ML , L , XL , XXL
Shimano MT200 hydraulic disc
Size: XS , S , M , ML , L , XL , XXL
Shimano hydraulic disc, MT201 lever, MT200 calliper

Weight
Weight: M - 15.03 kg / 33.14 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Bike and frame weights are based on Trek pre-production painted frames at the time of publication. Weights may vary in final production

Buy Trek Fuel EX 5 Deore 2020 All Mountain Bike online

Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size letter Geometry position Wheel size Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
L Low 29" 75.5° 10.5 66.5° 63.3 34.6 2.7 43.5 4.3 11.6 121.0 75.6 47.5 60.9
L High 29" 75.0° 10.5 66.0° 63.4 34.6 3.4 43.7 4.3 11.9 121.1 75.0 47.0 61.3
M Low 29" 75.5° 10.0 66.5° 60.2 34.6 2.8 43.5 4.3 11.6 117.8 74.8 44.5 60.5
M High 29" 75.0° 10.0 66.0° 60.3 34.6 3.4 43.7 4.3 11.9 117.9 74.2 44.0 60.8
ML Low 29" 75.5° 10.5 66.5° 61.8 34.6 2.7 43.5 4.3 11.6 119.5 75.1 46.0 60.9
ML High 29" 75.0° 10.5 66.0° 61.9 34.6 3.4 43.7 4.3 11.9 119.6 74.5 45.5 61.3
S Low 27.5" 75.5° 10.0 66.5° 56.7 34.1 1.4 43.5 4.3 10.8 114.3 70.6 42.0 56.8
S High 27.5" 75.0° 10.0 66.0° 56.8 34.1 2.1 43.7 4.3 11.1 114.4 70.1 41.5 57.2
S Low 29" 75.5° 10.0 66.5° 57.7 34.6 2.8 43.5 4.3 11.5 115.3 70.6 42.0 60.5
S High 29" 75.0° 10.0 66.0° 57.8 34.6 3.4 43.7 4.3 11.9 115.4 70.1 41.5 60.8
XL Low 29" 75.5° 12.0 66.5° 66.1 34.6 2.7 43.5 4.3 11.6 124.1 76.8 50.0 62.3
XL High 29" 75.0° 12.0 66.0° 66.3 34.6 3.4 43.7 4.3 11.9 124.2 76.2 49.5 62.7
XS Low 27.5" 75.5° 9.0 66.5° 54.5 34.1 1.4 43.5 4.3 10.7 111.9 70.0 40.0 55.9
XS High 27.5" 75.0° 9.0 66.0° 55 34.1 2.1 43.7 4.3 11.1 112.0 69.5 39.5 56.3
XXL Low 29" 75.5° 14.0 66.5° 68.6 34.6 2.7 43.5 4.3 11.6 126.9 80.6 52.0 64.1
XXL High 29" 75.0° 14.0 66.0° 68.8 34.6 3.4 43.7 4.3 11.9 127.0 80.0 51.5 64.5
