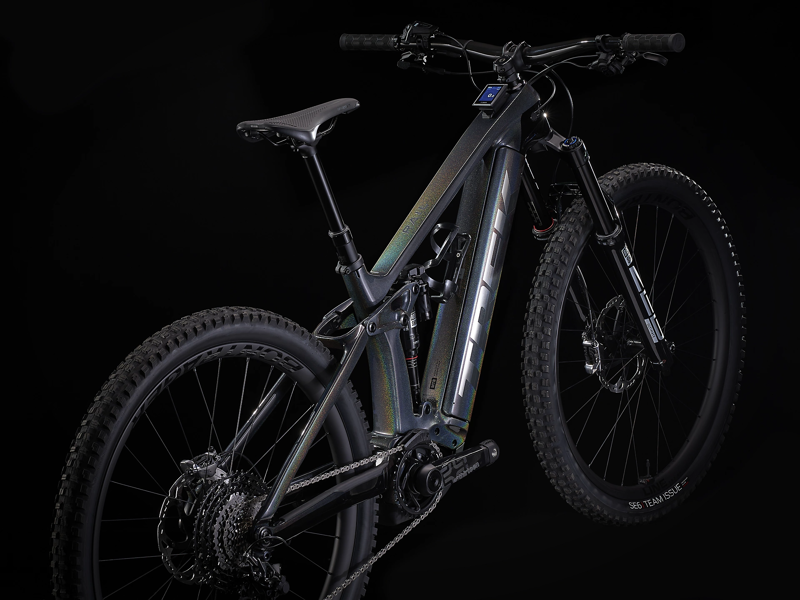

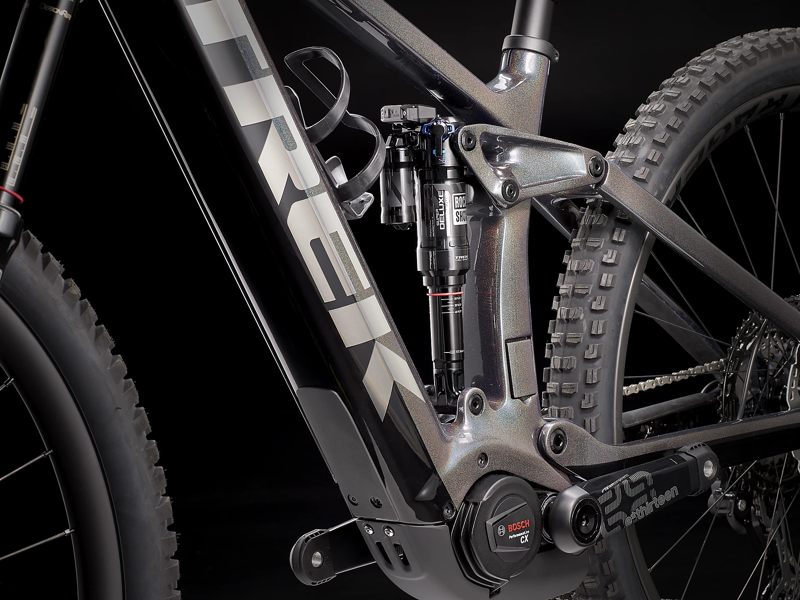

Trek Rail 9.9 XTR 2022 Electric Mountain Bike Dark Prismatic/Trek Black

Season:2022

Brand:Trek

Code:35436PrismaticBLK

The Rail 9.9 is our best long-travel electric mountain bike. You get an extra-beefy carbon frame, unbelievably smooth RockShox suspension, super-precise Shimano XTR drivetrain and a powerful Bosch Performance Line CX motor with an extra-long range battery and the new smart system LED remote and Kiox display that pair with the eBike Flow app to give you activity tracking, navigation and Bluetooth connectivity.

It's right for you if...

You want to spare no expense on your e-MTB experience. You want the most adjustability, smoothest performance, longest range and most high-tech electric assist you can get. You love customisation and want all the cool features of the Bosch smart system.

The tech you get

An upgraded OCLV Mountain Carbon frame with longer reach and oversized head tube and seat tube for maximum strength. An extra-long-range 750 Wh battery, ultra-adjustable RockShox ZEB Ultimate fork, RockShox Super Deluxe Ultimate Thru Shaft shock and ultra-responsive Shimano XTR 1x12 drivetrain. You get Bosch's new smart system Performance Line CX with a new Bluetooth® LED remote for easy connectivity and all-in-one navigation and activity tracking through the eBike Flow app, plus TyreWiz and AirWiz pressure monitoring.

The final word

The Rail 9.9 is all about top-shelf tech. RockShox's best enduro fork, Bosch's biggest battery, the super-refined shifting of XTR, an updated frame, TyreWiz and AirWiz pressure monitoring, plus Bosch's latest tech with smart system.

Specifications

*spec applies to all sizes unless otherwise noted

Frameset

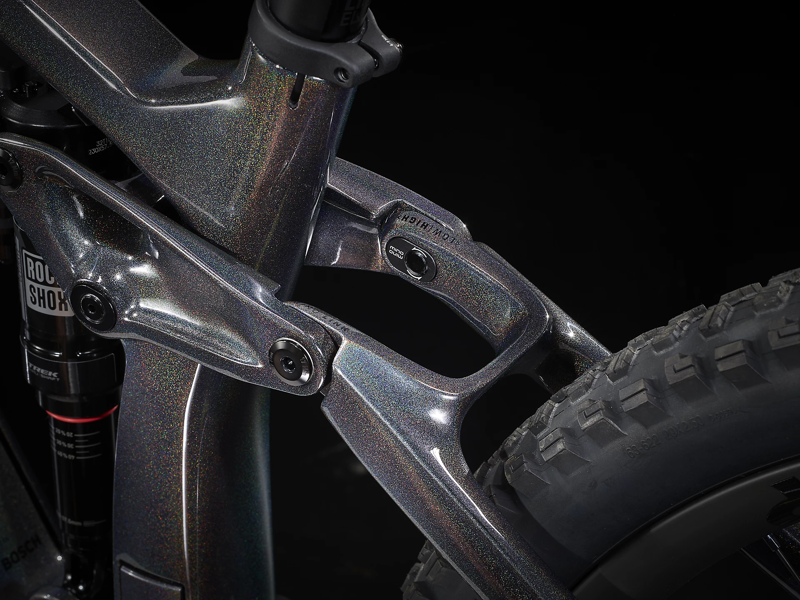

FrameNEW OCLV Mountain Carbon main frame, 1.8" lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
ForkRockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimised crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
ShockRockShox Super Deluxe Thru Shaft, AirWiz, 230x57.5mm
Max compatible fork travel170mm (580mm axle-to-crown)
Wheels
Wheel frontBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rearBontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12mm thru axle
Skewer rearBontrager Switch thru-axle, removable lever
*TyreSize: M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Size: M, L, XL

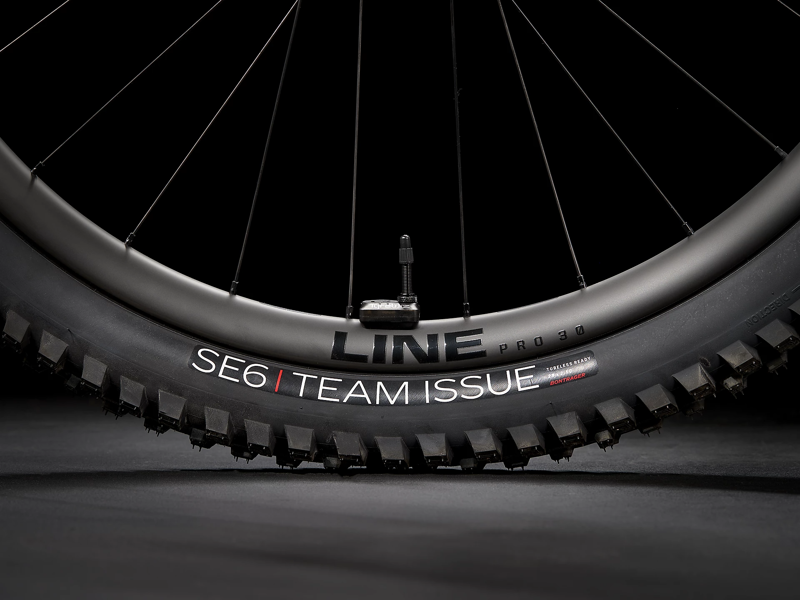

Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
*Tyre partSize: M, L, XL
Bontrager TLR sealant, 180 ml/6 oz
Size: M, L, XL
Quarq TyreWiz tire pressure monitors
Rim stripBontrager TLR
Max tyre sizeFrame: 29x2.60" Fork: See manufacturer
Drivetrain
ShifterShimano XTR M9100, 12-speed

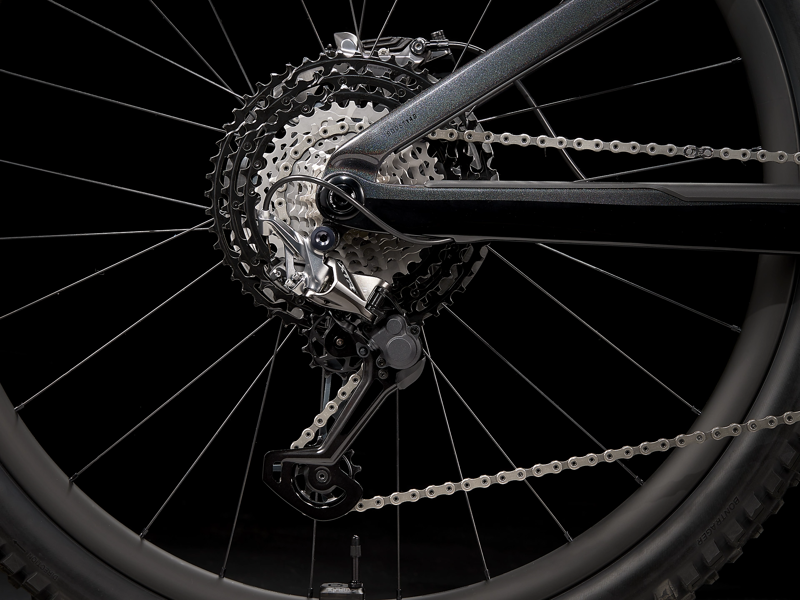

Rear derailleurShimano XTR M9100, Shadow Plus, long cage, 51-T max cog
Crank armE*thirteen E*spec Race carbon, 34T, 165 mm length
CassetteShimano XTR M9101, 10-51, 12-speed
ChainShimano Dura-Ace/XTR M9100, 12-speed
PedalVP-536 nylon platform
Max. chainring size34T
Components
SaddleBontrager Arvada, austenite rails, 138 mm width
*SeatpostSize: M
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
GripsBontrager XR Trail Elite, nylon lock-on
StemBontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
Head setKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
BrakeShimano XTR M9120 4-piston hydraulic disc
Brake rotorShimano RT86, 203 mm, 6-bolt
Accessories
BatteryBosch PowerTube 750
ChargerBosch standard 4A (230V) BES3 charger
ControllerBosch Kiox 300

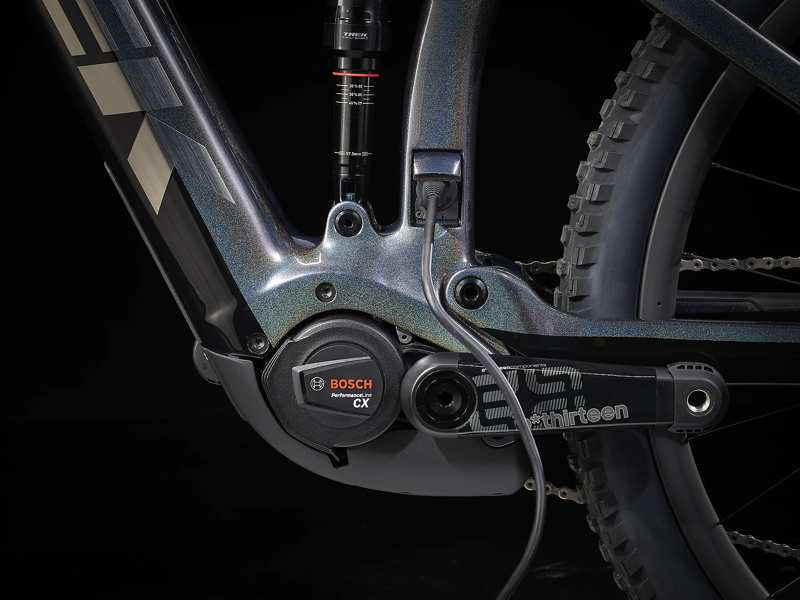

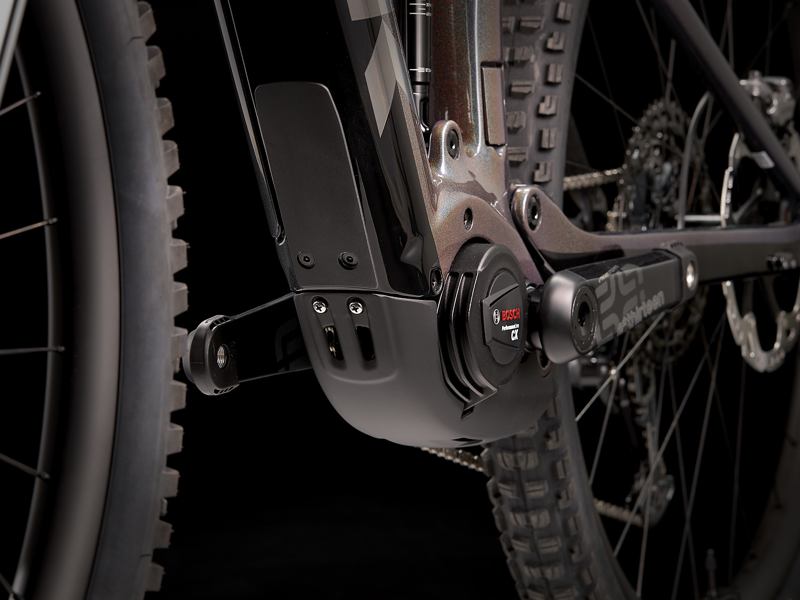

MotorBosch Performance Line CX
Weight
WeightM - 50.20 lbs / 22.77 kg (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Technical Information

Features

Bosch smart system

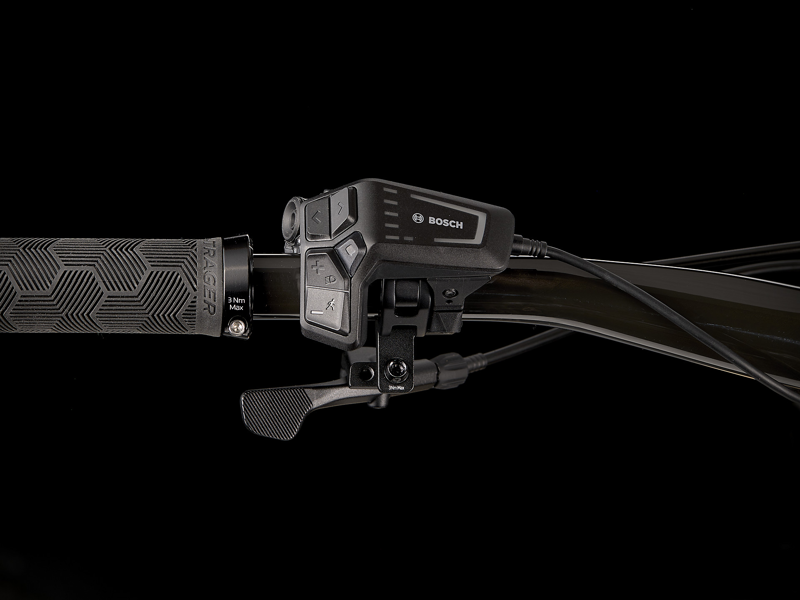

The new Bosch smart system gives you an eMTB that's more connected than ever. The new LED remote connects with the new Bosch eBike Flow app via Bluetooth. You get tons of useful features at your fingertips, and over-the-air system upgrades.

Bosch eBike Flow app

The new eBike Flow app turns your ride into a personalised experience. Use it to customise your motor's assist behaviour, track your ride stats and integrate your data with apps like Strava and Apple Health. There's even handy features like navigation and service reminders.

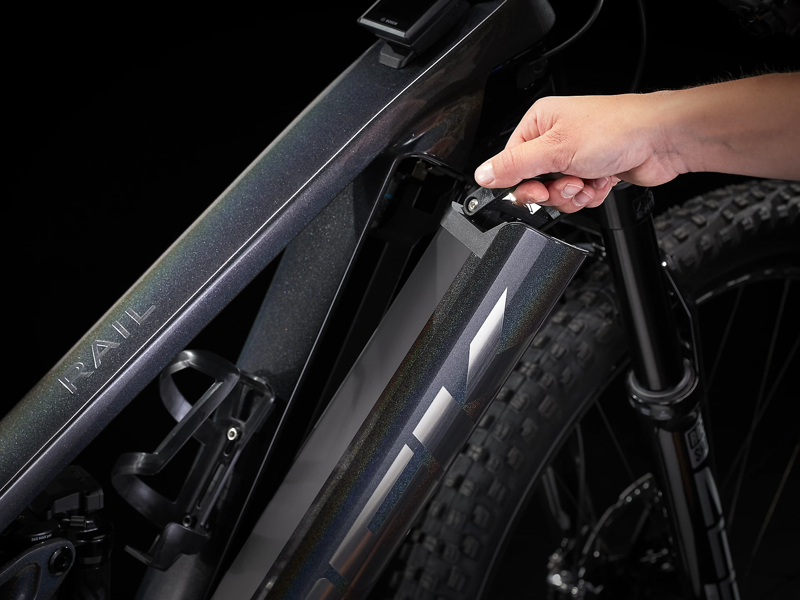

Removable Integrated Battery

RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security or just easier charging.

RockShox AirWiz and Quarq TireWiz

TyreWiz monitors your tyre pressure while AirWiz monitors your fork and shock pressure. Set your desired pressure in the SRAM AXS app and then just check the lights before each ride – red means you need a pump, green means go and ride.

RockShox Super Deluxe with Thru Shaft

With the all-new RockShox Super Deluxe Ultimate Thru Shaft, you get the most refined shock on the market, with an updated air spring and an exclusive Thru Shaft damper that gives you tenacious grip, plush control and the support you need for ripping rough descents all day.

Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size letterGeometry positionWheel sizeA — Seat tubeB — Seat tube angleEffective seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
MHigh29"42.071.2°77.1°11.064.6°60.034.62.744.74.313.0123.677.345.662.9
LHigh29"45.071.2°77.1°12.564.6°63.834.62.744.74.313.0127.777.049.164.3
XLHigh29"50.071.2°77.1°14.064.6°67.134.62.744.74.313.0131.376.852.165.6
MLow29"42.070.8°76.7°11.064.2°60.134.13.344.84.313.3123.676.845.263.3
LLow29"45.070.8°76.7°12.564.2°63.934.13.344.84.313.3127.876.548.764.6
XLLow29"50.070.8°76.7°14.064.2°67.334.13.344.84.313.3131.476.351.766.0
