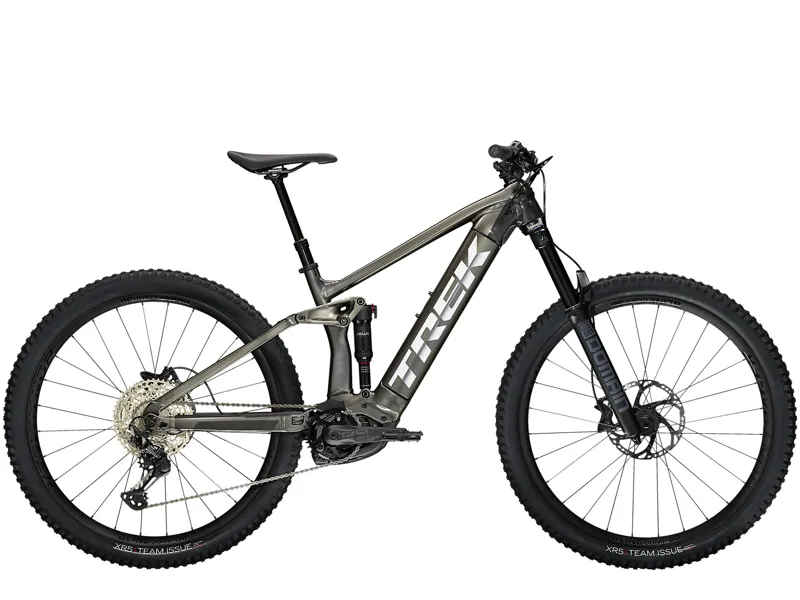

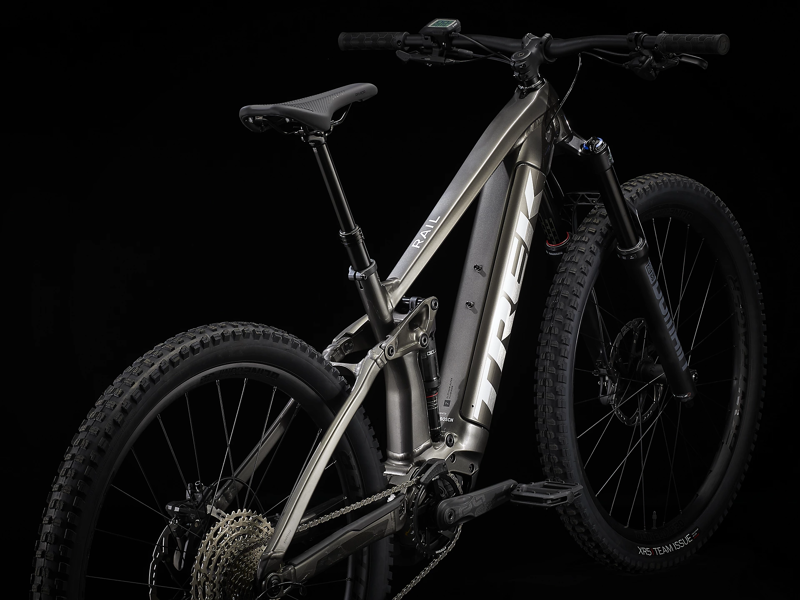

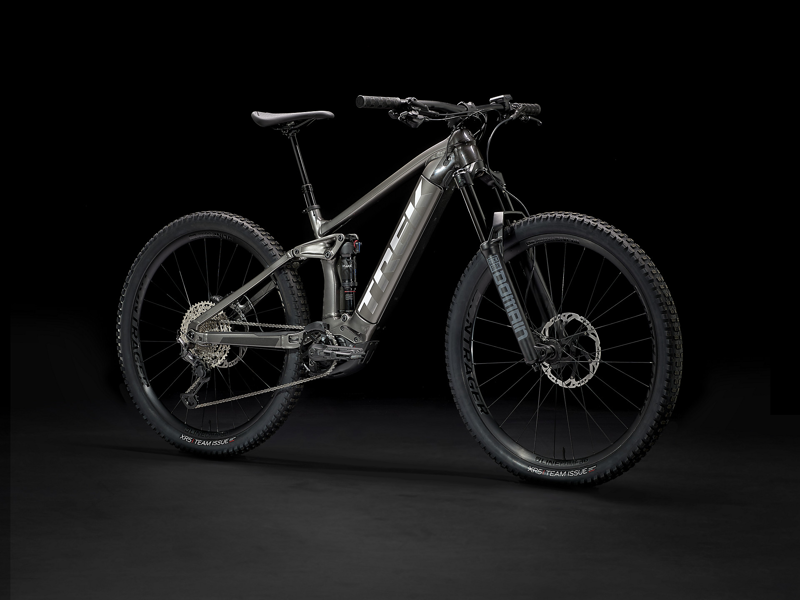

Trek Rail 7 Deore/XT 2022 Electric Mountain Bike Mercury/Dnister Black

Season:2022

Brand:Trek

Code:35035MercuryBLK

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful new Bosch drive system that's basically like having your own shuttle.

It's right for you if...

You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how amazing e-MTBs are on the mountain, and want to invest in better components.

The tech you get

A burly alloy frame with 150mm of rear travel that fully encases a 625 Wh battery, a 160 mm RockShox Domain RC fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 20 mph (25 km/h in Europe) and a Purion controller. A smooth-shifting 1x12 Shimano Deore/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

The final word

The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. But the biggest deal is that it comes with a long-range Bosch battery – which means more runs and more fun.

Why you'll love it

  1. The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day
  2. Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary

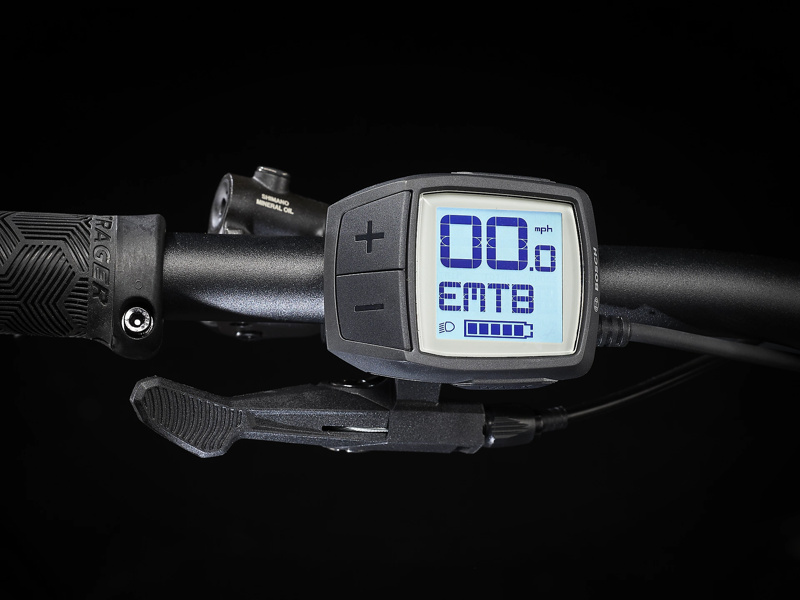

  3. The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
  4. Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
  5. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

Specifications

*spec applies to all sizes unless otherwise noted

Frameset

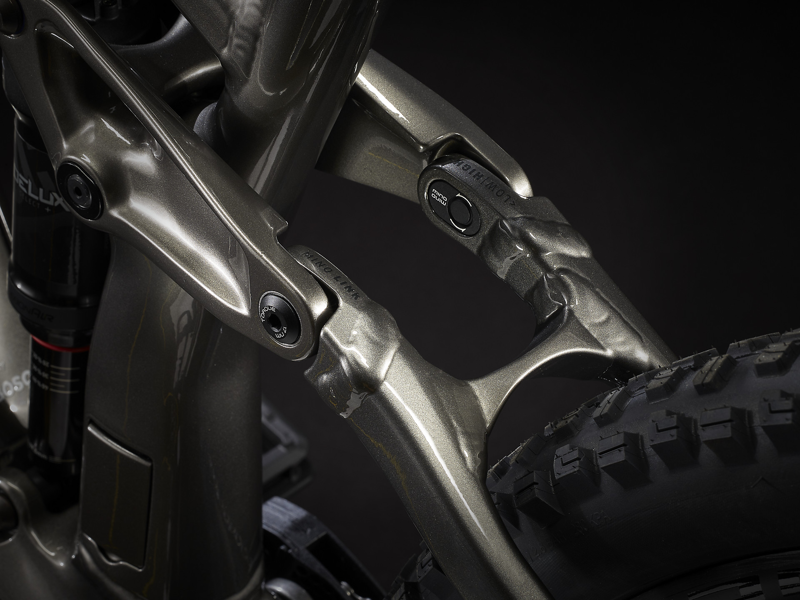

FrameAlpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
ForkRockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

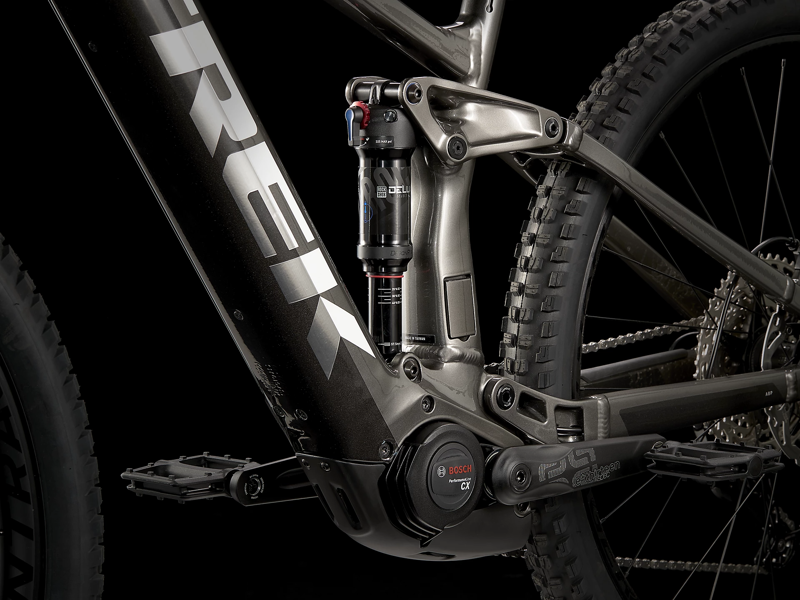

ShockRockShox Deluxe Select+, 230x57.5 mm
Max compatible fork travel170mm (580mm axle-to-crown)
Wheels
Hub frontBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rearBontrager Switch thru-axle, removable lever

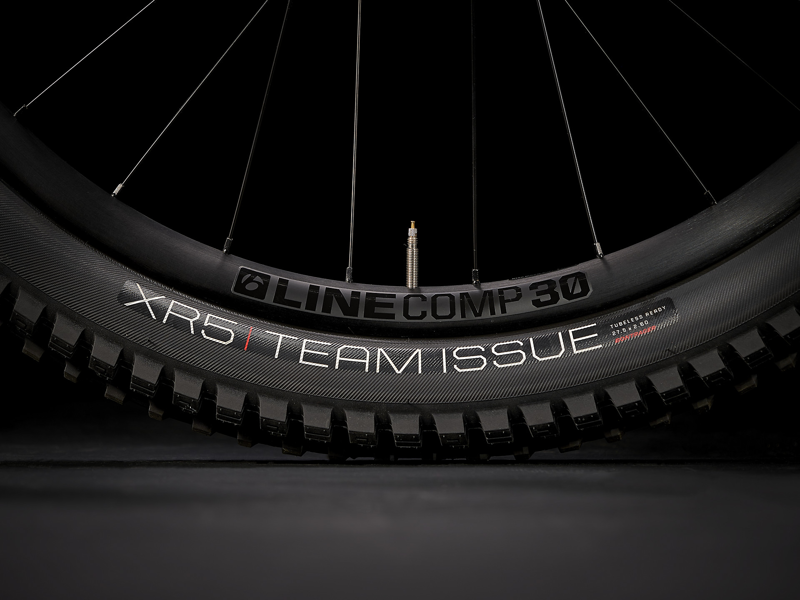

RimBontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
TyreBontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Max tyre sizeFrame: 29x2.60" Fork: See manufacturer
Drivetrain
ShifterShimano SLX M7100, 12-speed

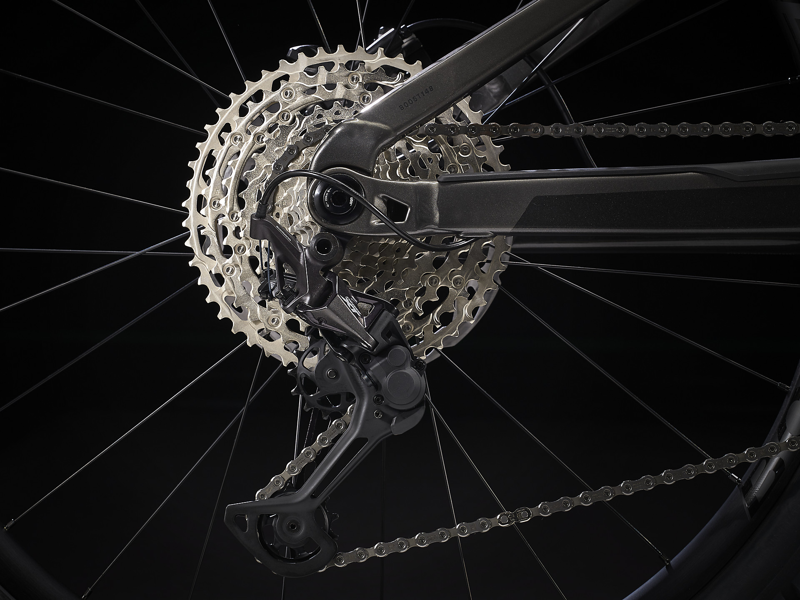

Rear derailleurShimano XT M8100, long cage, 51T max cog
Crank armE*thirteen E*spec Plus, 34T, 165 mm length
CassetteShimano Deore M6100, 10-51, 12-speed
ChainShimano Deore M6100
PedalVP-536 nylon platform
Max. chainring size34T
Components
SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length
HandlebarBontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
GripsBontrager XR Trail Comp, nylon lock-on
StemBontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Weight
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Technical Information

Features

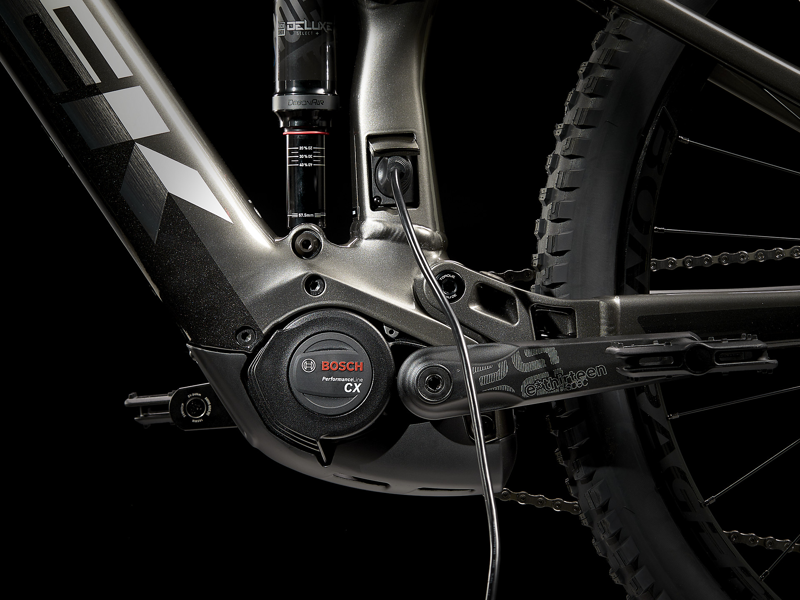

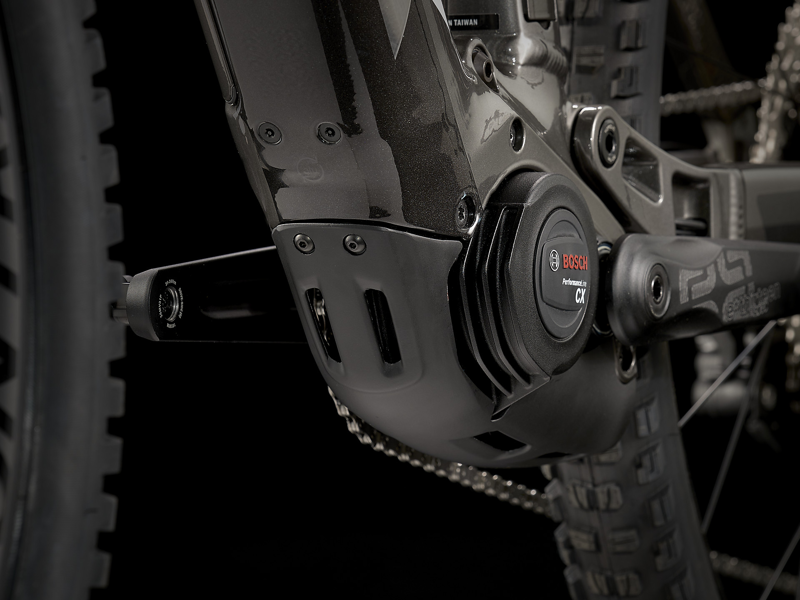

New Bosch Performance Line CX

The all-new Bosch Performance Line CX motor is lighter, smaller and quieter than previous versions, for cleaner integration and more nimble handling. It’s also more efficient so you can go further on a single battery charge. Use the intelligent eMTB mode to automatically adjust the amount of assist to match the terrain. It’s a set-and-forget mode that delivers just the right amount of power so you can focus on enjoying the ride.

Custom eMTB Lite mode

Trek eMTBs feature a custom eMTB Lite mode in place of Tour mode. It gives you more natural-feeling power delivery and longer battery life.

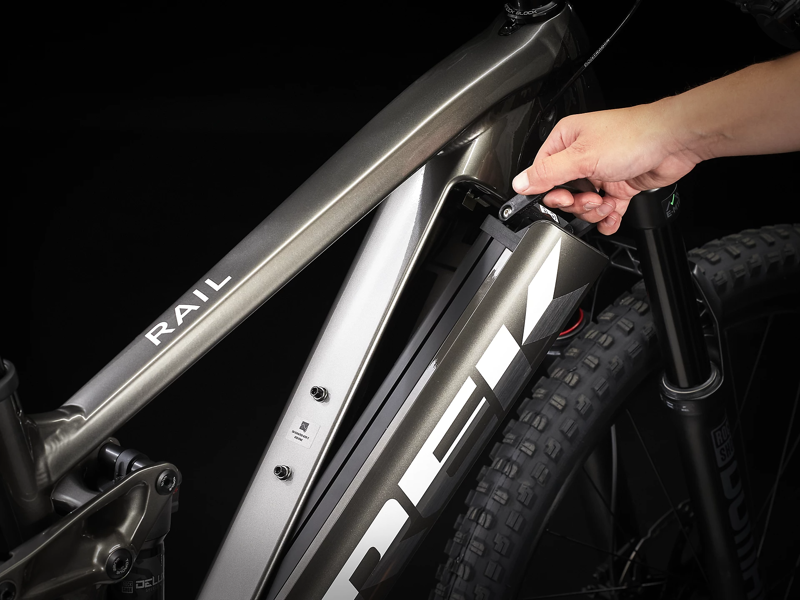

Removable Integrated Battery

RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security or just easier charging.

Knock Block

Knock Block has your frame's back when things go wrong. It prevents your handlebars from spinning all the way around in a crash, so your hoses won't get yanked and your controls won't hit the top tube.

What is the range?

To see how far you can ride your electric mountain bike on a single charge, check out Bosch’s range calculator. We’ve auto-filled the variables for this bike model and the average rider, but you can make adjustments to get your most accurate estimate.

Calculate your range
Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size numberFrame size letterGeometry positionWheel sizeA — Seat tubeB — Seat tube angleEffective seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
15.5SLow29"41.067.6°75.0°10.564.5°58.833.93.544.84.313.1119.674.342.062.6
15.5SHigh29"41.068.0°75.4°10.564.9°58.734.42.944.74.312.7119.574.842.562.3
17.5MLow29"42.067.6°75.0°10.564.5°61.333.93.544.84.313.1122.177.344.562.6
17.5MHigh29"42.068.0°75.4°10.564.9°61.134.42.944.74.312.7122.077.845.062.2
19.5LLow29"45.067.6°75.0°11.064.5°63.433.93.544.84.313.1124.376.246.563.0
19.5LHigh29"45.068.0°75.4°11.064.9°63.334.42.944.74.312.7124.376.747.062.7
21.5XLLow29"50.067.6°75.0°12.064.5°66.633.93.544.84.313.1127.877.549.563.9
21.5XLHigh29"50.068.0°75.4°12.064.9°66.534.42.944.74.312.7127.778.049.963.6
