Frame
500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
DT Swiss G1800, tubeless compatible, 100x12 mm thru axle
Wheel rear
DT Swiss G1800, tubeless-compatible, 148x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Skewer rear
Bontrager Switch thru axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Shifter
Shimano Ultegra R8020, 11-speed
Front derailleur
Shimano Ultegra R8000, braze-on

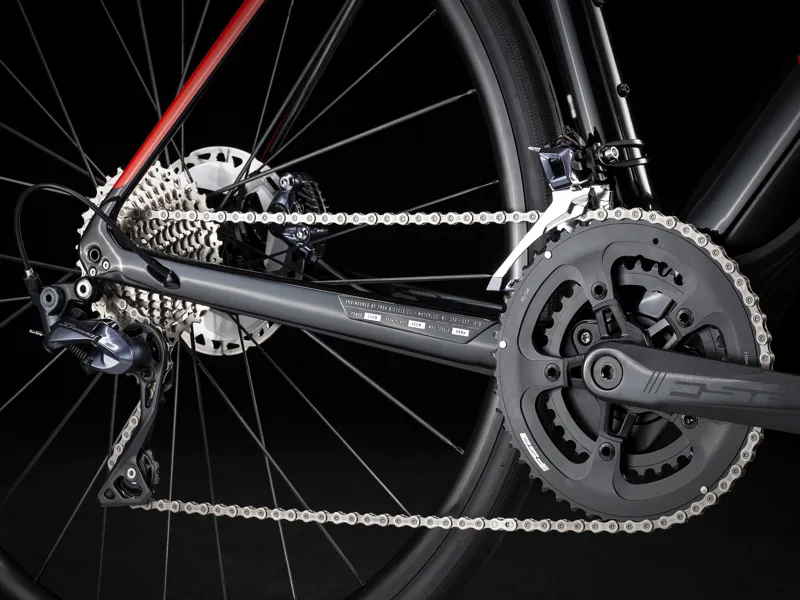

Rear derailleur
Shimano Ultegra R8000, long cage, 34T max cog
Crank
Size: 50/52, FSA Alloy for Fazua, 50/34 chainrings, 170mm lengthSize: 54/56, FSA Alloy for Fazua, 50/34 chainrings, 172.5mm lengthSize: 58/60/62, FSA Alloy for Fazua, 50/34 chainrings, 175mm length
Cassette
Shimano Ultegra HG800-11, 11-34, 11-speed
Chain
Shimano Ultegra HG701, 11-speed
Saddle
Bontrager Arvada Elite, stainless steel rails, 138 mm width
Seatpost
Size: 50/52/54/56, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length
Size: 58/60/62, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length

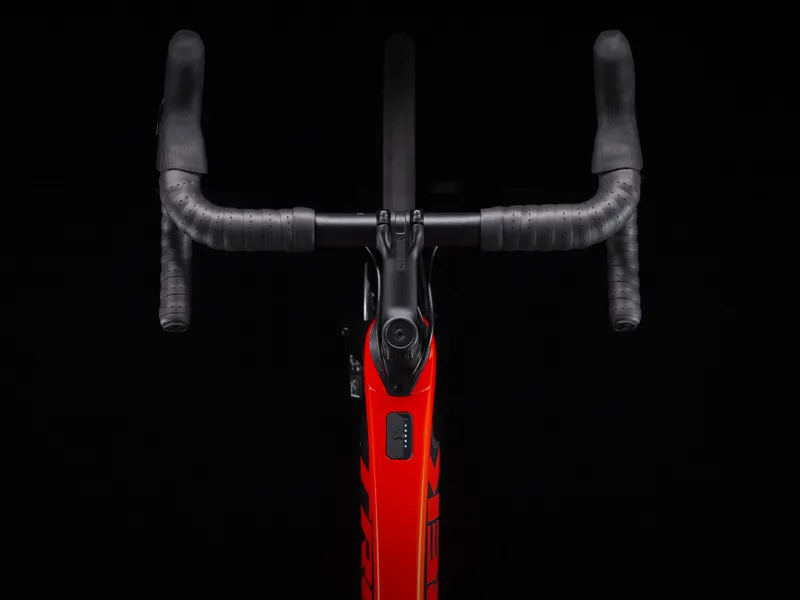

Handlebar
Size: 50/52, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width
Size: 54/56, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width
Size: 58/60/62, Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 50, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52/54, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56/58, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60/62, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake
Size: 50/52/54/56/58/60/62, Shimano Dura-Ace hydraulic disc
Size: 50/52/54/56/58/60/62, Shimano Ultegra hydraulic disc
Brake rotor
Size: 50/52/54/56/58/60/62, Shimano MT900, 160 mm, CenterLock
Size: 50/52/54/56/58/60/62, Shimano EM810, 160 mm, CenterLock
Size: 60/62, Shimano RT800, 160 mm, CenterLock

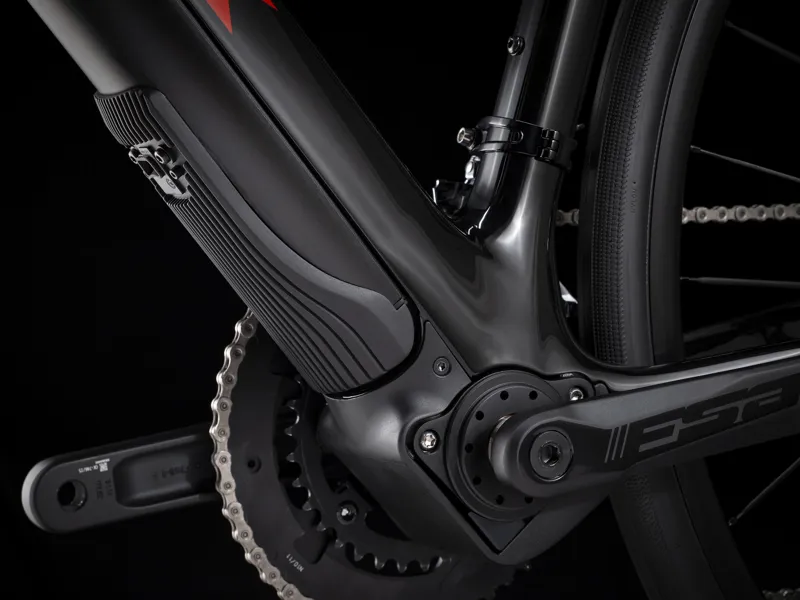

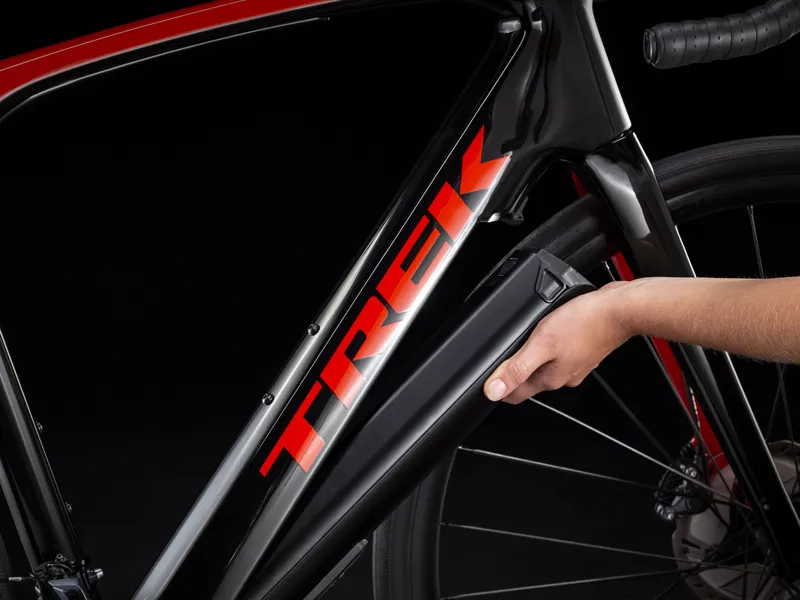

Fazua Drive Pack
Size: 50/52/54/56/58/60/62, Fazua Evation Drive Pack, 25 kph max assist
Size: 50/52/54/56/58/60/62, Fazua Evation 1.0, 250 Wh
Size: 50/52/54/56/58/60/62, Fazua Evation charger

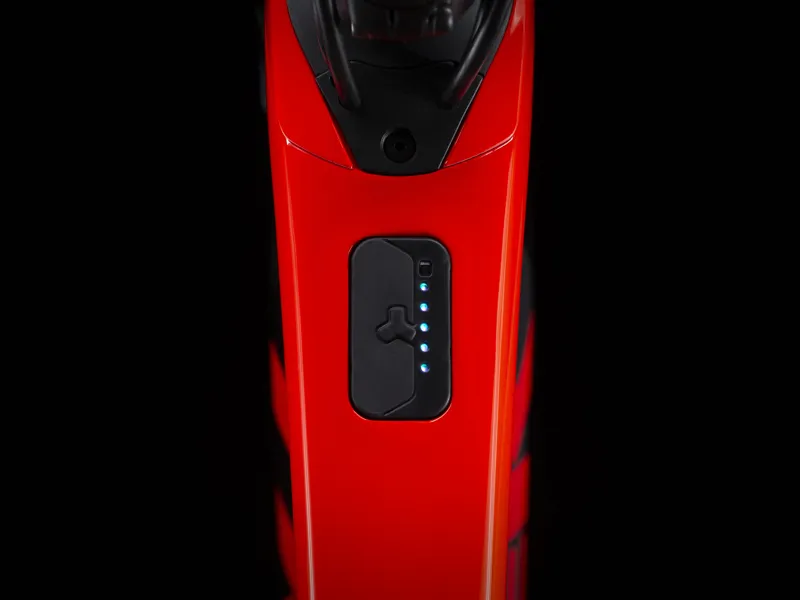

Size: 50/52/54/56/58/60/62, Fazua Evation touch remote
Weight
32.3 lb / 14.7 kg with drive pack, 26 lb / 11.8 kg without drive pack (including storage cover, sold separately)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
