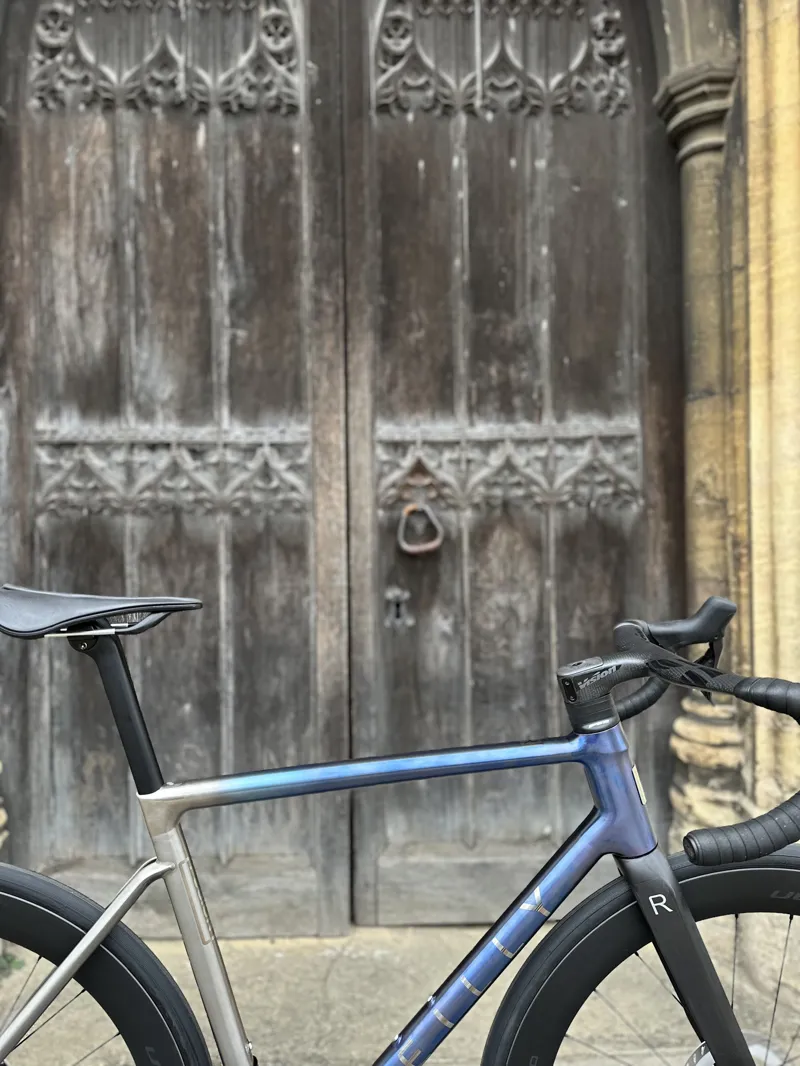

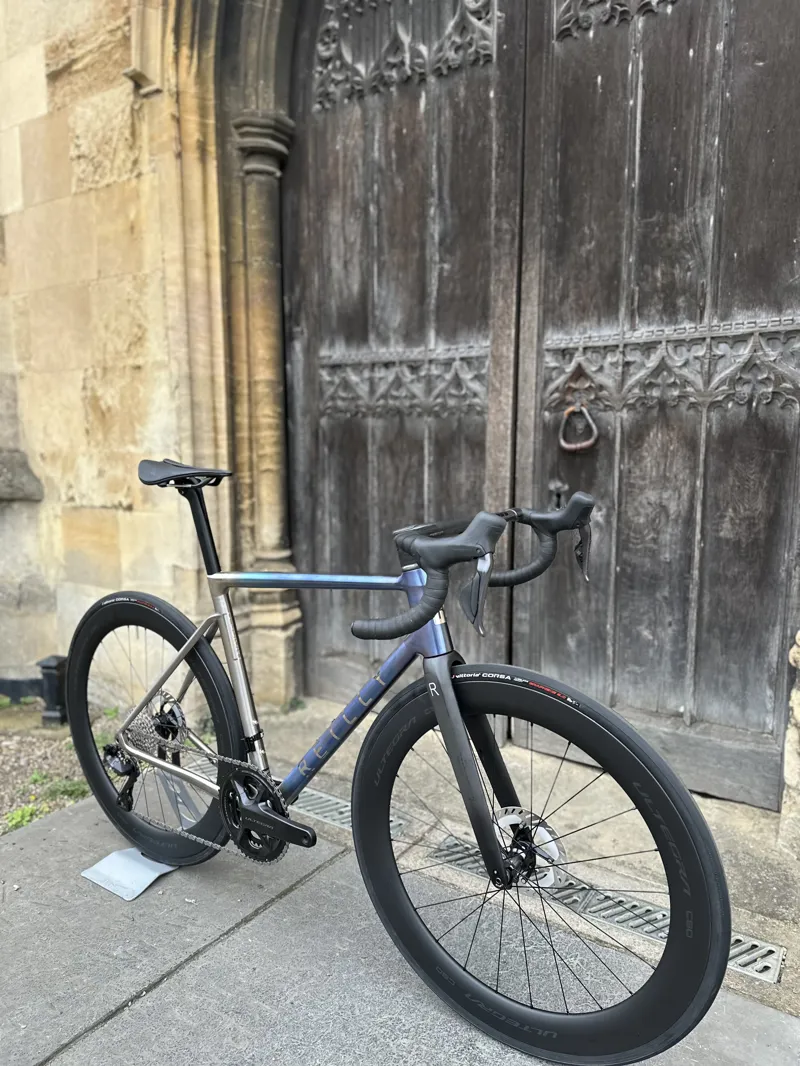

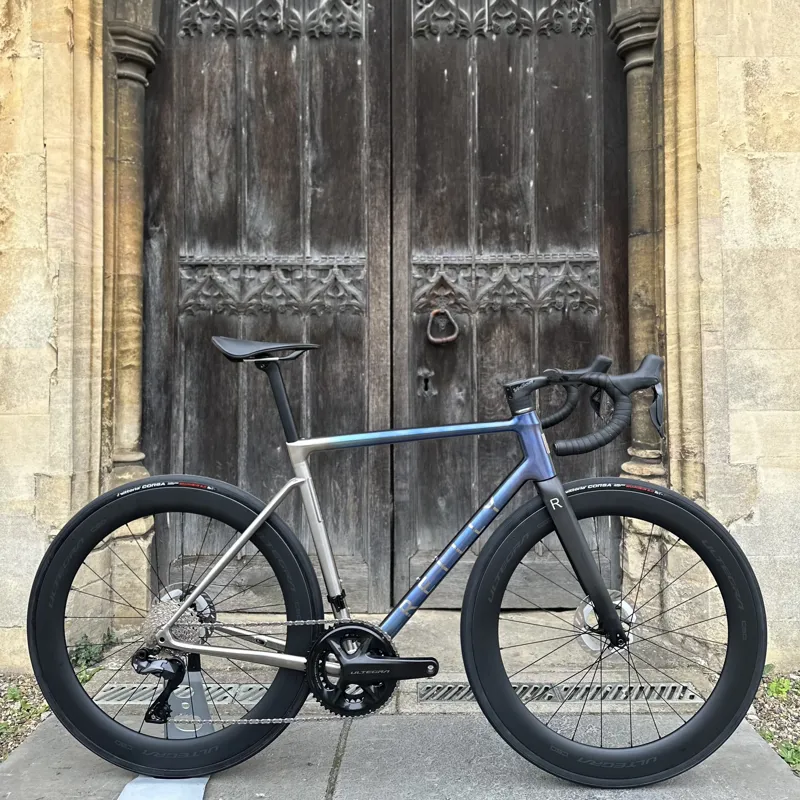

Reilly Fusion Ultegra Di2 ONE-OFF Medium

Brand:Reilly Cycle Works

Code:Reilly-Fusion-Ano-Ult-M

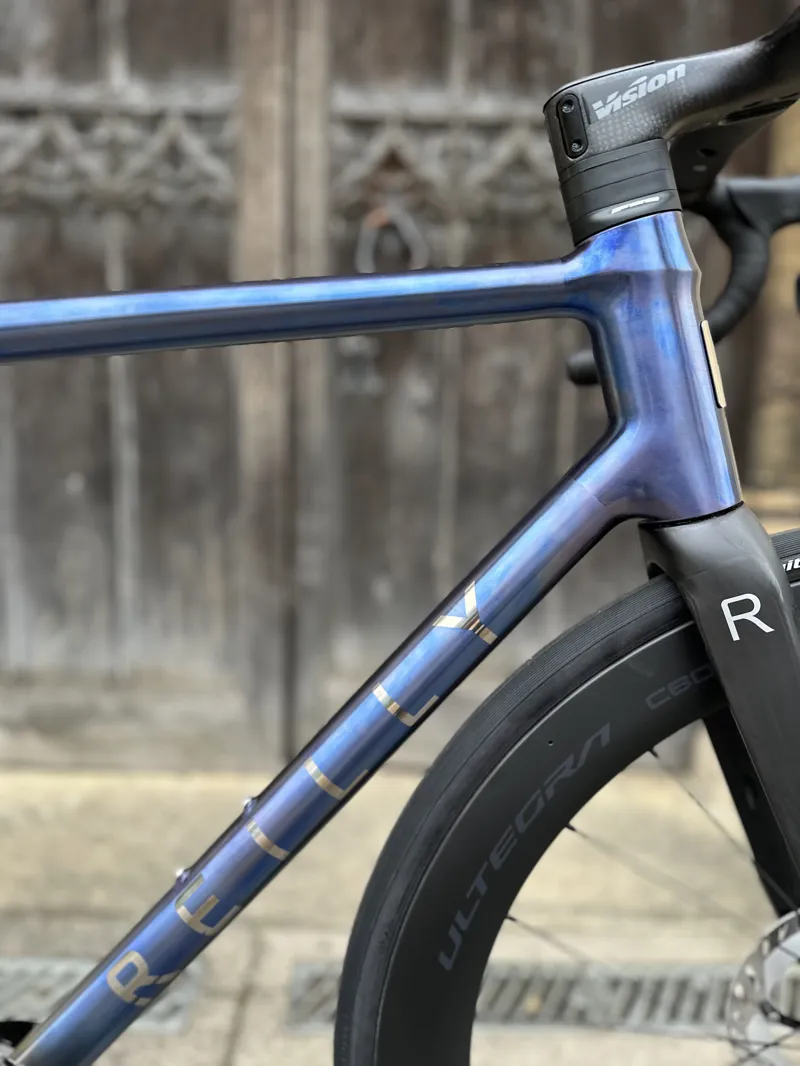

TheREILLY FUSION represents an evolution of Reilly’s road series, combing classic Reilly race geometry, top grade hydroformed titanium tubes, and advanced engineering to create a light, aerodynamic titanium frame to rival carbon equivalents. In a nod to tradition, Reilly’s innovative use of investment casting makes theFUSION a distinctive ti offering in a market of ubiquitous carbon frames.

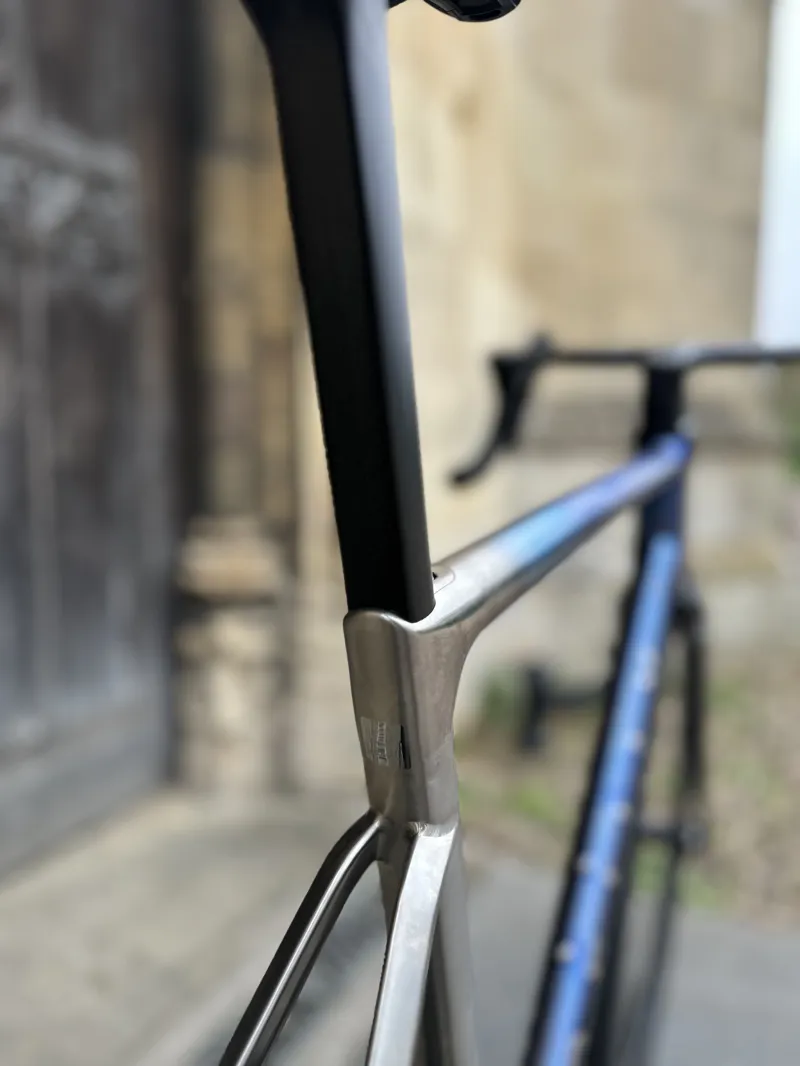

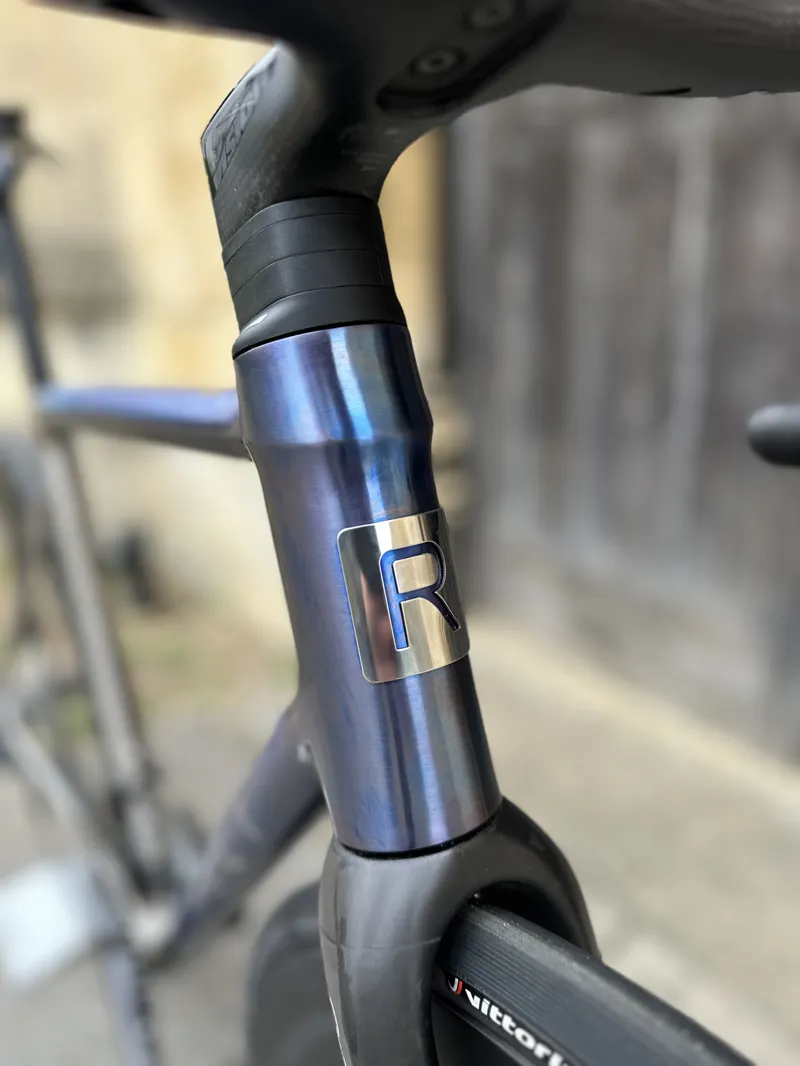

The nature of investment casting allowed Reilly to mimic the aero shapes usually associated with a carbon mould or 3D printing. The seamless welding of the investment cast parts to 3AL-2.5V tubing highlights the hand-crafted detail associated with all Reilly frames. Fully integrated cable routing gives the bike a sleek and minimal cockpit, while the stunning ‘kamm tail’ tube profile brings additional aero benefit.

Neil FitzGerald, Reilly Co-founder, says of the launch:“Reilly’s Fusion is spearheading the titanium road revolution. It symbolises an exciting time for us, marking a new chapter as we build on our framebuilding heritage, while continuing to innovate to offer all customers their dream ride. We have raised the bar again for road adventurers to create a truly cutting edge bicycle frame to enjoy the great outdoors, whether that’s planning an ultra endurance road trip or sleekly navigating the daily commute.”
Technical Information
Frame: Reilly Fusion titanium frame 6AL-4V and 3AL -2.5V (Including upgraded anodised finish)

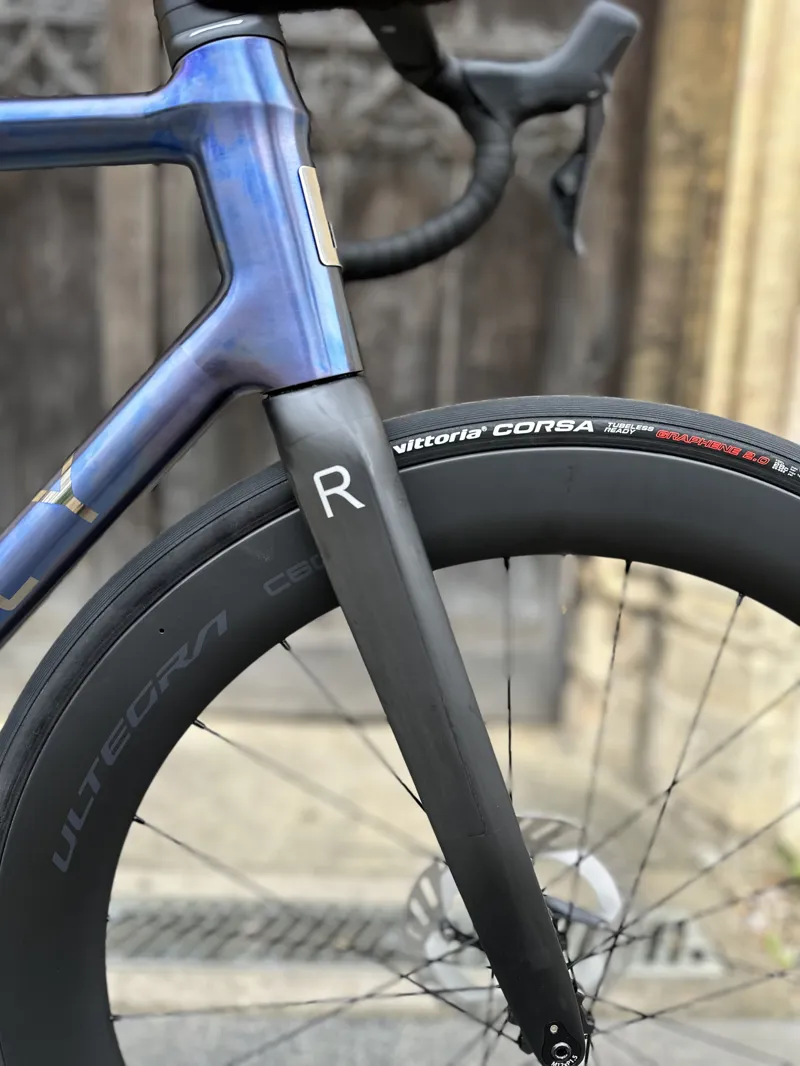

Forks: Reilly carbon race fork with internal front brake hose routing
Headset: FSA ACR
Shifters: Shimano Ultegra R8170
Brakeset: Shimano Ultegra R8170
Rotors: Shimano CL-800 160mm
Cranks: Shimano Ultegra R8100 172.5mm 52/36t
Chain: Shimano M8100
Cassette: Shimano R8101 11-34t
Wheelset: Shimano Ultegra C60 R8170 (tubeless ready)
Tyres: Vittoria Corsa TLR 700x28

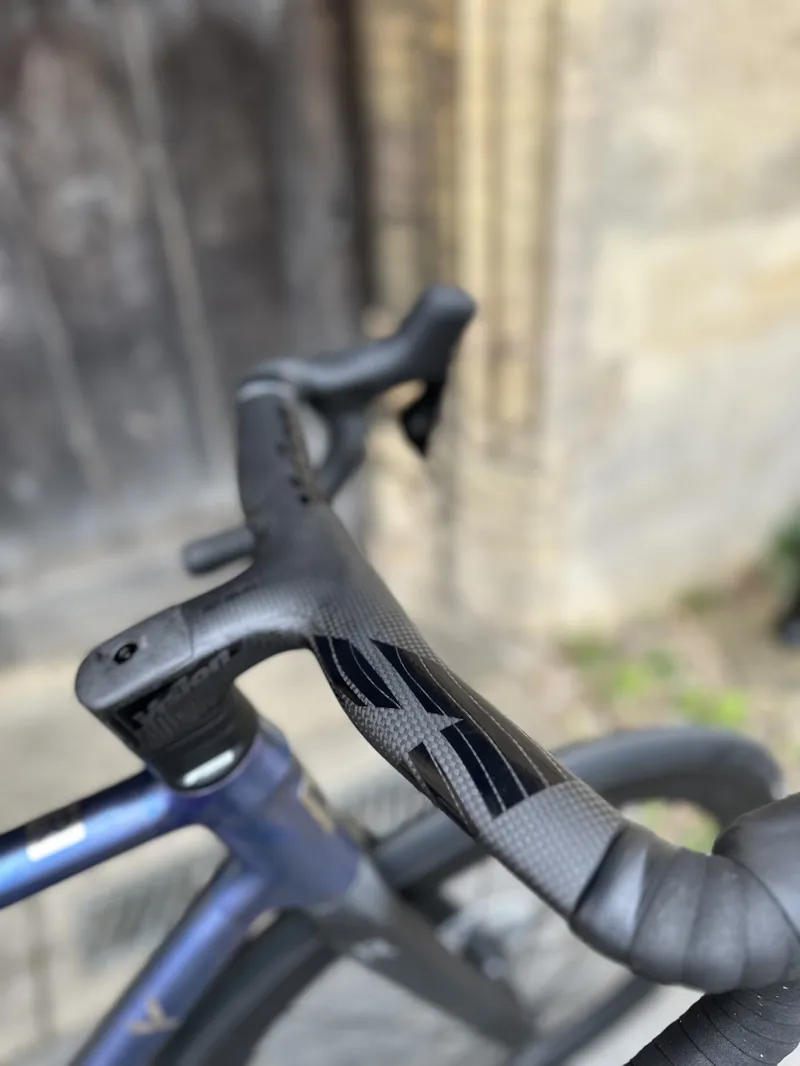

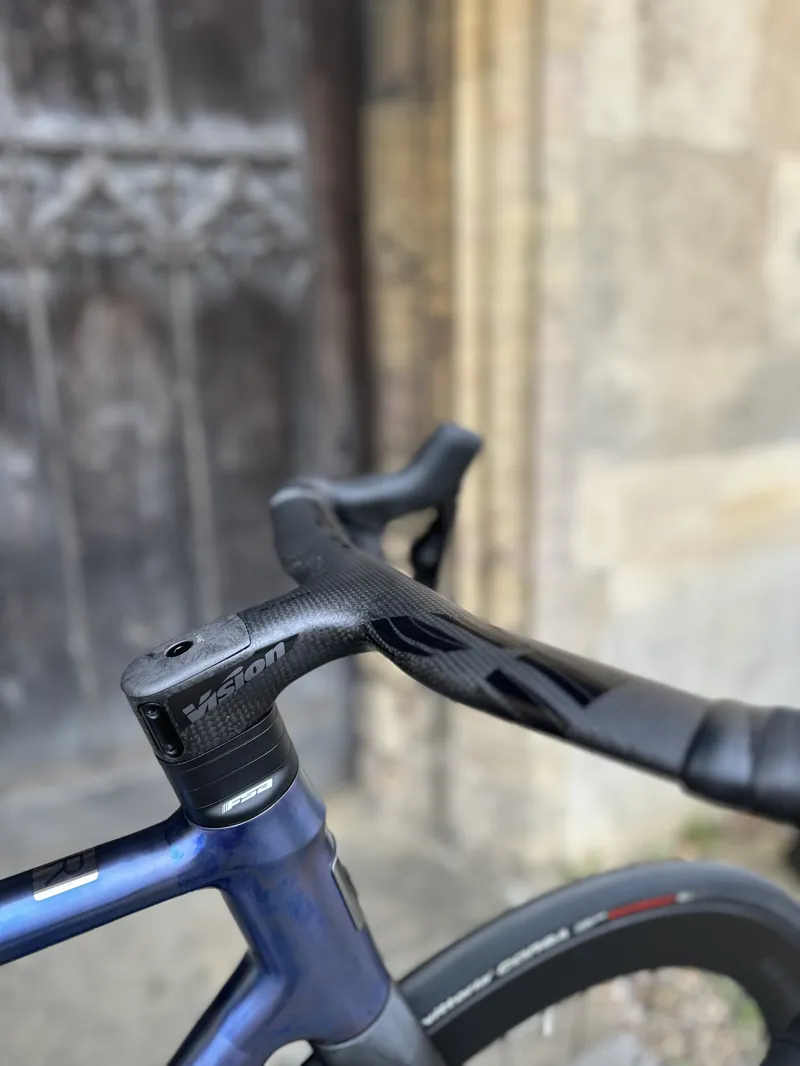

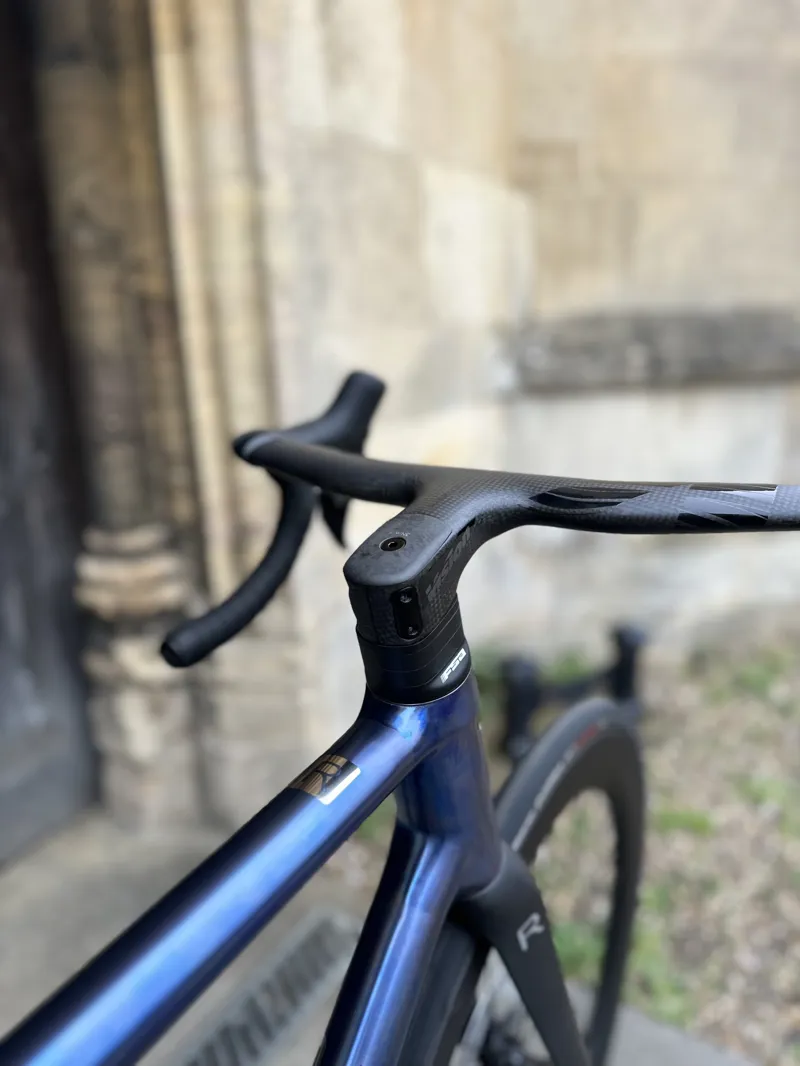

Handlebars: Vision Metron 5D ACR Evo 420mmx100mm
Saddle: Selle Italia Novus Boost
Sizing Information

Frame Geometry

SIZEEXTRA SMALLSMALLMEDIUMLARGEEXTRA LARGE
SEAT TUBE C/TOP470mm490mm510mm530mm540mm
TOP TUBE EFFECTIVE510mm530mm547mm570mm590mm
BB DROP72mm72mm72mm72mm72mm
CHAINSTAY LENGTH414mm414mm414mm414mm414mm
SEAT TUBE ANGLE75.5°74°73.5°73°73°
HEAD TUBE ANGLE71.5°72°73°73°73°
FORK RAKE43mm43mm43mm43mm43mm
FRONT CENTRE577mm577mm579mm597mm617mm
WHEELBASE980mm980mm982mm1000mm1020mm
HEAD TUBE110mm130mm150mm170mm185mm
STACK512mm533mm555mm574mm589mm
REACH378mm377mm382mm394mm410mm


Rider Height vs Frame Sizing

Rider Height (Ft/in)Rider Height (Metres)Suggested Frame Size
5'1" to 5'4"1.55m to 1.63mEXTRA EXTRA SMALL
5'3" to 5'6"1.60m to 1.68mEXTRA SMALL
5'5" to 5'8"1.65m to 1.73mSMALL
5'7" to 6'0"1.70m to 1.83mMEDIUM
5'11" to 6'2"1.80m to 1.88mLARGE
6'1" to 6'4"1.85m to 1.93mEXTRA LARGE
6'3" to 6'6"1.91m to 1.98mEXTRA EXTRA LARGE
