USAGE
Ideal for the street-carved courier, the flat-out commuter, or as a day-to-day trainer for the rider ready to take a step up to the next level of pedalling power and efficiency. If you’re looking for the ultimate street machine, you’ve found it in the Yukon Fixed.
DESIGN
The Yukon Fixed geometry has been designed with the discerning urban cyclist in mind. It’s stiff and responsive for instant acceleration and snappy handling, but still retains Titanium’s day-long ride comfort for when the city won’t let you out of the saddle.
Frame has forward facing dropouts and is identical to the standard yukon frame so can also be used as a geared bike
MATERIAL
Full 3Al/2.5V Ti construction using aerospace-grade, cold-worked, tapered and size-specific and multi-shaped tubing with CNC machined detailing.
Available in 50, 52, 54, 56, 58, 60cm & Tailormade.

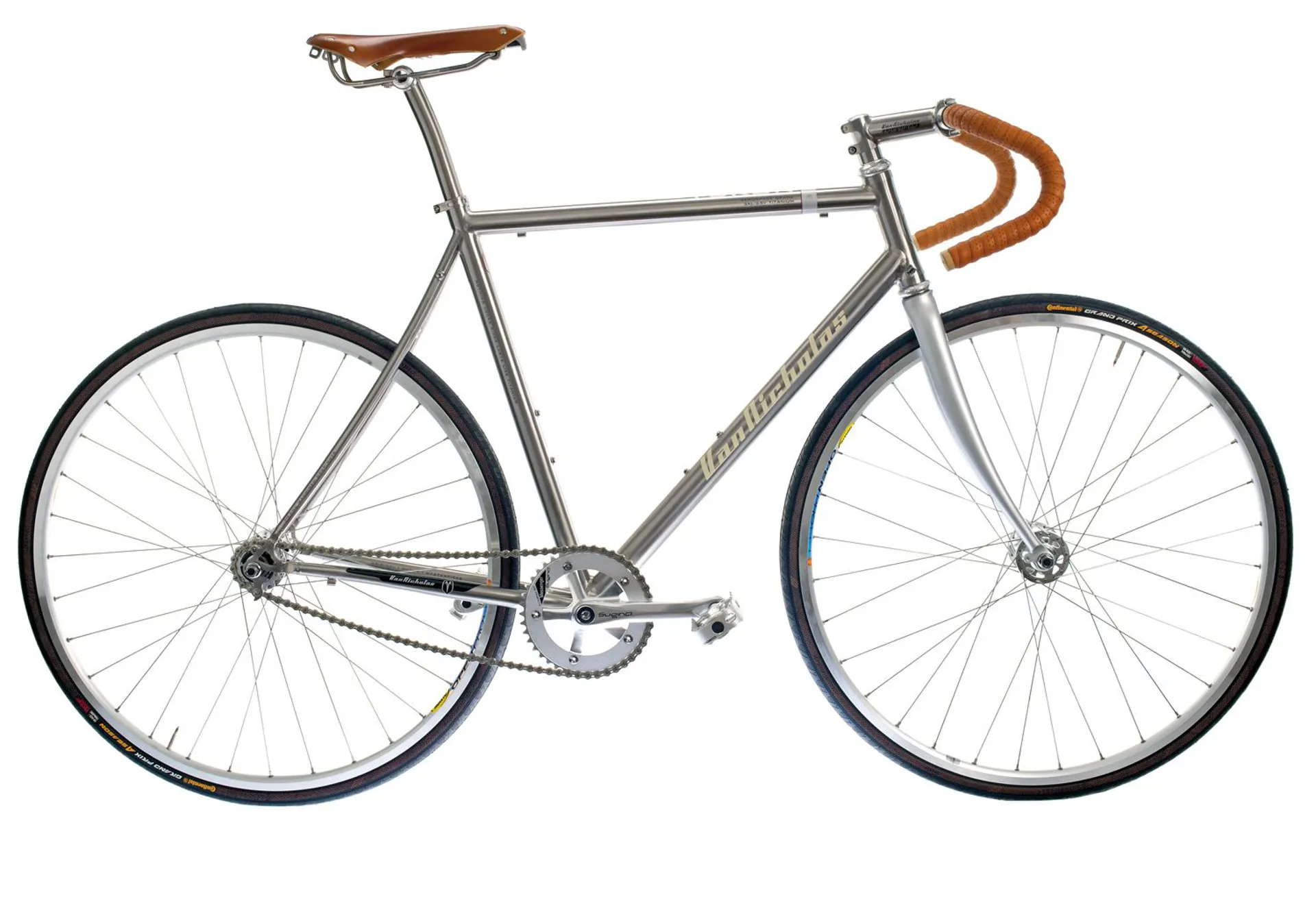

Bike Build:
2012 Yukon Audax 3AL / 2.5V Titanium Road Frame
2011 Sugino Messenger Crank Set / 42t
2011 Sugino Bottom Bracket for Messenger Crackset.
KMC ZH610 HX Silver Chain for Single Speed
No Rear Derailleur Selected
No Front Derailleur Selected
No Shift Levers Selected
Shimano 2011 BL-R600 Seperate Brake Lever for dual pivot brakes.
Van Nicholas VNT Long Reach 57mm Dual Pivot Brake Calipers, Black
Van Nicholas ROAD, Teflon Cable & Housing System
2011 Sugino Fixie sprocket for Single Speed 16T
Van Nicholas Handbuild Wheelset, Build with VNT Front and Rear hub, Rigida Sniper Rims, 32 Hole, Silver (SHIMANO ONLY)
Schwalbe Lugano Tire, 700 x 23c, Black
Schwalbe Lugano Tire, 700 x 23c, Black
Vredestein Butyl Tubes with Presta Valve
FSA Orbit MX, Threadless Sealed Bearing Headset, Black 1 1/8''
Alloy Headset Spacer 25.0mm, Black
Van Nicholas VNT Stem, Removable Face, 31.8mm OS, 100mm x 85 rise, Black
Van Nicholas VNT Classic Bend Shallow Drop Handlebar 42cm CTC, 31.8mm OS, Black
No Bar Ends Selected
Van Nicholas Natural Cork Gel Tape Embossed with Van Nicholas Logo-Ballistic Black
Van Nicholas Forged / Butted Alloy Seatpost, 300mm, 27.2, Black, 259g
Van Nicholas CNC Machined 6061 Aluminum Seat Collar, 31.8MM
Van Nicholas ''VNT'' Saddle, Leather Cover, Titanium Rails
Van Nicholas Polished Alloy Audax Fork, 1 1/8 Alloy Steerer, incl. Mudguard Eyelets
No Pedals
No Mudguards
No Rear Rack
Once you have placed your order we will contact you to discuss your stem length, crank length, steerer height etc.
If you are unsure of the size you need please email us with your height and inside leg measurement.

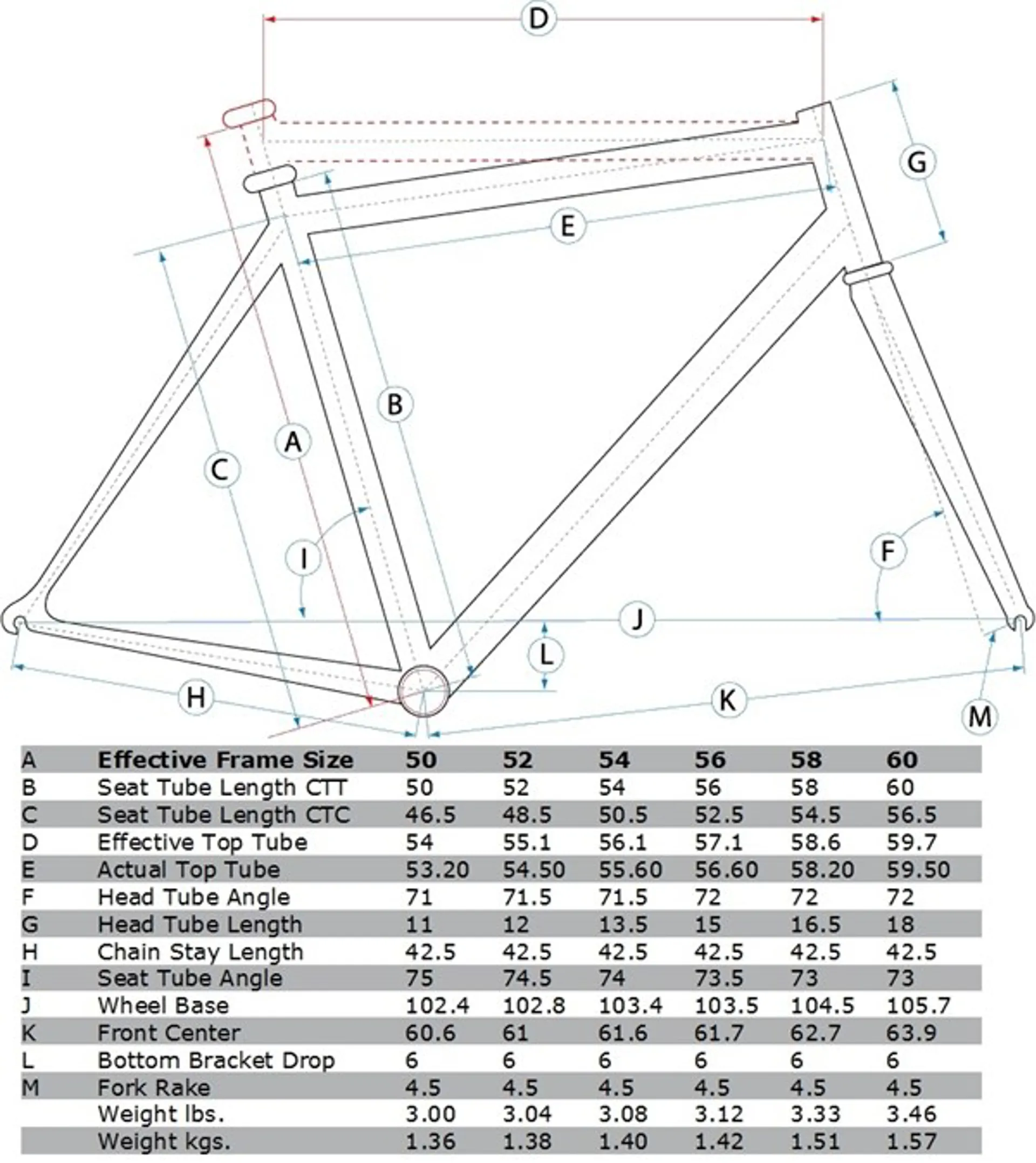

Frame Material
» Van Nicholas custom drawn 3Al/2.5V seamless cold worked Titanium tubing Tubing Specifications
» Chain Stays: 22.2mm hourglass round shaped and tapered.
» Down Tube: 40mm traditional round shaped
» Seat stays: 17mm straight round shaped and tapered
» Seat Tube: 32mm round shaped with internal 27.2mm sleeve.
» Top Tube: 32mm round shaped (Size 48, 50, 52,54,56 and 58cm)
» Top Tube: 34.9mm round shaped (Size 60cm) Frame Features
» CNC machined 68mm English threaded bottom bracket
» CNC machined sculpted 7mm thick titanium dropouts.
» Fender mounts (chain stay bridge boss, seat stay bridge boss)
» Optimal size specific tubing (Larger diameter tubing used on larger size frames).
» Seat stay and drop out rack mounts
» Van Nicholas laser cut and welded Titanium head tube badge
» WELDED water bottle Bosses; NO alloy pop-rivets. Frame Finish
» Hand brushed finish. No paint or clear coat Component Sizing
» Frame utilizes 27.2mm seat post diameter / Recommended length = 300mm
» Frame utilizes a 31.8mm / 1 ¼” seat post clamp
» Frame Utilizes a 68mm English threaded bottom bracket
» Frame utilizes a traditional 11/8” head set
rear facing dropouts available at additional cost, contact tele sale for details.
