Merida Cyclo Cross 500 Bike; 6066 Triple butted and Hydroformed aluminium frame with smooth welding, and internal cable routing.  Tapered head tube. Colors: metallic black (green/white). Frame Sizes: 47cm/ 50cm/ 52cm/ 54cm/ 56cm/ 59cm
Merida Cyclo Cross 500 Bike; 6066 Triple butted and Hydroformed aluminium frame with smooth welding, and internal cable routing.  Tapered head tube. Colors: metallic black (green/white). Frame Sizes: 47cm/ 50cm/ 52cm/ 54cm/ 56cm/ 59cm
Merida

Merida Cyclo Cross 500 Bike

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

No Quibble Returns

Online/ Mail Order Returns:
  • If for any reason you are not satisfied, you can return any item ordered via mail order provided that the goods are complete with all relevant packaging in an unused and re-saleable condition within 14 days of the date of shipment for a refund or an exchange. It's that simple.
  • We make no charge for returns - there is no restocking fee
  • Returned goods must be unused, in a saleable condition and in their original packaging with all labels still attached. Please note that items showing signs of wear or those that have been engraved, altered, resized, or damaged in any way cannot be accepted for return.
  • We cannot accept returns on clothing that has been personalised e.g. with name printing
  • We will credit the card we have on file for you this may take up to 10 working days to appear as cleared funds
  • If the original payment was via PayPal we will credit the PayPal account that the order was placed with
  • Value of goods only will be refunded.
  • For the purpose of hygiene, shorts, knicks and tights with a seatpad cannot be returned

NOTE: Please do not tape up, or attach labels direct to the retail packaging, please wrap the product first.

  • Goods must be returned within 14 days of receipt.
  • Goods must be in original packaging.
  • Goods must not be fitted or used.
  • Goods must be accompanied with a copy of your Original Receipt and aCover note with your name, address, reason for return, explaining if you would like a exchange or refund

If you return something due to it not fitting or being suitable, you will need to pay the postage costs to return it to us.

If you return something due to it being faulty we refund up to £10 carriage for bikes & frames and £5 for smaller items. If your return exceeds this amount please contact us and we can arrange collection for you. Please state a date and collection address (not Saturday or Sunday) where the goods can be collected from.

We recommend you use recorded delivery or registered post to return items so as to cover yourself against loss.

Customers outside of the UK must follow the instructions belowalong with our standard returns procedure.

To help us deal with your return to us quickly and efficiently you must mark all returns as RETURNED GOODS – FAILED SALE. This must be clearly marked on the customs information document ( CN22 and/ or CN 23) on the outside of the packaging. Failure to do so may result in the goods being refused at customs in the UK and so being returned to the sender.

If you have paid import duty for goods received, and subsequently return the goods to us, it should be possible for you to claim a refund of duties from your local Customs Authority. To do this, you will need to show them proof of duty paid and proof of export (e.g. certificate of posting) when claiming your refund.

Should you have any further queries on duties payable/refundable, please contact your local Customs Authority.

Damaged Goods

Before you sign for your goods make sure you are satisfied the contents are not damaged.

If in any doubt write: "GOODS DAMAGED"

IMPORTANT: If you sign that the item as 'has been received in good condition' you will have no claim later if the product is found to be damaged.

Damaged goods must be reported within 24 hours of receipt.

Warranty & Warranty Returns

We never want an item to fail but we recognise that failures can happen. When you buy wih Pedal Revolution you can have total piece of mind and know that we will give you issue our full attention. Our team work with suppliers and brands to ensure any warranty case is handled with the upmost care and is processed as quickly as possible.

Warranty items need to be returned to us at the below address with the package clearly marked as "Warranty" so that we can send them to the supplier to start the warranty procedure - warranty cases are handled by the brand or supplier of the goods and normally have a 1-3 week turn around.

Warranty items must be returned with a copy of your original receipt (the is a requirement of the brands/ suppliers).

No monies can be refunded until an item is accepted for warranty by the brand/ supplier

Returns Address

Returns Dept
Pedal Revolution
63-67 Bethel Street
Norwich
Norfolk
NR2 1NR

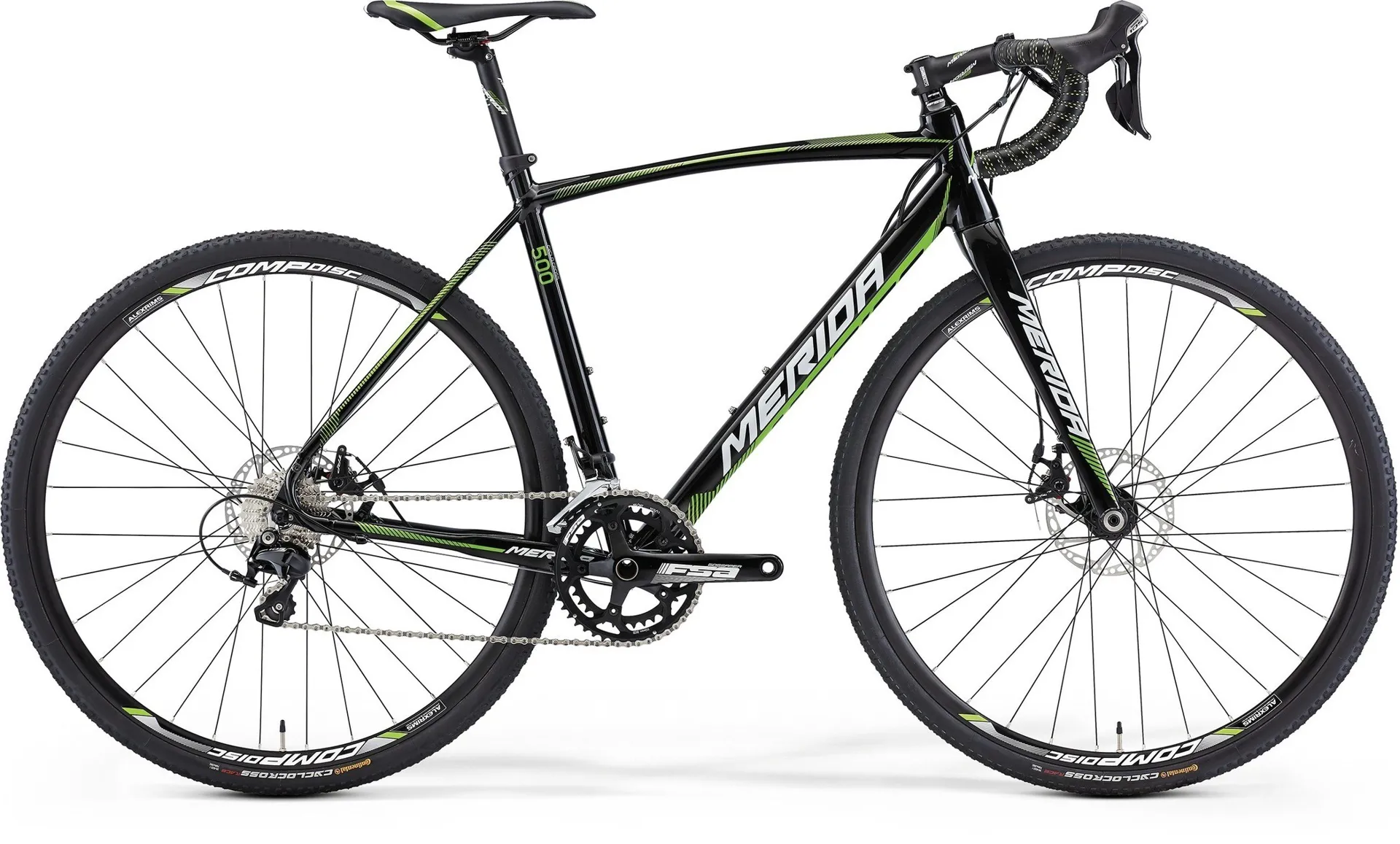

Merida Cyclo Cross 500 Bike

Brand:Merida

Code:Cyclo-Cross-500

6066 Triple butted and Hydroformed aluminium frame with smooth welding, and internal cable routing.  Tapered head tube

Colors: metallic black (green/white)
Frame Sizes: 47cm/ 50cm/ 52cm/ 54cm/ 56cm/ 59cm
Name: CYCLO CROSS LITE
Fork: CC Carbon disc 15
Derailleur Front: Shimano 105 D
Derailleur Rear: Shimano 105 SS
Shifters: Shimano 105
Brake Lever: On Bar Lever additional
Brakes: Tektro Spyre disc 160
Chainwheel: FSA Gossamer 46-36 Mega
Bbset: attached
Chain: FSA F11S
Hubs: Bearing Disc-15 Road Axle / Bearing Disc cassette
Rim: Merida comp 22 disc cross
Freewheel: Shimano CS-5800-11 11-28
Tires: Continental Cyclocross Race 35 fold
Handlebar Stem: MERIDA pro OS -5
Handlebar: MERIDA Road Pro Classic OS
Headset: Big Conoid S-bearing neck pro
Seat Post: MERIDA pro H SB15 27.2
Saddle: Merida Race 1
Pedal: NO

Buy Merida Cyclo Cross 500 Bike online at fatbirds

Technical Information
X-TAPER HEADTUBE
Externally butted headtube with a mighty 1.5“ steering bearing at the lower end and a weight-saving 1 1/8” steering bearing at the upper end; delivered with matching Taper Shaft fork. Results: Superb stiffness data and precise steering performance.
HFS - HYDRO FORMING SYSTEM
The mechanical TFS process works from the outside to the inside. In contrast, the complex Hydroforming concept shapes the frame by pushing hot oil under hydraulic high pressure from the inside to the outside. Material: Prolite 66 aluminium.
PROLITE 66 TRIPLE BUTTED ALUMINUM
MERIDA’s premium alloy represents extremely durable and light aluminium of high-end quality. Triple-butted wall thicknesses result not only in exciting frame designs: First of all, they offer an optimum Stiffness-to-Weight (STW) ratio.
SMOOTH-WELDING
Besides top functionality, MERIDA frames also have to offer a convincing visual appearance. The second welding process during Smooth Welding evens the connecting welding seam – an elaborate concept for a brilliant look without compromises to stability.
INTERNAL CABLE
Elaborately shaped frame designs with special inlets and outlets for internally routed brake and/or shifter cables. “Clean” in a double sense: The bike looks uncluttered while the cables are protected effectively from moisture and dirt.
FLEX-STAY
Road bikes and MTB hardtails lack a suspension system at the rear. In this way, they do not only reach their low weight but turn each pilot-provided watt into propulsion. Yet a rigid rearstay transmits any shocks directly to the rider as well – this affects the athlete’s performance potential. But not in the case of our “Flex Stay” seat and chain stays: Their special design absorbs surface bumps and reduces occurring vibrations.
CARBON FORK
Rigid carbon front fork, in case of some models realized as full-carbon version. MERIDA carbon forks delight with outstanding vibration damping as well as with superb braking and lateral stiffness. Reliable steering and braking performance in every situation.
C-S POST MOUNT DISC
“Chain Stay Post Mount Disc” – this technology is the result of three findings. First, a brake mount positioned within the frame triangle optimally protects the brake from external influences. Second, the caliper is supported by the chain stay and is therefore able to distribute the occurring physical forces in an ideal way. Third, internally routed cables can reach the brake neatly from the chain stay.
15-100 THRU-AXLE
Thru-axles at the front and/or rear wheel offer various advantages: besides their high torsional stiffness, they especially ensure easy wheel installation and also guarantee an always correct position of the brake rotor. Because in contrast to quick-release solutions, the position of the wheel is always 100 percent the same. MERIDA trusts in 12 mm thru-axles in the rear and 15 mm versions in the front.



Sizing Information
Frame Sizes 47cm 50cm 52cm 54cm 56cm 59cm
Top Tube 510 525 540 555 570 590
Seat Tube 470 500 520 540 560 590
Chain Stays 425 425 425 425 425 425
Head Tube Angle 70 70.5 71 72 72 72
Seat Tube Angle 75 75 74 74 73 73
Bottom Bracket Drop 65 65 65 65 65 65
Head Tube Length 110 130 145 160 175 195
Fork Length 395 395 395 395 395 395
Reach 370 379 379 389 389 403
Stack 523 545 561 579 593 612
Wheel Base 1005 1017 1018 1023 1028 1048
Stand Over Height 740 764 781 804 817 847
